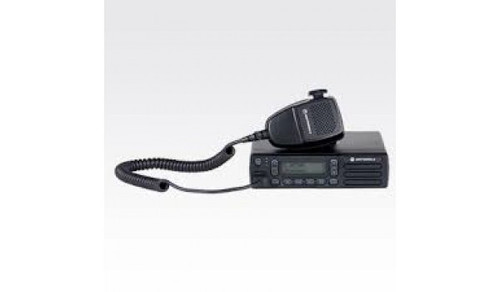

Motorola AAM01QPH9JA1AN 403-470 MHz

Motorola CM300 403-470MHz 99Ch 1-40 Watt AAM01QPH9JA1AN Analog or Digital

Radio hardware features:

• Up/Down Channel Selector Buttons
• 4 Programmable Buttons

Operator friendly controls and features include:

• Rotary On/OFF and Volume Control
• Large Textured PTT on Palm Microphone
• Rugged, Die-Cast Chassis with Polycarbonate Outer Casing
• Two Programmable Option Buttons

Motorola CM300
New Commercial Series Radio

Motorola – a name you know and trust. For more than 75 years, Motorola has been a leader in creating state-of-the-art wireless communications for people like you. The CM300 two-way radio upholds that superior standard. And the Motorola CM300 is backed up by a 2-year warranty on parts and labor. So when you select the CM300 portable, you’ll experience the same exceptional quality you’ve got to come to expect from all Motorola radio products.

Every business depends on clear communication to succeed. When it comes to two-way radio communication, you want your radios to have all the essential elements to communicate loud and clear. The Radius CM Series mobile radios from Motorola have been engineered to provide you with radios to meet your specific communication needs.

The CM300 is loaded with easy-to-operate program features and is an ideal radio for those users requiring multi-channel capability at a modest price point. This radio has Motorola’s legendary ruggedness and allows you to talk on either 25 or 12.5 kHz channel as your company gradually transitions completely to 12.5 kHz channel spacing.

Motorola CM300 Features

• 32 Channels
• Powerful Audio Quality
• Compact and Rugged
• Meets Military Standards and Motorola ALT
• 8 Character Alphanumeric Display
• Switchable 12.5/20/25 kHz
• Escalert
• Increases volume of un-answered alarm alert
• Voice-Operated Transmit
• Requires Voice-Activated Microphone
• Busy Channel Lockout
• High/Low Power Settings
• Local/Distance Mode
• 2 Programmable Buttons
• System Scan and Auto Scan
• Supports Up to 16 Scan Lists of Up to 16 Channels Each
• Single and Dual Priority Scan
• Frequently scans higher-priority channels
• Revert Scan
• Radio moves automatically to last landed scan channel when exiting scan mode
• Customizable Audio Indicator Tones
• Adjustable Backlit Intensity
• Quik Call II™ (Decode)
• MDC1200 PTT ID (Encode)

NOTES: - CM200/CM300 Mobiles are not compatible components with the GR Series Repeaters. - The following frequency is not allowed: 444.860

All Motorola CM300 models include:

Basic Model Includes
Compact Microphone with Transmit LED
Hang-Up Clip & 7 Ft. Coil Cord - (HMN3413)
Low Profile Mounting Bracket - (GLN7324)
Standard Power Cable (HKN4137
User Guide / Safety Manual
2- Year Warranty

Motorola CM300 Applications

The CM300 mobile can be used for a variety of applications.

Here are a few examples of some key industries:

Construction
Delivery Services
Manufacturing and Processing Facilities
Rural Emergency Services
Taxi and Limousine Services
Towing Services
Utility Facilities and Operations
