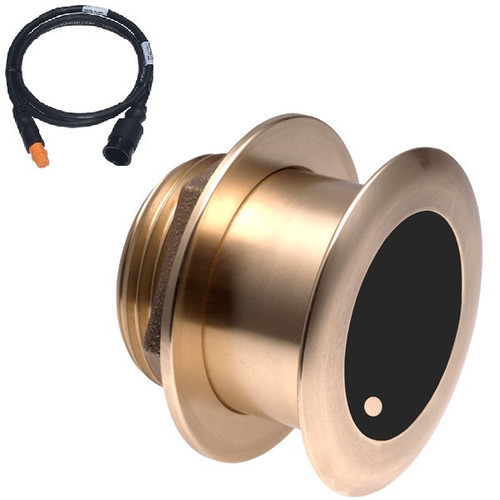

Airmar B175C-12-H-12G B175 BROADBAND CHIRP, GARMIN 12-PIN, DT
Write a Review
AIRMAR
Airmar B175C-12-H-12G B175 BROADBAND CHIRP, GARMIN 12-PIN, DT
- Brand
- AIRMAR
- SKU:
- B175C-12-H-12G
- Condition:
- New
Airmar B175C-12-H Thru Hull With 12-Pin Garmin MM Cable Product Description
1 kW
Airmarâs low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band delivers a narrow beamwidthâexcellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. Transmitting across 130 to 210 kHz, the B175H has up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and bottom detail.
Tilted Element⢠transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.
The B175H is available in three Tilted Element models:
- Fixed 20° tilted version for 16 to 24° hull deadrise angles
- Fixed 12° tilted version for 8 to 15° hull deadrise angles
- Fixed 0° tilted version for 0 to 7° hull deadrise angles
Airmar B175C High Frequency CHIRP Transducer with 12d Tilted Element and Garmin 12 pin M&M Chirp Cable - 1m
Model: B175-C-12-H-12G- HighCHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth
- 80 kHz of total bandwidth from one transducer
- Hull Type: Fiberglass or wood
- Depth & fast-response water-temperature sensor
- Bronze transducer housing
- Boat Size: Up to 11 m (36)
Rely on Airmars new broadband transducers for your ultimate fishing mission. Whether youre a commercial fisherman, charter captain, or tournament angler, theres a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000) with 5 to 10 times greater detail and resolution so precise its possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.
Thjis transducer terminates with Airmars Mix and Max connector, you can cut it off to connect to a sounder that does not require a connector.
Specifications| Hull Deadrise | 8° to 15° |
| Acoustic window | Urethane |
| Boat size | Up to 11 m (36) |
| Hull type | Fiberglass or wood |
| Frequency | 130-210 kHz |
What's in the Box:
- B175 High Frequency Transducer
- Garmin 12 pin M&M Chirp Cable - 1m
Airmar B175C high frequency CHIRP sensor with 12d tilt element and Garmin 12-pin M&M chirp cable-1m model: B175-C-12-H-12G high frequency-CHIRPS from 130 kHz to 210 kHz,...
Frequently Asked Questions (FAQ) About Airmar B175C-12-H Thru Hull With 12-Pin Garmin MM Cable
Who is the Airmar?How to describe Airmar B175C-12-H Thru Hull With 12-Pin Garmin MM Cable?
Which mix and match cable useful for this product?
What is the power rating of the product?
What is the transducer functions of the product?
In which country this product made in?
What is the frequency band of the product?
What's the Airmar B175C-12-H Thru Hull With 12-Pin Garmin MM Cable package dimensions and weight?
What is the sensor connector of the product?
How to mount or what is the mounting style of Airmar B175C-12-H Thru Hull With 12-Pin Garmin MM Cable?
Is this product single or dual frequency?
What is the tilt angle of the product?
What is the display connector of the product?
What is the common use place of the product?
What is the connector type of the product?
What is the length of cable?
What is the housing material of the product?
What is the max depth of the product?
What is the deadrise range of product?
What is the hole size of the product?
What is the high frequency beamwidth of the product?
What is the high frequency level of the product?
This product has tilted element?
Which hull material is proper for this product?
What is the usable shaft length of the product?
What is the max deadrise angle of the product?
What is the max deadrise of the product?
What is the manufacturer notes about Airmar B175C-12-H Thru Hull With 12-Pin Garmin MM Cable?
Who is the Airmar?
How to describe Airmar B175C-12-H Thru Hull With 12-Pin Garmin MM Cable?
1 kW
Airmarâs low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band delivers a narrow beamwidthâexcellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. Transmitting across 130 to 210 kHz, the B175H has up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and bottom detail.
Tilted Element⢠transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.
The B175H is available in three Tilted Element models:
- Fixed 20° tilted version for 16 to 24° hull deadrise angles
- Fixed 12° tilted version for 8 to 15° hull deadrise angles
- Fixed 0° tilted version for 0 to 7° hull deadrise angles
Which mix and match cable useful for this product?
What is the power rating of the product?
What is the transducer functions of the product?
In which country this product made in?
What is the frequency band of the product?
What's the Airmar B175C-12-H Thru Hull With 12-Pin Garmin MM Cable package dimensions and weight?
What is the sensor connector of the product?
How to mount or what is the mounting style of Airmar B175C-12-H Thru Hull With 12-Pin Garmin MM Cable?
Is this product single or dual frequency?
What is the tilt angle of the product?
What is the display connector of the product?
What is the common use place of the product?
What is the connector type of the product?
What is the length of cable?
What is the housing material of the product?
What is the max depth of the product?
What is the deadrise range of product?
What is the hole size of the product?
What is the high frequency beamwidth of the product?
What is the high frequency level of the product?
This product has tilted element?
Which hull material is proper for this product?
What is the usable shaft length of the product?
What is the max deadrise angle of the product?
What is the max deadrise of the product?
What is the manufacturer notes about Airmar B175C-12-H Thru Hull With 12-Pin Garmin MM Cable?
1 kW
Airmarâs low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band delivers a narrow beamwidthâexcellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. Transmitting across 130 to 210 kHz, the B175H has up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and bottom detail.
Tilted Element⢠transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.
The B175H is available in three Tilted Element models:
- Fixed 20° tilted version for 16 to 24° hull deadrise angles
- Fixed 12° tilted version for 8 to 15° hull deadrise angles
- Fixed 0° tilted version for 0 to 7° hull deadrise angles
Buy with the best price Airmar B175C-12-H Thru Hull With 12-Pin Garmin MM Cable for only $1299 from NVN Marine! Same day shipping before 3pm.
Airmar B175C-12-H Thru Hull With 12-Pin Garmin MM Cable Technical Specifications
| Type: |
Marine Navigation & Instruments | Transducers |
|---|---|
| Vendor: |
Airmar |
| Weight: |
12.5 lb |
| User Guide: |
Download PDF |
| Product Manual: |
Download PDF |
| Product Brochure: |
Download PDF |
| Product Installation: |
Download PDF |
