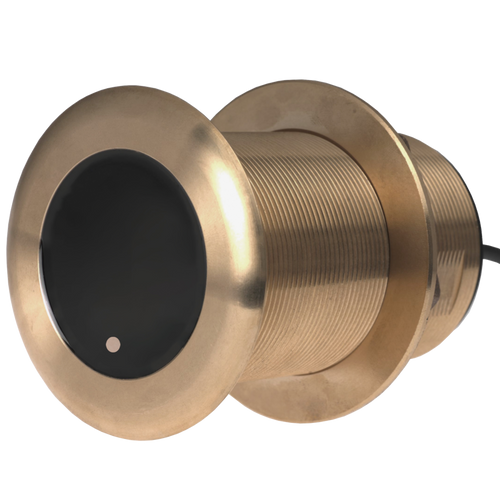

Airmar B175C-12-H-BB B175 BROADBAND CHIRP, SI-TEX 8-PIN, DT
Write a Review
AIRMAR
Airmar B175C-12-H-BB B175 BROADBAND CHIRP, SI-TEX 8-PIN, DT
- Brand
- AIRMAR
- SKU:
- B175C-12-H-BB
- Condition:
- New
Airmar B175C-12-H-BB - B175 High Chirp, 1kW, 12° Tilt, Si-Tex 8-Pin, DT Product Description
1 kW
Airmars low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band delivers a narrow beamwidthexcellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. Transmitting across 130 to 210 kHz, the B175H has up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and bottom detail.
Tilted Element transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.
The B175H is available in three Tilted Element models:
- Fixed 20° tilted version for 16 to 24° hull deadrise angles
- Fixed 12° tilted version for 8 to 15° hull deadrise angles
- Fixed 0° tilted version for 0 to 7° hull deadrise angles
1 kW
Airmars low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band delivers a narrow beamwidthexcellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. Transmitting across 130 to 210 kHz, the B175H has up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and bottom detail.
Tilted Element transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.
The B175H is available in three Tilted Element models:
- Fixed 20° tilted version for 16 to 24° hull deadrise angles
- Fixed 12° tilted version for 8 to 15° hull deadrise angles
- Fixed 0° tilted version for 0 to 7° hull deadrise angles
- Depth and fast-response water-temperature sensing
- 1 kW of power with a maximum depth of 304 m (1000')
- High frequency: 130 to 210 kHz
- 10° to 6° beamwidth
- 80 kHz of total bandwidth from one transducer
- High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
- Low-profile, thru-hull housing yields good display resolution at speed when installed properly
- Recommended for stepped, planing, or displacement hull
- Bronze housing for use in a fiberglass or wood hull
- Also available in a stainless steel housing (SS175H) for use in all hull materials
- Patented Xducer ID® technology
Frequently Asked Questions (FAQ) About Airmar B175C-12-H-BB - B175 High Chirp, 1kW, 12° Tilt, Si-Tex 8-Pin, DT
Who is the Airmar?How to describe Airmar B175C-12-H-BB - B175 High Chirp, 1kW, 12° Tilt, Si-Tex 8-Pin, DT?
Which mix and match cable useful for this product?
What is the power rating of the product?
What is the transducer functions of the product?
In which country this product made in?
What is the frequency band of the product?
What's the Airmar B175C-12-H-BB - B175 High Chirp, 1kW, 12° Tilt, Si-Tex 8-Pin, DT package dimensions and weight?
What is the sensor connector of the product?
How to mount or what is the mounting style of Airmar B175C-12-H-BB - B175 High Chirp, 1kW, 12° Tilt, Si-Tex 8-Pin, DT?
Is this product single or dual frequency?
What is the tilt angle of the product?
What is the display connector of the product?
What is the common use place of the product?
What is the connector type of the product?
What is the length of cable?
What is the housing material of the product?
What is the max depth of the product?
What is the deadrise range of product?
What is the hole size of the product?
What is the high frequency beamwidth of the product?
What is the high frequency level of the product?
This product has tilted element?
Which hull material is proper for this product?
What is the usable shaft length of the product?
What is the max deadrise angle of the product?
What is the max deadrise of the product?
What is the manufacturer notes about Airmar B175C-12-H-BB - B175 High Chirp, 1kW, 12° Tilt, Si-Tex 8-Pin, DT?
Who is the Airmar?
How to describe Airmar B175C-12-H-BB - B175 High Chirp, 1kW, 12° Tilt, Si-Tex 8-Pin, DT?
1 kW
Airmars low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band delivers a narrow beamwidthexcellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. Transmitting across 130 to 210 kHz, the B175H has up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and bottom detail.
Tilted Element transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.
The B175H is available in three Tilted Element models:
- Fixed 20° tilted version for 16 to 24° hull deadrise angles
- Fixed 12° tilted version for 8 to 15° hull deadrise angles
- Fixed 0° tilted version for 0 to 7° hull deadrise angles
Which mix and match cable useful for this product?
What is the power rating of the product?
What is the transducer functions of the product?
In which country this product made in?
What is the frequency band of the product?
What's the Airmar B175C-12-H-BB - B175 High Chirp, 1kW, 12° Tilt, Si-Tex 8-Pin, DT package dimensions and weight?
What is the sensor connector of the product?
How to mount or what is the mounting style of Airmar B175C-12-H-BB - B175 High Chirp, 1kW, 12° Tilt, Si-Tex 8-Pin, DT?
Is this product single or dual frequency?
What is the tilt angle of the product?
What is the display connector of the product?
What is the common use place of the product?
What is the connector type of the product?
What is the length of cable?
What is the housing material of the product?
What is the max depth of the product?
What is the deadrise range of product?
What is the hole size of the product?
What is the high frequency beamwidth of the product?
What is the high frequency level of the product?
This product has tilted element?
Which hull material is proper for this product?
What is the usable shaft length of the product?
What is the max deadrise angle of the product?
What is the max deadrise of the product?
What is the manufacturer notes about Airmar B175C-12-H-BB - B175 High Chirp, 1kW, 12° Tilt, Si-Tex 8-Pin, DT?
1 kW
Airmars low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band delivers a narrow beamwidthexcellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. Transmitting across 130 to 210 kHz, the B175H has up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and bottom detail.
Tilted Element transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.
The B175H is available in three Tilted Element models:
- Fixed 20° tilted version for 16 to 24° hull deadrise angles
- Fixed 12° tilted version for 8 to 15° hull deadrise angles
- Fixed 0° tilted version for 0 to 7° hull deadrise angles
Save $253 when you buy the Airmar B175C-12-H-BB - B175 High Chirp, 1kW, 12° Tilt, Si-Tex 8-Pin, DT for only $846 from NVN Marine! Same day free shipping before 3pm.
Airmar B175C-12-H-BB - B175 High Chirp, 1kW, 12° Tilt, Si-Tex 8-Pin, DT Technical Specifications
| Type: |
Marine Navigation & Instruments | Transducers |
|---|---|
| Vendor: |
Airmar |
| Weight: |
10.71 lb |
