Airmar B175C-20-H-11R B175 BROADBAND CHIRP, RAYMARINE 11-PIN
Write a Review
AIRMAR

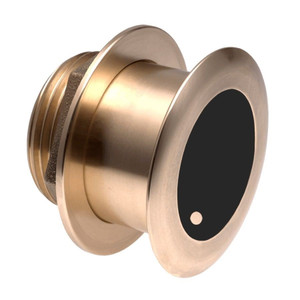

Airmar B175C-20-H-11R B175 BROADBAND CHIRP, RAYMARINE 11-PIN
- Brand
- AIRMAR
- SKU:
- B175C-20-H-11R
- Condition:
- New
Airmar B175C-20-H 20d Tilt With Raymarine 11-Pin MM Cable Product Description
1 kW
Airmarâs low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band delivers a narrow beamwidthâexcellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. Transmitting across 130 to 210 kHz, the B175H has up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and bottom detail.
Tilted Element⢠transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.
The B175H is available in three Tilted Element models:
- Fixed 20° tilted version for 16 to 24° hull deadrise angles
- Fixed 12° tilted version for 8 to 15° hull deadrise angles
- Fixed 0° tilted version for 0 to 7° hull deadrise angles
Airmar B175 CHIRP High Frequency 20d Tilted Element With Raymarine 11-Pin Mix-N-Match Cable
Model: B175C-20-H-11R- Depth & fast-response water-temperature sensor
- HighCHIRPS from 150 kHz to 210 kHz
- Boat Size: 8 m (25) and above
- 80 kHz of total bandwidth from one transducer
- Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
- Hull Type: Fiberglass or wood
The transducers ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairing
Flush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducers active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.
High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feet
Requires additionals cable; A80328 when used as a single
A102146 when used as a pair.
| Deadrise | 16-25° |
| Acoustic Window | Urethane |
| Power rating | 1 kW @ 1% duty cycle |
| Frequency | 130 to 210 kHz-A (Broadband) |
| Beam | 10° to 6° beam |
| Max Depth | 1000ft |

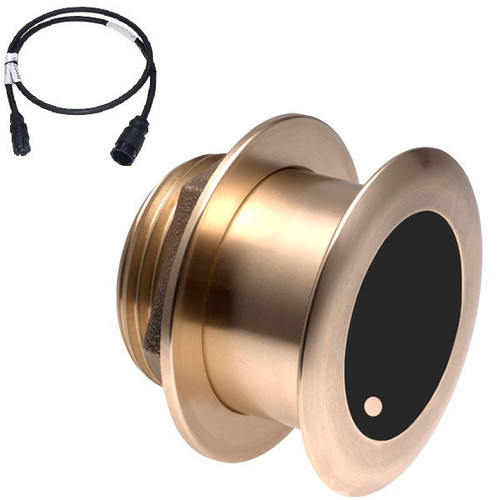

What's in the Box:
- B175C-20-H-MM Transducer
- MMC-11R Mix-N-Match Cable
Airmar B175 CHIRP high frequency 20d tilting element, with Raymarine 11-pin hybrid N-type matching cable Model: B175C-20-H-11R depth and fast response water temperature sensor highââ¬âCHIRPS from 150 kHz to 210 kHz Ship length: 8 m (25') ) And above 80...
Frequently Asked Questions (FAQ) About Airmar B175C-20-H 20d Tilt With Raymarine 11-Pin MM Cable
Who is the Airmar?How to describe Airmar B175C-20-H 20d Tilt With Raymarine 11-Pin MM Cable?
Which mix and match cable useful for this product?
What is the power rating of the product?
What is the transducer functions of the product?
In which country this product made in?
What is the frequency band of the product?
What's the Airmar B175C-20-H 20d Tilt With Raymarine 11-Pin MM Cable package dimensions and weight?
What is the sensor connector of the product?
How to mount or what is the mounting style of Airmar B175C-20-H 20d Tilt With Raymarine 11-Pin MM Cable?
Is this product single or dual frequency?
What is the tilt angle of the product?
What is the display connector of the product?
What is the common use place of the product?
What is the connector type of the product?
What is the length of cable?
What is the housing material of the product?
What is the max depth of the product?
What is the deadrise range of product?
What is the hole size of the product?
What is the high frequency beamwidth of the product?
What is the high frequency level of the product?
This product has tilted element?
Which hull material is proper for this product?
What is the usable shaft length of the product?
What is the max deadrise angle of the product?
What is the max deadrise of the product?
What is the manufacturer notes about Airmar B175C-20-H 20d Tilt With Raymarine 11-Pin MM Cable?
Who is the Airmar?
How to describe Airmar B175C-20-H 20d Tilt With Raymarine 11-Pin MM Cable?
1 kW
Airmarâs low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band delivers a narrow beamwidthâexcellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. Transmitting across 130 to 210 kHz, the B175H has up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and bottom detail.
Tilted Element⢠transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.
The B175H is available in three Tilted Element models:
- Fixed 20° tilted version for 16 to 24° hull deadrise angles
- Fixed 12° tilted version for 8 to 15° hull deadrise angles
- Fixed 0° tilted version for 0 to 7° hull deadrise angles
Which mix and match cable useful for this product?
What is the power rating of the product?
What is the transducer functions of the product?
In which country this product made in?
What is the frequency band of the product?
What's the Airmar B175C-20-H 20d Tilt With Raymarine 11-Pin MM Cable package dimensions and weight?
What is the sensor connector of the product?
How to mount or what is the mounting style of Airmar B175C-20-H 20d Tilt With Raymarine 11-Pin MM Cable?
Is this product single or dual frequency?
What is the tilt angle of the product?
What is the display connector of the product?
What is the common use place of the product?
What is the connector type of the product?
What is the length of cable?
What is the housing material of the product?
What is the max depth of the product?
What is the deadrise range of product?
What is the hole size of the product?
What is the high frequency beamwidth of the product?
What is the high frequency level of the product?
This product has tilted element?
Which hull material is proper for this product?
What is the usable shaft length of the product?
What is the max deadrise angle of the product?
What is the max deadrise of the product?
What is the manufacturer notes about Airmar B175C-20-H 20d Tilt With Raymarine 11-Pin MM Cable?
1 kW
Airmarâs low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band delivers a narrow beamwidthâexcellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. Transmitting across 130 to 210 kHz, the B175H has up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and bottom detail.
Tilted Element⢠transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.
The B175H is available in three Tilted Element models:
- Fixed 20° tilted version for 16 to 24° hull deadrise angles
- Fixed 12° tilted version for 8 to 15° hull deadrise angles
- Fixed 0° tilted version for 0 to 7° hull deadrise angles
Save $94 when you buy the Airmar B175C-20-H 20d Tilt With Raymarine 11-Pin MM Cable for only $1006 from NVN Marine! Same day shipping before 3pm.
Airmar B175C-20-H 20d Tilt With Raymarine 11-Pin MM Cable Technical Specifications
| Type: |
Marine Navigation & Instruments | Transducers |
|---|---|
| Vendor: |
Airmar |
| Weight: |
15.0 lb |
| User Guide: |
Download PDF |
| Product Manual: |
Download PDF |
| Product Brochure: |
Download PDF |
| Product Installation: |
Download PDF |
