Airmar B175C-20-MW-11R B175 BROADBAND CHIRP, RAYMARINE 11-PIN

Airmar B175C-20-MW 20d Tilt Medium CHIRP Ultra Wide with Raymarine 11-Pin MMC Product Description

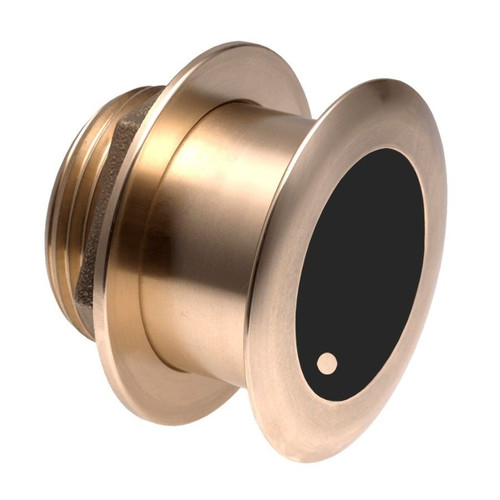

Airmar B175MW Medium Ultra-Wide 20 deg Tilted Element™ Thru-Hull - With Raymarine 11-Pin Mix-N-Match Cable

• Fixed 20° tilted version for 16° to 24° hull deadrise
• Depth and fast-response water-temperature sensor
• 1 kW with depth tracking down to 400 m (1,300#39;)
• Medium frequency: 60-100 kHz
• 57° to 73° beamwidth (port/starboard)
• 16° average fore/aft
• 40 kHz of total bandwidth from one transducer
• Medium frequency for superior mid-depth performance and excellent fish-target separation
• Bronze housing for use on stepped, planing or displacement hull
• Low-profile, thru-hull housing yields good resolution at speed when installed properly
• Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

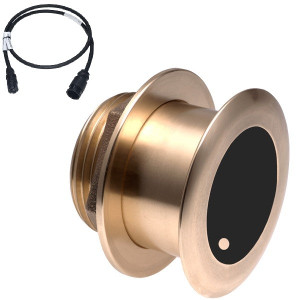

• B175C-20-MW-MM 20d Tilt Medium CHIRP Ultra Wide
• MMC-11R Raymarine 11-Pin Mix-n-Match Cable

Airmar B175C-20-MW 20d Tilt Medium CHIRP Ultra Wide with Raymarine 11-Pin MMC Technical Specifications
