Airmar B265C-LM-MM B265 BROADBAND CHIRP MM TRANSDUCER, DT
Write a Review
AIRMAR
Airmar B265C-LM-MM B265 BROADBAND CHIRP MM TRANSDUCER, DT
- Brand
- AIRMAR
- SKU:
- B265C-LM-MM
- Condition:
- New

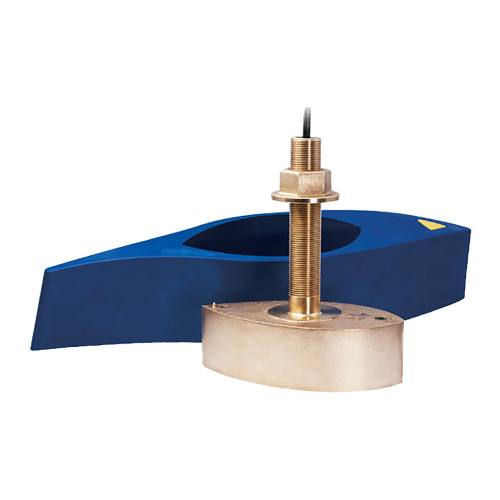

Airmar B265LM Bronze Chirp Thru-Hull Transducer 1kW w/Fairing Block - Mix & Match Cable Needed Product Description
1 kW
The B265LM, Chirp-ready thru-hull is a perfect, mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW, powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.
The low-frequency band, operating between 42 and 65 kHz, provides deep-water performance down to 914 m (3000'). It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.
The included, High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).
B265LM Bronze Chirp Thru-Hull Transducer 1kW with Fairing Block - Mix & Match Cable Needed
The B265LM Chirp-ready transducer is the perfect mid-range to deep performing transducer in the Airmar line. Covering a huge bandwidth, the frequency performance on many species delivers crisp, clear target separation. This 1 kW powerhouse transducer delivers extreme target detail, bottom discrimination, and bait and game fish separation at all depths. The included High-Performance Fairing will give you broadband performance at speeds over 30 knots (34 MPH). We will leave it up to you to discover the rest of the secrets that can be unlocked with tunable, Chirp Broadband Transducer Technology.
LM Model - Low Frequency 42-65 kHz/Medium Frequency 85-135 kHz
Features:
- Depth & fast-response water-temperature sensor
- 1kW power for excellent deep to mid-depth performance
- Low frequency: 42 kHz to 65 kHz
- 25° to 16° beamwidth (port-starboard)
- Maximum depth 3000' (914 m)
- Medium frequency: 85 kHz to 135 kHz
- 16° to 11° beamwidth
- Maximum depth 1500' (457M)
- 73 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths
- Bronze transducer housing with High-Performance Fairing for improved high speed performance
- Recommended boat size: 8 m (25') and above
- Hull Type: Fiberglass or wood
- Models also available in Transom Mount (TM265LM), Pocket Mount (PM265LM), Cavity Mount (CM265LM), In-Hull (M265LM)
- Exclusive Xducer ID® technology
Specifications:
- Hull Deadrise: Up to 20° with fairing
- Acoustic Window: Urethane
- Weight: 7.3 kg (16 lb)
Airmar B265C-LH Bronze TH Medium and Low Model: 41-482-2-01 Ultrasonic speed and temperature in a shell without moving parts provide advanced filtering and sampling rate for...
Airmar B265LM Bronze Chirp Thru-Hull Transducer 1kW w/Fairing Block - Mix & Match Cable Needed Related Products
Airmar Garmin 12-Pin Mix & Match Cable f/Chirp TransducersAirmar No Connector Mix & Match CHIRP Cable - 1M
Airmar Garmin 8-Pin Mix & Match Chirp Cable - 1M
Airmar Navico 9-Pin Mix & Match Chirp Cable - 1M
Airmar Humminbird 14-Pin Mix & Match Chirp Cable - 1M
Sika Sikaflex® 291 Fast Cure - White - 3oz Tube
Sika Sikaflex® 291 Fast Cure - Black - 3oz Tube
Frequently Asked Questions (FAQ) About Airmar B265LM Bronze Chirp Thru-Hull Transducer 1kW w/Fairing Block - Mix & Match Cable Needed
Who is the Airmar?How to describe Airmar B265LM Bronze Chirp Thru-Hull Transducer 1kW w/Fairing Block - Mix & Match Cable Needed?
Which mix and match cable useful for this product?
What is the power rating of the product?
What is the transducer functions of the product?
In which country this product made in?
What is the frequency band of the product?
What's the Airmar B265LM Bronze Chirp Thru-Hull Transducer 1kW w/Fairing Block - Mix & Match Cable Needed package dimensions and weight?
What is the sensor connector of the product?
How to mount or what is the mounting style of Airmar B265LM Bronze Chirp Thru-Hull Transducer 1kW w/Fairing Block - Mix & Match Cable Needed?
Is this product single or dual frequency?
What is the connector type of the product?
What is the length of cable?
What is the display connector of the product?
What is the common use place of the product?
What is the housing material of the product?
Is this product supporting CHIRP and what's the type?
What is the max depth of the product?
What is the deadrise range of product?
What is the low frequency level of the product?
What is the low frequency beamwidth of the product?
This product has tilted element?
Which hull material is proper for this product?
What is the medium frequency level of the product?
What is the medium frequency beamwidth of the product?
What is the usable shaft length of the product?
What is the max deadrise of the product?
What is the max deadrise angle of the product?
What is the manufacturer notes about Airmar B265LM Bronze Chirp Thru-Hull Transducer 1kW w/Fairing Block - Mix & Match Cable Needed?
Who is the Airmar?
How to describe Airmar B265LM Bronze Chirp Thru-Hull Transducer 1kW w/Fairing Block - Mix & Match Cable Needed?
1 kW
The B265LM, Chirp-ready thru-hull is a perfect, mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW, powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.
The low-frequency band, operating between 42 and 65 kHz, provides deep-water performance down to 914 m (3000'). It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.
The included, High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).
Which mix and match cable useful for this product?
What is the power rating of the product?
What is the transducer functions of the product?
In which country this product made in?
What is the frequency band of the product?
What's the Airmar B265LM Bronze Chirp Thru-Hull Transducer 1kW w/Fairing Block - Mix & Match Cable Needed package dimensions and weight?
What is the sensor connector of the product?
How to mount or what is the mounting style of Airmar B265LM Bronze Chirp Thru-Hull Transducer 1kW w/Fairing Block - Mix & Match Cable Needed?
Is this product single or dual frequency?
What is the connector type of the product?
What is the length of cable?
What is the display connector of the product?
What is the common use place of the product?
What is the housing material of the product?
Is this product supporting CHIRP and what's the type?
What is the max depth of the product?
What is the deadrise range of product?
What is the low frequency level of the product?
What is the low frequency beamwidth of the product?
This product has tilted element?
Which hull material is proper for this product?
What is the medium frequency level of the product?
What is the medium frequency beamwidth of the product?
What is the usable shaft length of the product?
What is the max deadrise of the product?
What is the max deadrise angle of the product?
What is the manufacturer notes about Airmar B265LM Bronze Chirp Thru-Hull Transducer 1kW w/Fairing Block - Mix & Match Cable Needed?
1 kW
The B265LM, Chirp-ready thru-hull is a perfect, mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW, powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.
The low-frequency band, operating between 42 and 65 kHz, provides deep-water performance down to 914 m (3000'). It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.
The included, High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).
Buy with the best price Airmar B265LM Bronze Chirp Thru-Hull Transducer 1kW w/Fairing Block - Mix & Match Cable Needed for only $2064 from NVN Marine! Same day free shipping before 3pm.
Airmar B265LM Bronze Chirp Thru-Hull Transducer 1kW w/Fairing Block - Mix & Match Cable Needed Technical Specifications
| Type: |
Marine Navigation & Instruments | Transducers |
|---|---|
| Vendor: |
Airmar |
| Weight: |
23.0 lb |
| Mounting Style: |
Thru-Hull |
| Chirp: |
Low/Medium |
| User Guide: |
Download PDF |
| Product Manual: |
Download PDF |
| Product Brochure: |
Download PDF |
| Product Installation: |
Download PDF |
