Airmar B285C-HW-9N B285W SINGLEBAND CHIRP, NAVICO 9-PIN, DT
Write a Review
AIRMAR
Airmar B285C-HW-9N B285W SINGLEBAND CHIRP, NAVICO 9-PIN, DT
- Brand
- AIRMAR
- SKU:
- B285C-HW-9N
- Condition:
- New

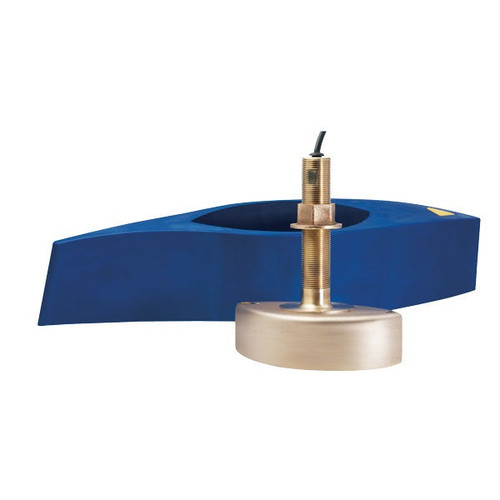

Airmar B285C-HW Thru-Hull With Navico 9-Pin Mix-N-Match Product Description
1 kW
Get more coverage under your boat with Airmarâs unique, wide-beam, high-frequency, Chirp-ready B285HW. The high-frequency band operates across a range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band delivers superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most, high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500').
The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).
Airmar B285C High Wide 1Kw CHIRP Bronze Thru Hull with Navico 9-Pin Mix-N-Match Cable
Model: B285C-HW-9N- Depth & temperature
- Bronze housing
- Exclusive Xducer ID® technology
Get more coverage under the boat with Airmar's wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° Beamwidth, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the single band, wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers
A unique property of the high frequency transducers is that the Beamwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.
Specifications| CHIRP Frequency | 150-250kHz |
| Beam width | Constant 25° |
| Maximum depth | 500' |
What's in the Box:
- B285C
- High Speed Fairing Block
- MMC-9N
Airmar B285C height and width 1Kw CHIRP bronze straight-through hull, with Navico 9-pin hybrid N-type matching cable Model: B285C-HW-9N depth and temperature bronze shell exclusive XducerIDî technology uses Airmar's wide...
Frequently Asked Questions (FAQ) About Airmar B285C-HW Thru-Hull With Navico 9-Pin Mix-N-Match
Who is the Airmar?How to describe Airmar B285C-HW Thru-Hull With Navico 9-Pin Mix-N-Match?
Which mix and match cable useful for this product?
What is the power rating of the product?
What is the transducer functions of the product?
In which country this product made in?
What is the frequency band of the product?
What's the Airmar B285C-HW Thru-Hull With Navico 9-Pin Mix-N-Match package dimensions and weight?
What is the sensor connector of the product?
How to mount or what is the mounting style of Airmar B285C-HW Thru-Hull With Navico 9-Pin Mix-N-Match?
Is this product single or dual frequency?
What is the connector type of the product?
What is the length of cable?
What is the display connector of the product?
What is the common use place of the product?
What is the housing material of the product?
What is the max depth of the product?
What is the deadrise range of product?
What is the hole size of the product?
What is the high frequency level of the product?
What is the high-wide beamwidth of the product?
This product has tilted element?
Which hull material is proper for this product?
What is the usable shaft length of the product?
What is the max deadrise of the product?
What is the max deadrise angle of the product?
What is the manufacturer notes about Airmar B285C-HW Thru-Hull With Navico 9-Pin Mix-N-Match?
Who is the Airmar?
How to describe Airmar B285C-HW Thru-Hull With Navico 9-Pin Mix-N-Match?
1 kW
Get more coverage under your boat with Airmarâs unique, wide-beam, high-frequency, Chirp-ready B285HW. The high-frequency band operates across a range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band delivers superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most, high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500').
The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).
Which mix and match cable useful for this product?
What is the power rating of the product?
What is the transducer functions of the product?
In which country this product made in?
What is the frequency band of the product?
What's the Airmar B285C-HW Thru-Hull With Navico 9-Pin Mix-N-Match package dimensions and weight?
What is the sensor connector of the product?
How to mount or what is the mounting style of Airmar B285C-HW Thru-Hull With Navico 9-Pin Mix-N-Match?
Is this product single or dual frequency?
What is the connector type of the product?
What is the length of cable?
What is the display connector of the product?
What is the common use place of the product?
What is the housing material of the product?
What is the max depth of the product?
What is the deadrise range of product?
What is the hole size of the product?
What is the high frequency level of the product?
What is the high-wide beamwidth of the product?
This product has tilted element?
Which hull material is proper for this product?
What is the usable shaft length of the product?
What is the max deadrise of the product?
What is the max deadrise angle of the product?
What is the manufacturer notes about Airmar B285C-HW Thru-Hull With Navico 9-Pin Mix-N-Match?
1 kW
Get more coverage under your boat with Airmarâs unique, wide-beam, high-frequency, Chirp-ready B285HW. The high-frequency band operates across a range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band delivers superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most, high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500').
The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).
Buy with the best price Airmar B285C-HW Thru-Hull With Navico 9-Pin Mix-N-Match for only $1699 from NVN Marine! Same day free shipping before 3pm.
Airmar B285C-HW Thru-Hull With Navico 9-Pin Mix-N-Match Technical Specifications
| Type: |
Marine Navigation & Instruments | Transducers |
|---|---|
| Vendor: |
Airmar |
| Weight: |
8.0 lb |
| User Guide: |
Download PDF |
| Product Manual: |
Download PDF |
| Product Brochure: |
Download PDF |
| Product Installation: |
Download PDF |
