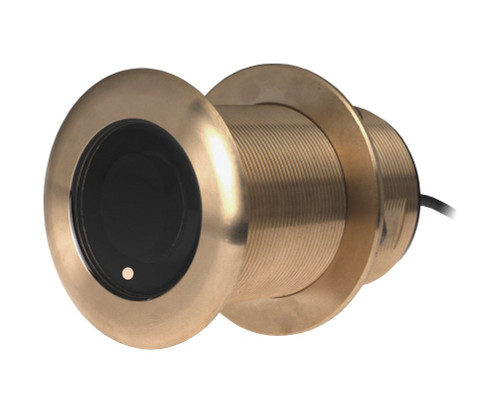

Airmar B75C-20-M-12G B75 BROADBAND CHIRP, GARMIN 12-PIN, DT

Airmar B75C-20-M 20d Tilt With Garmin 12-Pin MM Cable Product Description

Airmar B75C 20° Tited Element Medium CHIRP Bronze Thru Hull with 12-Pin Garmin Mix-N-Match Cable

Model: B75C-20-M-12G

• Depth & fast-response water-temperature sensor
• 50 kHz of total bandwidth from one transducer

Rely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.

Provides the ability to sound deeper than the high frequency, along with better resolution than the low frequency

Wider beam than the high frequency, achieving more coverage under the boat and greater opportunity to find fish

Clear images at higher boat speeds

Specifications

CHIRP Frequency	80 kHz to 130 kHz
Beamwidth	24° to 16°
Element tilt	20°
Deadrise	16° to 24°
Maximum depth	900ft

What's in the Box:

• B75C-20-M-MM
• MMC-12G

Airmar B75C 20° tilt element medium CHIRP bronze straight-through hull, with 12-pin Garmin hybrid N-type matching cable Model: B75C-20-M-12GDepth and fast response water temperature sensor The total bandwidth of one sensor is 50 kHz, relying on Airmar’s new product. .

Airmar B75C-20-M 20d Tilt With Garmin 12-Pin MM Cable Technical Specifications

Type:	Marine Navigation & Instruments | Transducers
Vendor:	Airmar
Weight:	5.0 lb
