Airmar B765C-LM-MM B765 BROADBAND CHIRP MM TRANSDUCER, DT
Write a Review
AIRMAR
Airmar B765C-LM-MM B765 BROADBAND CHIRP MM TRANSDUCER, DT
- Brand
- AIRMAR
- SKU:
- B765C-LM-MM
- Condition:
- New
Airmar B765C-LM Bronze CHIRP Transducer - Needs Mix & Match Cable - Does NOT Work w/Simrad & Lowrance Product Description
300 / 600 W*
It's a thru-hull, Chirp transducer perfectly suited for smaller fishing boats. The B765LM gives the performance of the larger transducers but in a compact package. A great combination of low and medium-frequency bands provides a wide range of depth capability and fish finding. The low-frequency band, operating from 40 to 75 kHz, provide excellent depth penetration. Meanwhile the medium frequency range of 80 to 130 kHz excels at detailed bottom structure and tight-holding fish targets in mid-depth.
The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).
B765C-LM Bronze CHIRP Transducer - Needs Mix & Match Cable - Does NOT Work with Simrad & Lowrance
Rely on Airmars broadband transducers for your ultimate fishing mission. Whether youre a commercial fisherman, charter captain, or tournament angler, theres a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000) with 5 to 10 times greater detail and resolution so precise its possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 85 kHz of total bandwidth in just one installation, saving customers time and money.
A Thru-Hull Chirp transducer perfectly suited for smaller fishing boats, the B765L/M Chirps across the following bandwidths:*L/M -Low Frequency 40-75 kHz, Medium Frequency 80-130 kHz
* Please Note: The low frequency operating band is 300 W. The medium frequency operating band is 600 W.
Features
- Depth & fast-response water-temperature sensor
- LowCHIRPS from 40 kHz to 75 kHz, 32° to 21° beamwidth
- MediumCHIRPS from 80 kHz to 130 kHz, 24° to 16° beamwidth
- 85 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidth
- All the advantages of the larger Thru-Hull Chirp transducers, suitable for smaller boats
- Bronze transducer housing with High-Performance Fairing
- Boat Size: Up to 9 m (30) and above
- Hull Type: Fiberglass or wood
- Exclusive Xducer ID® technology
- Hull Deadrise: Up to 24° with a fairing
- Acoustic Window: Urethane
- Weight: 2.5 kg (5.5 lb)
B765C-LM bronze CHIRP sensor-requires mixing and matching cables-can not be used with Simrad & Lowrance to rely on Airmar's broadband sensor to complete the final fishing task. ...
Airmar B765C-LM Bronze CHIRP Transducer - Needs Mix & Match Cable - Does NOT Work w/Simrad & Lowrance Related Products
Sika Sikaflex® 291 LOT Slow Cure Adhesive & Sealant 10.3oz(300ml) Cartridge - BlackSika Sikaflex® 291 LOT Slow Cure Adhesive & Sealant 10.3oz(300ml) Cartridge - Mahogany
Sudbury Elastomeric Marine Sealant - 10oz Cartridge - White
Sudbury Elastomeric Marine Sealant - 10oz Cartridge - Black
Sudbury Elastomeric Marine Sealant - 10oz Cartridge - Clear
Sudbury Elastomeric 3 oz (89ml) Sealant Tube - White
Sudbury Elastomeric 3 oz (89ml) Sealant Tube - Clear
Sudbury Elastometric 3 oz (89ml) Sealant Tube - Black
BoatLIFE Life-Calk Sealant Tube - Non-Shrinking - 2.8 FL. Oz - White
BoatLIFE Life-Calk Sealant Tube - Non-Shrinking - 2.8 FL. Oz - Black
Frequently Asked Questions (FAQ) About Airmar B765C-LM Bronze CHIRP Transducer - Needs Mix & Match Cable - Does NOT Work w/Simrad & Lowrance
Who is the Airmar?How to describe Airmar B765C-LM Bronze CHIRP Transducer - Needs Mix & Match Cable - Does NOT Work w/Simrad & Lowrance?
Which mix and match cable useful for this product?
What is the power rating of the product?
What is the transducer functions of the product?
In which country this product made in?
What is the frequency band of the product?
How many pins exists in the connector of the product?
What's the Airmar B765C-LM Bronze CHIRP Transducer - Needs Mix & Match Cable - Does NOT Work w/Simrad & Lowrance package dimensions and weight?
What is the sensor connector of the product?
Speed feature included to the product?
This product can read the temprature?
How to mount or what is the mounting style of Airmar B765C-LM Bronze CHIRP Transducer - Needs Mix & Match Cable - Does NOT Work w/Simrad & Lowrance?
Is this product single or dual frequency?
What is the length of cable (feet)?
What is the length of cable?
What is the display connector of the product?
What is the connector type of the product?
What is the imagining type of the product?
What is the common use place of the product?
What is the housing material of the product?
Is this product supporting CHIRP and what's the type?
What is the max depth of the product?
What is the deadrise range of product?
What is the hole size of the product?
What is the low frequency level of the product?
What is the low frequency beamwidth of the product?
This product has tilted element?
Which hull material is proper for this product?
What is the medium frequency level of the product?
What is the medium frequency beamwidth of the product?
What is the usable shaft length of the product?
What is the max deadrise of the product?
What is the max deadrise angle of the product?
What is the manufacturer notes about Airmar B765C-LM Bronze CHIRP Transducer - Needs Mix & Match Cable - Does NOT Work w/Simrad & Lowrance?
Who is the Airmar?
How to describe Airmar B765C-LM Bronze CHIRP Transducer - Needs Mix & Match Cable - Does NOT Work w/Simrad & Lowrance?
300 / 600 W*
It's a thru-hull, Chirp transducer perfectly suited for smaller fishing boats. The B765LM gives the performance of the larger transducers but in a compact package. A great combination of low and medium-frequency bands provides a wide range of depth capability and fish finding. The low-frequency band, operating from 40 to 75 kHz, provide excellent depth penetration. Meanwhile the medium frequency range of 80 to 130 kHz excels at detailed bottom structure and tight-holding fish targets in mid-depth.
The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).
Which mix and match cable useful for this product?
What is the power rating of the product?
What is the transducer functions of the product?
In which country this product made in?
What is the frequency band of the product?
How many pins exists in the connector of the product?
What's the Airmar B765C-LM Bronze CHIRP Transducer - Needs Mix & Match Cable - Does NOT Work w/Simrad & Lowrance package dimensions and weight?
What is the sensor connector of the product?
Speed feature included to the product?
This product can read the temprature?
How to mount or what is the mounting style of Airmar B765C-LM Bronze CHIRP Transducer - Needs Mix & Match Cable - Does NOT Work w/Simrad & Lowrance?
Is this product single or dual frequency?
What is the length of cable (feet)?
What is the length of cable?
What is the display connector of the product?
What is the connector type of the product?
What is the imagining type of the product?
What is the common use place of the product?
What is the housing material of the product?
Is this product supporting CHIRP and what's the type?
What is the max depth of the product?
What is the deadrise range of product?
What is the hole size of the product?
What is the low frequency level of the product?
What is the low frequency beamwidth of the product?
This product has tilted element?
Which hull material is proper for this product?
What is the medium frequency level of the product?
What is the medium frequency beamwidth of the product?
What is the usable shaft length of the product?
What is the max deadrise of the product?
What is the max deadrise angle of the product?
What is the manufacturer notes about Airmar B765C-LM Bronze CHIRP Transducer - Needs Mix & Match Cable - Does NOT Work w/Simrad & Lowrance?
300 / 600 W*
It's a thru-hull, Chirp transducer perfectly suited for smaller fishing boats. The B765LM gives the performance of the larger transducers but in a compact package. A great combination of low and medium-frequency bands provides a wide range of depth capability and fish finding. The low-frequency band, operating from 40 to 75 kHz, provide excellent depth penetration. Meanwhile the medium frequency range of 80 to 130 kHz excels at detailed bottom structure and tight-holding fish targets in mid-depth.
The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).
Buy with the best price Airmar B765C-LM Bronze CHIRP Transducer - Needs Mix & Match Cable - Does NOT Work w/Simrad & Lowrance for only $1364 from NVN Marine! Same day shipping before 3pm.
Airmar B765C-LM Bronze CHIRP Transducer - Needs Mix & Match Cable - Does NOT Work w/Simrad & Lowrance Technical Specifications
| Type: |
Marine Navigation & Instruments | Transducers |
|---|---|
| Vendor: |
Airmar |
| Weight: |
7.7 lb |
| Temperature: |
Yes |
| Speed Included: |
No |
| Pins: |
Bare Wires |
| Mounting Style: |
Thru-Hull |
| Imagining: |
Standard |
| Chirp: |
Low/Medium |
| Cable Length (Feet): |
40' |
| User Guide: |
Download PDF |
| Product Manual: |
Download PDF |
| Product Brochure: |
Download PDF |
| Product Installation: |
Download PDF |
0 Reviews Hide Reviews Show Reviews
AIRMAR
Airmar B765C-LH-MM B765 BROADBAND CHIRP MM TRANSDUCER, DT
AIRMAR
Airmar B765C-LM-0 B765 BROADBAND CHIRP, NO CONNECTOR
AIRMAR
Airmar B265C-LM-MM B265 BROADBAND CHIRP MM TRANSDUCER, DT
AIRMAR

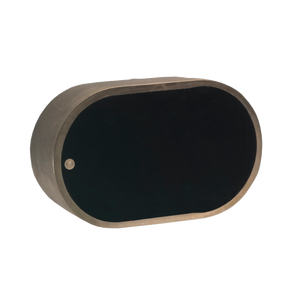

Airmar PM265C-LM-MM PM265 BROADBAND CHIRP MM TRANSDUCER DT
