Airmar B785C-M-BL B785 SINGLEBAND CHIRP, NAVICO BL, DT
Write a Review
AIRMAR
Airmar B785C-M-BL B785 SINGLEBAND CHIRP, NAVICO BL, DT
- Brand
- AIRMAR
- SKU:
- B785C-M-BL
- Condition:
- New

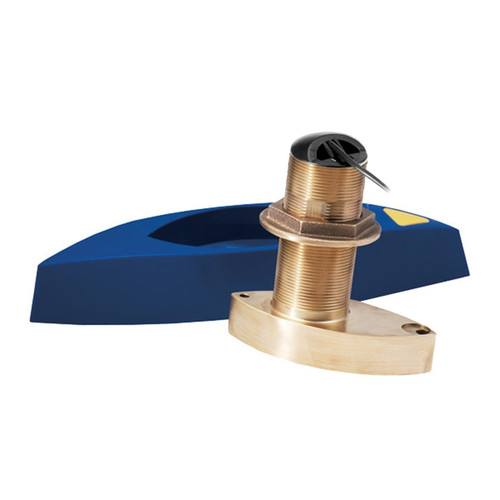

Airmar B785C Bronze Triducer Medium CHIRP With Navico BL 7-Pin Product Description
600 W
The B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900') along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.
The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).
Airmar B785C Triducer Medium CHIRP with Navico 7-Pin Mix-N-Match Cable
Model: B785C-M-BL- Depth & fast-responDepth and fast-response water-temperature sensing
- 600 W of power
- Medium frequency: 80 to 130 kHz
- 24° to 16° beamwidth
- Maximum depth of 274 m (900')
- 50 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
- Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation
- Recommended for use on planing or displacement hull
- Bronze housing with High-performance Fairing for optimal performance at higher speeds
- Patented Xducer ID® technology
The B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900') along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.
The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).
Specifications| Cable-Length | 9 m (30ft) |
| Acoustic Window | Urethane |
| Connector | Airmar 12-Pin (MMC) |
| Deadrise Range | Up to 24° with fairing |
| Display Connector | Navico 7-Pin |
| Frequency Band | Medium 80-130 kHz |
| Hole Size | 51 mm (2in) |
| Housing Material | Bronze |
| Max Depth | 274 m (900ft) |
| Medium Frequency Beamwidth | 24°-16° |
| Power Rating | 600 W |
| Single or Dual Frequency | CHIRP-Ready Single-Band |
| Usable Shaft Length | 121 mm (4.75"") |
What's in the Box:
- B785C-M-MM Triducer
- Fairing Block
- Anti-rotation Bolt
- MMC-BL cable
- Depth and fast-response water-temperature sensing
- 600 W of power
- Medium frequency: 80 to 130 kHz
- 24° to 16° beamwidth
- Maximum depth of 274 m (900')
- 50 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
- Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation
- Recommended for use on planing or displacement hull
- Bronze housing with High-performance Fairing for optimal performance at higher speeds
- Also available in a low-profile, thru-hull (B75M) mount
- Patented Xducer ID technology
Airmar B785C Bronze Triducer Medium CHIRP With Navico BL 7-Pin Technical Specifications
| Type: |
Marine Navigation & Instruments | Transducers |
|---|---|
| Vendor: |
Airmar |
| Weight: |
7.0 lb |
| Acoustic Window: |
Urethane |
| Cable-Length: |
10 m (33') |
| Common Use: |
Leisure/Yachting, Fishing |
| Connector: |
Lowrance 7-Pin |
| Country of Origin: |
USA |
| Deadrise Range: |
Up to 25° with fairing |
| Display Connector: |
BL |
| Frequency Band: |
Medium |
| Hole Size: |
51 mm (2") |
| Housing Material: |
Bronze |
| Hull Material: |
Fiberglass or wood |
| Max Deadrise: |
Up to 24° with fairing |
| Max Deadrise Angle: |
24° |
| Max Depth: |
274 m (900') |
| Max Vessel LOA: |
Up to 9 m (30') |
| Medium Frequency: |
80-130 kHz |
| Medium Frequency Beamwidth: |
24°-16° |
| Mix and Match Series: |
12-Pin Chirp |
| Mounting Style: |
Thru-Hull with Fairing |
| Power Rating: |
600 W |
| Sensor Connector: |
MMC |
| Single or Dual Frequency: |
CHIRP-Ready Single-Band |
| Tilted Element: |
No |
| Transducer Functions: |
Depth, Temperature |
| Usable Shaft Length: |
121 mm (4.75") |
| Weight: |
2.5 kg (5.5 lb.) |
| User Guide: |
Download PDF |
| Product Manual: |
Download PDF |
| Product Brochure: |
Download PDF |
| Product Installation: |
Download PDF |
