Airmar M265C-LM-21HB M265 BROADBAND CHIRP, HUMMINBIRD 21-PIN
Write a Review
AIRMAR
Airmar M265C-LM-21HB M265 BROADBAND CHIRP, HUMMINBIRD 21-PIN
- Brand
- AIRMAR
- SKU:
- M265C-LM-21HB
- Condition:
- New
Airmar M265C-LM-21HB 1kw Low Medium CHIRP With Humminbird 21-Pin Cable Product Description
1 kW
The M265LM Chirp-ready in hull is a perfect mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.
The low-frequency band of 42 to 65 kHz provides deep-water performance down to 914 m (3000').It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band, operating between 85 and 135 kHz, is excellent for identifying targets suspended close to the bottom on structure and within the water column.
The transducer is installed in the included tank which is cut to the boat's deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The M265LM is a popular choice for customers not wanting to drill a hole in their hull and for trailered or lifted boats.
Airmar M265C Depth Only Low Medium In-Hull Transducer with Humminbird 21-in Mix--N-Match Cable
Model: M265C-LM-21HB- Depth only
- 1 kW of power for great, deep to mid-depth performance
- Low frequency: 42 kHz to 65 kHz
- Medium frequency: 85 kHz to 135 kHz
- 73 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths
- Plastic transducer housing and mounting tank
- Patented Xducer ID® technology
The M265LM Chirp-ready in hull is a perfect mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.
The low-frequency band of 42 to 65 kHz provides deep-water performance down to 914 m (3000').It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band, operating between 85 and 135 kHz, is excellent for identifying targets suspended close to the bottom on structure and within the water column.
The transducer is installed in the included tank which is cut to the boats deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The M265LM is a popular choice for customers not wanting to drill a hole in their hull and for trailered or lifted boats.
Specifications| Acoustic Window | Urethane |
| Cable-Length | 9 m (30') |
| Connector | Airmar 12-Pin (MMC) |
| Deadrise Range | 0° to 22° |
| Display Connector | MMC-21HB Humminbird 21-Pin Cable |
| Frequency Band | Low-Medium |
| Housing Material | Plastic |
| Hull Material | Solid fiberglass only |
| Low Frequency | 42-65 kHz |
| Low Frequency Beamwidth | 25°-16° |
| Max Deadrise | Accommodates a deadrise angle up to 30° with the longest side of the tank installed parallel to the centerline (keel) of the hull |
| Max Depth | Low frequency- 914 m (3000'), Medium frequency- 457 m (1500') |
| Max Vessel LOA | 11 m (36') and above |
| Medium Frequency | 85-135 kHz |
| Medium Frequency Beamwidth | 16°-11° |
| Mounting Style | In-Hull |
| Power Rating | 1 kW |
| Single or Dual Frequency | CHIRP-Ready Dual-Band |
| Transducer Functions | Depth |
| Dimensions | 8.19in H x 8.71in L x 6.02in W |
What's in the Box:
- M265C-LM-MM
- MMC-21HB Humminbird 21-Pin Cable
- Depth only
- 1 kW of power for great, deep to mid-depth performance
- Low frequency: 42 kHz to 65 kHz
- 25° to 16° beamwidth
- Maximum depth of 914 m (3000')
- Medium frequency: 85 kHz to 135 kHz
- 16° to 11° beamwidth
- Maximum depth of 457 m (1500')
- 73 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths
- Plastic transducer housing and mounting tank
- Also available as transom (TM265LM), thru-hull (B265LM), cavity/welded-tank (CM265LM), pocket (PM265LM) mounts
- Patented Xducer ID technology
Airmar M265C-LM-21HB 1kw Low Medium CHIRP With Humminbird 21-Pin Cable Technical Specifications
| Type: |
Marine Navigation & Instruments | Transducers |
|---|---|
| Vendor: |
Airmar |
| Weight: |
15.2 lb |
| Acoustic Window: |
Urethane |
| Cable-Length: |
10 m (33') |
| Common Use: |
Fishing, Commercial Fishing |
| Connector: |
Humminbird 21-Pin |
| Country of Origin: |
USA |
| Deadrise Range: |
0° to 22° |
| Display Connector: |
21HB |
| Frequency Band: |
Low-Medium |
| Housing Material: |
Plastic |
| Hull Material: |
Solid fiberglass only |
| Low Frequency: |
42-65 kHz |
| Low Frequency Beamwidth: |
25°-16° |
| Max Deadrise: |
Accommodates a deadrise angle up to 30° with the longest side of the tank installed parallel to the centerline (keel) of the hull |
| Max Deadrise Angle: |
30° |
| Max Depth: |
Low frequency- 914 m (3000'), Medium frequency- 457 m (1500') |
| Max Vessel LOA: |
11 m (36') and above |
| Medium Frequency: |
85-135 kHz |
| Medium Frequency Beamwidth: |
16°-11° |
| Mix and Match Series: |
12-Pin Chirp |
| Mounting Style: |
In-Hull |
| Power Rating: |
1 kW |
| Sensor Connector: |
MMC |
| Single or Dual Frequency: |
CHIRP-Ready Dual-Band |
| Tilted Element: |
No |
| Transducer Functions: |
Depth |
| Weight: |
6.2 kg (13.5 lb.) |
| User Guide: |
Download PDF |
| Product Manual: |
Download PDF |
| Product Brochure: |
Download PDF |
| Product Installation: |
Download PDF |
0 Reviews Hide Reviews Show Reviews
AIRMAR

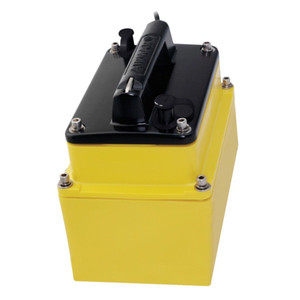

Airmar M265C-LM-11R M265 BROADBAND CHIRP, RAYMARINE 11-PIN
