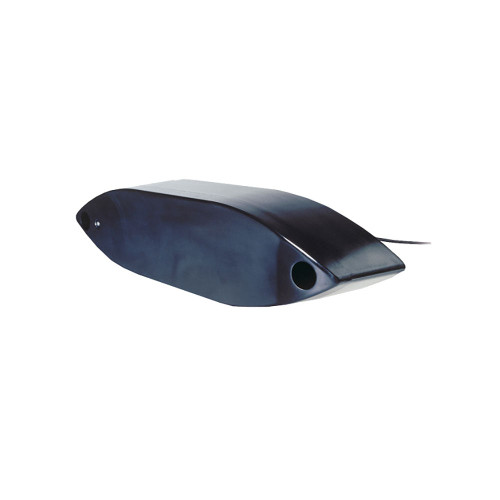

Airmar R409C-LWM R409 ULTRA WIDE LOWMED CHIRP, NO CONN DT

Airmar R409C-LWM R409 ULTRA WIDE LOWMED CHIRP, NO CONN DT

Write a Review
$5,999.00
Brand
SKU:
R409C-LWM
Condition:
New
Adding to cart… The item has been added
Add to Wish List

Airmar R409C-LWM Wide-Beam Chrip Transducer - Low/Wide/Medium - Bare Wire Product Description

Today's top billfish-tournament captains are calling the R409LWM their “go to” transducer for seeking out targets and pinpointing them in deep water. This ultra-wide transducer features a 40° beamwidth for an amazing amount of fish-finding coverage under the boat. Combining the low-frequency range of 40 to 60 kHz with a medium-frequency range of 80 to 130 kHz, this tournament-series transducer reveals more fish in the water column than ever before.

Captains are combining this transducer with a PM275LHW or a B175HW for a combined package covering low to high frequencies with both wide and narrow-beams.

Note: 33-541-01 – Stainless Steel Stuffing Tube is included.



R409C-LWM Wide-Beam Chrip Transducer - Low/Wide/Medium - Bare Wire

Outfish the competition with AIRMAR’s new tournament series Ultra Wide Beam
Chirp transducers. Now, get even MORE coverage under the boat. These Ultra Wide transducers offer a 40 degree beamwidth. Combining a low-frequency range of 40 to 60 kHz with a medium-frequency range of 80 to 130 kHz, this tournament series reveals more fish in the water column than ever before and is being reported by captains as the best transducer option. Don’t miss the fish—install this transducer for your next tournament season. You’ll be impressed with the results on your Chirp display!

Features

  • CHIRPs across the following bandwidths:
    • Low Frequency 40 to 60 kHz, 40° Constant Beamwidth
    • Medium Frequency 80 to 130 kHz, 13° to 8° Beamwidth
  • Depth & fast response water-temperature sensor
  • Thru-Hull
  • 2kW
  • Urethane housing
  • Hull Type: Fiberglass only
  • Exclusive Xducer ID® technology
  • Hull Deadrise: 0° to 25°
  • Acoustic Window: Epoxy/urethane
  • Weight: 15.1 kg (33.3 lb)


Does the detail surpass AIRMAR's competition? The new championship series ultra-wide beam chirp transducer. Now, get more protection under the ship. These ultra-wide transducers provide a beam width of 40 degrees. This competition series combines a low frequency range of 40 to 60 kHz with an intermediate frequency range of 80 to 130 kHz, revealing more fish in the waters than ever before, and was reported by the captain as the best transducer choice. Don't miss your fish for the next game season to install this transducer. The results you see on the Chirp display will impress you! Read the product manual for CHIRP with the following bandwidths: low frequency 40 to 60 kHz, 40 constant beam width, intermediate frequency 80 to 130 kHz, 13 to 8 beam width depth and fast response water temperature sensor through the hull 2kW polyurethane shell hull type: fiberglass only specification hull hollow Load: 0 to 25 Acoustic Window: Epoxy/Polyurethane Weight: 15.1 kg (33.3 lbs) Technical data View technical data page Transducer name: L: 40-60B M: 80-130B User guide 17-335-01.pdf 17-335-01-spanish.pdf 17-335-01-french.pdf



Frequently Asked Questions (FAQ) About Airmar R409C-LWM Wide-Beam Chrip Transducer - Low/Wide/Medium - Bare Wire

Who is the Airmar?
How to describe Airmar R409C-LWM Wide-Beam Chrip Transducer - Low/Wide/Medium - Bare Wire?
What is the power rating of the product?
What is the transducer functions of the product?
In which country this product made in?
How many pins exists in the connector of the product?
What is the frequency band of the product?
What's the Airmar R409C-LWM Wide-Beam Chrip Transducer - Low/Wide/Medium - Bare Wire package dimensions and weight?
Speed feature included to the product?
Is this product single or dual frequency?
This product can read the temprature?
How to mount or what is the mounting style of Airmar R409C-LWM Wide-Beam Chrip Transducer - Low/Wide/Medium - Bare Wire?
What is the imagining type of the product?
What is the common use place of the product?
What is the display connector of the product?
What is the length of cable?
What is the length of cable (feet)?
What is the connector type of the product?
What is the housing material of the product?
Is this product supporting CHIRP and what's the type?
What is the max depth of the product?
What is the deadrise range of product?
What is the low frequency level of the product?
What is the low frequency beamwidth of the product?
This product has tilted element?
Which hull type is proper for this product?
What is the medium frequency beamwidth of the product?
Which hull material is proper for this product?
What is the medium frequency level of the product?
What is the max deadrise angle of the product?
What is the max deadrise of the product?
What is the manufacturer notes about Airmar R409C-LWM Wide-Beam Chrip Transducer - Low/Wide/Medium - Bare Wire?

Who is the Airmar?

The right transducer enhances the performance of any echosounder, no matter what the power level or price. From small jet-ski sensors to large steel-tank transducers, Airmar's depth, speed, and temperature sensors are the most responsive in the market. Airmar prides themself on the little extras that are added to products that make a big difference in performance and customer satisfaction.

How to describe Airmar R409C-LWM Wide-Beam Chrip Transducer - Low/Wide/Medium - Bare Wire?

Today's top billfish-tournament captains are calling the R409LWM their “go to” transducer for seeking out targets and pinpointing them in deep water. This ultra-wide transducer features a 40° beamwidth for an amazing amount of fish-finding coverage under the boat. Combining the low-frequency range of 40 to 60 kHz with a medium-frequency range of 80 to 130 kHz, this tournament-series transducer reveals more fish in the water column than ever before.

Captains are combining this transducer with a PM275LHW or a B175HW for a combined package covering low to high frequencies with both wide and narrow-beams.

Note: 33-541-01 – Stainless Steel Stuffing Tube is included.

What is the power rating of the product?

2 kW

What is the transducer functions of the product?

Depth, Temperature

In which country this product made in?

USA

How many pins exists in the connector of the product?

Bare Wires

What is the frequency band of the product?

Low Wide-Medium

What's the Airmar R409C-LWM Wide-Beam Chrip Transducer - Low/Wide/Medium - Bare Wire package dimensions and weight?

14 (w) X 17 (h) X 27 (l) inches and the weight is: 43.8 lb.

Speed feature included to the product?

No

Is this product single or dual frequency?

CHIRP-Ready Dual-Band

This product can read the temprature?

Yes

How to mount or what is the mounting style of Airmar R409C-LWM Wide-Beam Chrip Transducer - Low/Wide/Medium - Bare Wire?

Thru-Hull

What is the imagining type of the product?

Standard

What is the common use place of the product?

Fishing, Commercial Fishing

What is the display connector of the product?

0

What is the length of cable?

15 m (49')

What is the length of cable (feet)?

50'

What is the connector type of the product?

Bare Wire

What is the housing material of the product?

Urethane

Is this product supporting CHIRP and what's the type?

Low/Medium

What is the max depth of the product?

Low frequency- 1219 m (4000'), Medium frequency- 914 m (3000')

What is the deadrise range of product?

Up to 25° with fairing

What is the low frequency level of the product?

40-60 kHz

What is the low frequency beamwidth of the product?

40°

This product has tilted element?

No

Which hull type is proper for this product?

Fiberglass only

What is the medium frequency beamwidth of the product?

13°-8°

Which hull material is proper for this product?

Compatible w/ all hull materials

What is the medium frequency level of the product?

80-130 kHz

What is the max deadrise angle of the product?

22°

What is the max deadrise of the product?

Up to 22°

What is the manufacturer notes about Airmar R409C-LWM Wide-Beam Chrip Transducer - Low/Wide/Medium - Bare Wire?

Today's top billfish-tournament captains are calling the R409LWM their “go to” transducer for seeking out targets and pinpointing them in deep water. This ultra-wide transducer features a 40° beamwidth for an amazing amount of fish-finding coverage under the boat. Combining the low-frequency range of 40 to 60 kHz with a medium-frequency range of 80 to 130 kHz, this tournament-series transducer reveals more fish in the water column than ever before.

Captains are combining this transducer with a PM275LHW or a B175HW for a combined package covering low to high frequencies with both wide and narrow-beams.

Note: 33-541-01 – Stainless Steel Stuffing Tube is included.



Buy with the best price Airmar R409C-LWM Wide-Beam Chrip Transducer - Low/Wide/Medium - Bare Wire for only $5999 from NVN Marine! Same day fast and free shipping before 3pm.

Airmar R409C-LWM Wide-Beam Chrip Transducer - Low/Wide/Medium - Bare Wire Technical Specifications

Type:

Marine Navigation & Instruments | Transducers
Vendor:

Airmar

Weight:

43.8 lb
Temperature:

Yes
Speed Included:

No
Pins:

Bare Wires
Imagining:

Standard
Chirp:

Low/Medium
Cable Length (Feet):

50'
Mounting Style:

Thru-Hull
User Guide:

Download PDF
Product Manual:

Download PDF
Product Brochure:

Download PDF
Product Installation:

Download PDF
Write a Review

0 Reviews Hide Reviews Show Reviews

Airmar PM411C-LWM PM411 ULTRA WIDE LOW MEDIUM CHIRP, DT

AIRMAR

Airmar PM411C-LWM PM411 ULTRA WIDE LOW MEDIUM CHIRP, DT

$5,999.99
Airmar PM411C-LWM Ultra Wide Pocket Mount 2kW Transducer - Low-Med - Depth/Temp - No Connector Product DescriptionPM411C-LWM Ultra Wide Pocket Mount 2kW Transducer - Low-Med - Depth/Temp - No...
Add to Cart The item has been added
Airmar R109C-LHW R109 WIDE BROADBAND CHIRP, NO CONN, DT

AIRMAR

Airmar R109C-LHW R109 WIDE BROADBAND CHIRP, NO CONN, DT

$4,199.00
Airmar R109LHW Chirp Thru-Hull Transducer - No Connector Product DescriptionR109LHW Low High Wide Chirp Thru-Hull Transducer with Fairing Block - No ConnectorGet more coverage under the boat with...
Add to Cart The item has been added

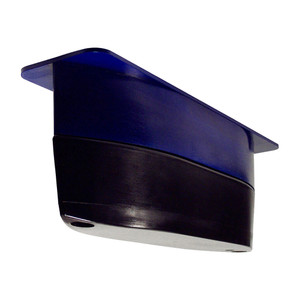

Airmar R509C-LHW R509 WIDE BROADBAND CHIRP, NO CONN, DT
