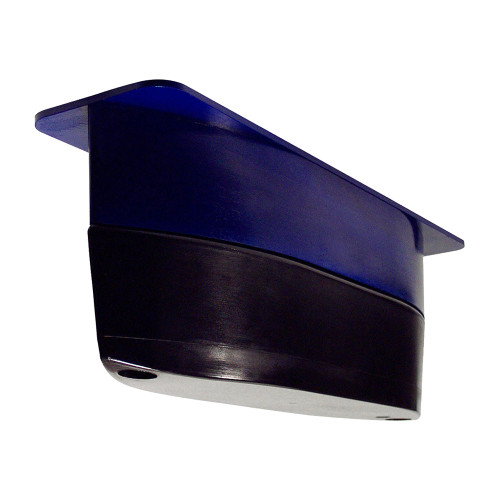

Airmar R509C-LHW R509 WIDE BROADBAND CHIRP, NO CONN, DT
Write a Review
AIRMAR
Airmar R509C-LHW R509 WIDE BROADBAND CHIRP, NO CONN, DT
- Brand
- AIRMAR
- SKU:
- R509C-LHW
- Condition:
- New
Airmar R509C-LHW CHIRP Transducer - No Connector Product Description
Get more coverage under your boat with Airmar's unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250Â kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam transducer options.
The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152Â m (500').
The low-frequency band is rated to 3 kW and delivers amazing deep-water performance to 3,048Â m (10,000'). Get the best of both worlds with Airmar's dual-frequency, Chirp-ready transducer with wide-beam coverage.
Note: 33-541-01 â Stainless Steel Stuffing Tube is included.
R509C-LHW CHIRP Transducer
Features:
- Fishing Profile: Commercial and recreational inshore and offshore fishing (deep-water canyon and sea-mount tracking)
- 25-Internal, Broadband Ceramic Elements
- Broadband / CHIRP / Spread Spectrum
- Operating frequencies:
- LowChirps from 28 kHz to 60 kHz
- HighChirps from 130 kHz to 210 kHz
- Beamwidth (Adjustable):
- Low23° to 9°
- High8° to 4°
- 10 m (33) cable, no connector
- Fast-response water-temperature sensor
- Boat size: 12 m (40) and above
- Hull Type: Fiberglass, wood, or metal
- Exclusive Transducer ID®
R509C-LHW CHIRP sensor function: fishing characteristics: commercial and recreational offshore and offshore fishing (deep water canyon and seamount tracking) 25-internal, broadband ceramic element broadband/CHIRP/spread spectrum Operating frequency: low frequency-chirp from 28 kHz to 60. ..
- Depth and fast-response water-temperature sensor
- 3 kW for superior deep-water performance from the low frequency
- 3 kW for superior deep-water performance from the low frequency
- 23° to 9° port-starboard beam
- 11° to 5° fore-aft beamw
- Maximum depth performance to 3,048 m (10,000')
- 1 kW high frequency: 150 to 250 kHz
- 25° constant beamwidth
- Maximum depth performance of 152 m (500')
- 132 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 38, 50, and 200 kHz plus everything else in the bandwidths
- High frequency provides superior shallow-water performance, bottom detail, and fish-target separation
- High wide beamwidth yields more coverage for detecting fish in the upper-water column
- Urethane housing with fairing for optimal performance
- Also available as a pocket/keel (CM599LHW) mount
- Exclusive Xducer ID technology
Airmar R509C-LHW CHIRP Transducer - No Connector Related Products
Sika Sikaflex® 291 Fast Cure - White - 3oz TubeSika Sikaflex® 291 Fast Cure - Black - 3oz Tube
Frequently Asked Questions (FAQ) About Airmar R509C-LHW CHIRP Transducer - No Connector
Who is the Airmar?How to describe Airmar R509C-LHW CHIRP Transducer - No Connector?
What is the power rating of the product?
What is the transducer functions of the product?
In which country this product made in?
What is the frequency band of the product?
What's the Airmar R509C-LHW CHIRP Transducer - No Connector package dimensions and weight?
Is this product single or dual frequency?
How to mount or what is the mounting style of Airmar R509C-LHW CHIRP Transducer - No Connector?
What is the common use place of the product?
What is the display connector of the product?
What is the length of cable?
What is the connector type of the product?
What is the housing material of the product?
Is this product supporting CHIRP and what's the type?
What is the max depth of the product?
What is the deadrise range of product?
What is the low frequency beamwidth of the product?
What is the low frequency level of the product?
What is the high frequency level of the product?
What is the high-wide beamwidth of the product?
This product has tilted element?
Which hull material is proper for this product?
What is the max deadrise angle of the product?
What is the max deadrise of the product?
What is the manufacturer notes about Airmar R509C-LHW CHIRP Transducer - No Connector?
Who is the Airmar?
How to describe Airmar R509C-LHW CHIRP Transducer - No Connector?
Get more coverage under your boat with Airmar's unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250Â kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam transducer options.
The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152Â m (500').
The low-frequency band is rated to 3 kW and delivers amazing deep-water performance to 3,048Â m (10,000'). Get the best of both worlds with Airmar's dual-frequency, Chirp-ready transducer with wide-beam coverage.
Note: 33-541-01 â Stainless Steel Stuffing Tube is included.
What is the power rating of the product?
What is the transducer functions of the product?
In which country this product made in?
What is the frequency band of the product?
What's the Airmar R509C-LHW CHIRP Transducer - No Connector package dimensions and weight?
Is this product single or dual frequency?
How to mount or what is the mounting style of Airmar R509C-LHW CHIRP Transducer - No Connector?
What is the common use place of the product?
What is the display connector of the product?
What is the length of cable?
What is the connector type of the product?
What is the housing material of the product?
Is this product supporting CHIRP and what's the type?
What is the max depth of the product?
What is the deadrise range of product?
What is the low frequency beamwidth of the product?
What is the low frequency level of the product?
What is the high frequency level of the product?
What is the high-wide beamwidth of the product?
This product has tilted element?
Which hull material is proper for this product?
What is the max deadrise angle of the product?
What is the max deadrise of the product?
What is the manufacturer notes about Airmar R509C-LHW CHIRP Transducer - No Connector?
Get more coverage under your boat with Airmar's unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250Â kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam transducer options.
The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152Â m (500').
The low-frequency band is rated to 3 kW and delivers amazing deep-water performance to 3,048Â m (10,000'). Get the best of both worlds with Airmar's dual-frequency, Chirp-ready transducer with wide-beam coverage.
Note: 33-541-01 â Stainless Steel Stuffing Tube is included.
Buy with the best price Airmar R509C-LHW CHIRP Transducer - No Connector for only $5899 from NVN Marine! Same day fast and free shipping before 3pm.
Airmar R509C-LHW CHIRP Transducer - No Connector Technical Specifications
| Type: |
Marine Navigation & Instruments | Transducers |
|---|---|
| Vendor: |
Airmar |
| Weight: |
58.0 lb |
| Chirp: |
Low/High Wide |
| User Guide: |
Download PDF |
| Product Manual: |
Download PDF |
| Product Brochure: |
Download PDF |
| Product Installation: |
Download PDF |
