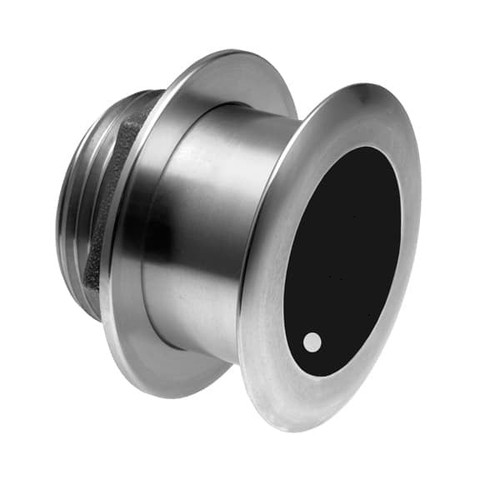

Airmar SS175C-12-H-HB SS175 BROADBAND CHIRP, HUMMINBIRD #9, DT

Airmar SS175C-12-H 12d Tilt High CHIRP with Humminbird 9-Pin Product Description

Airmar SS175C-12-H 12d Tilt

High CHIRP with Humminbird 9-Pin

Model: SS175C-12-H

• Depth and fast-response water-temperature sensor
• 1 kW with a maximum depth of 304 m (1000')
• High Frequency: 130 kHz to 210 kHz = 10° to 6° beamwidth
• 80 kHz of total bandwidth from one transducer
• High frequency provides superior shallow water performance, bottom detail and fish target separation
• Recommended boat size: Up to 11 m (36')
• Stainless steel housing is compatible with all hull types and materials
• Also available in a bronze housing (B175H) model
• Exclusive Xducer ID® technology

Airmar’s low profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The High frequency band delivers a narrow beamwidth, excellent for pinpointing fish holding tight to wrecks, reefs and other structures. High frequency also delivers amazing target separation on baitfish and schooling gamefish. The SS175H delivers up to 80 kHz of total bandwidth in just one installation, and provides superior shallow water performance and bottom detail.

Tilted element transducers have the element fixed at either a 20°, 12° or 0° angle within the transducer housing. Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.

Specifications

Weight	2.7 kg (6 lb)
Hull Deadrise	Up to 24°
Acoustic Window	Urethane
Hole Size	98 mm (3-7/8"")
One internal ceramic assembly

Equipped with Humminbird 9-pin Airmar SS175C-12-H 12d TiltHigh CHIRP model: SS175C-12-HDepth and fast response water temperature sensor 1 kW, maximum depth of 304 m (1000') high frequency: 130 kHz to 210 kHz =. ..

Airmar SS175C-12-H 12d Tilt High CHIRP with Humminbird 9-Pin Technical Specifications

Type:	Marine Navigation & Instruments | Transducers
Vendor:	Airmar
Weight:	11.0 lb
