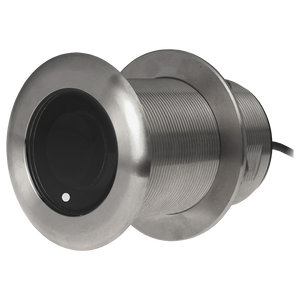

Airmar SS175C-20-HW-HB SS175 W BROADBAND CHIRP, HUMMINBIRD #9

Airmar SS175C-20-HW-HB - SS175 High Wide Chirp, 1kW, 20° Tilt, Humminbird #9, DT Product Description

Get more coverage under your boat with Airmars unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25 beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam, transducer options.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500).

Tilted Element transducers have the element fixed at either a 20, 12 or 0 angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise and orients the ceramic element horizontally to ensure maximum echo returns to the transducer.

The SS175HW transmits across the following bandwidth:

• High frequency 150 to 250 kHz

The SS175HW is available in three Tilted Element models:

• Fixed 20 tilted version for 16 to 24 hull deadrise
• Fixed 12 tilted version for 8 to 15 hull deadrise
• Fixed 0 tilted version for 0 to 7 hull deadrise

Airmar SS175C-20-HW-HB - SS175 High Wide Chirp, 1kW, 20° Tilt, Humminbird #9, DT Technical Specifications
