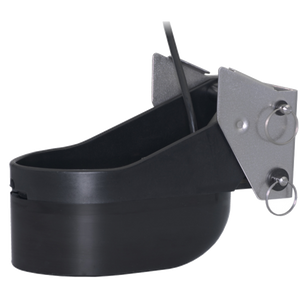

Airmar TM185C-HW-MM TM185W SINGLEBAND CHIRP MM TRANSDUCER
Write a Review
AIRMAR
Airmar TM185C-HW-MM TM185W SINGLEBAND CHIRP MM TRANSDUCER
- Brand
- AIRMAR
- SKU:
- TM185C-HW-MM
- Condition:
- New
Airmar TM185C-HW-MM CHIRP Transducer Transom Mount Needs Mix & Match Cable Product Description
1 kW
Get more coverage under your boat with Airmar's unique, wide-beam, high-frequency, Chirp-ready TM185HW. The high-frequency band operates across a range of 150 to 250 kHz and has a fixed 25° beam. The high-frequency band yields superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500').
TM185C-HW-MM CHIRP Transducer Transom Mount Needs Mix & Match Cable
Get more coverage under the boat with Airmar's wide beam Chirp. Offering a high frequency range of 150-250 kHz and a constant 25° Beamwidth, this transducer is truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using this wide beam transducer will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers.
A unique property of the high frequency transducers is that the Beamwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's wide beam format also creates crisper and larger return images on the display.
Features:
- CHIRPS across the following bandwidths: High-Frequency: 150-250 kHz
- 25° Constant Beamwidth
- 1kW (1,000 Watt) RMS Power
- Depth Range: 600'-800'
- Depth & fast-response water-temperature sensor
- Urethane housing and stainless steel kick-up mounting bracket
- Boat Size: 8 m to 12 m (25' to 40')
- Boat Type: Outboards; I/O
- Hull Type: Fiberglass, Wood, Metal
- Can retrofit to existing TM258, TM260, TM265, and TM275 bracket
- Needs Mix & Match Cable
Medium CHIRP-model with Garmin 8-Pin: TM185-HWDepth and fast response water temperature sensor 1 k-W, maximum depth of 152 m (500') High frequency: 150 k-Hz to 250 k...
Airmar TM185C-HW-MM CHIRP Transducer Transom Mount Needs Mix & Match Cable Related Products
Airmar Garmin 12-Pin Mix & Match Cable f/Chirp TransducersAirmar No Connector Mix & Match CHIRP Cable - 1M
Airmar Garmin 8-Pin Mix & Match Chirp Cable - 1M
Airmar Navico 7-Pin Blue Mix & Match Chirp Cable - 1M
Airmar Navico 9-Pin Mix & Match Chirp Cable - 1M
Airmar Humminbird 14-Pin Mix & Match Chirp Cable - 1M
Airmar Humminbird 9-Pin Mix & Match Chirp Cable - 1M
Airmar Furuno 10-Pin Mix & Match Cable f/High or Medium Frequency CHIRP Transducers
Airmar Furuno 10-Pin Mix & Match Cable f/Low Frequency CHIRP Transducers
Sea-Dog Stainless Steel Midget Vent - Medium
Frequently Asked Questions (FAQ) About Airmar TM185C-HW-MM CHIRP Transducer Transom Mount Needs Mix & Match Cable
Who is the Airmar?How to describe Airmar TM185C-HW-MM CHIRP Transducer Transom Mount Needs Mix & Match Cable?
What is the power rating of the product?
Which mix and match cable useful for this product?
What is the transducer functions of the product?
In which country this product made in?
How to define housing of Airmar TM185C-HW-MM CHIRP Transducer Transom Mount Needs Mix & Match Cable?
What is the frequency band of the product?
What's the Airmar TM185C-HW-MM CHIRP Transducer Transom Mount Needs Mix & Match Cable package dimensions and weight?
What is the sensor connector of the product?
Is this product single or dual frequency?
How to mount or what is the mounting style of Airmar TM185C-HW-MM CHIRP Transducer Transom Mount Needs Mix & Match Cable?
What is the common use place of the product?
What is the display connector of the product?
What is the length of cable?
What is the connector type of the product?
Is this product supporting CHIRP and what's the type?
What is the housing material of the product?
What is the max depth of the product?
What is the maximum boat length for this product?
What is the transom angle of the product?
What is the high-wide beamwidth of the product?
This product has tilted element?
What is the manufacturer notes about Airmar TM185C-HW-MM CHIRP Transducer Transom Mount Needs Mix & Match Cable?
Who is the Airmar?
How to describe Airmar TM185C-HW-MM CHIRP Transducer Transom Mount Needs Mix & Match Cable?
1 kW
Get more coverage under your boat with Airmar's unique, wide-beam, high-frequency, Chirp-ready TM185HW. The high-frequency band operates across a range of 150 to 250 kHz and has a fixed 25° beam. The high-frequency band yields superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500').
- Airmar's wide beam Chirp offers a high frequency range of 150-250 kHz and a constant 25° Beamwidth for better coverage under the boat.
- Offering a high frequency range of 150-250 kHz and a constant 25° Beamwidth, this transducer is truly one of the best on the market.
- The TM185C-HW-MM Chirp transducer is designed to be mounted on the transom, but it can also be mounted on the hull with an optional mix
- 150-250 kHz frequency range
- 25° Beamwidth
- Ideal for a wide array of fishing applications
What is the power rating of the product?
- Airmar's wide beam Chirp offers a high frequency range of 150-250 kHz and a constant 25° Beamwidth for better coverage under the boat.
- Offering a high frequency range of 150-250 kHz and a constant 25° Beamwidth, this transducer is truly one of the best on the market.
- The TM185C-HW-MM Chirp transducer is designed to be mounted on the transom, but it can also be mounted on the hull with an optional mix
- 150-250 kHz frequency range
- 25° Beamwidth
- Ideal for a wide array of fishing applications
- Airmar TM185C Transducer High Wide CHIRP With Mix-N-Match Plug Model: TM185-HW
- Depth and fast response water temperature sensor
- 1 kW with a maximum depth of 152 m (500')
- High Frequency: 150 kHz to 250 kHz - Constant 25& 176; beamwidth 100 kHz of
- High-speed water temperature sensor with a maximum depth of 152 m (500').
- High frequency: 150 kHz to 250 kHz - Constant 25& 176; beamwidth 100 kHz of beam width.
- Airmar TM185C Transducer High Wide CHIRP With Mix-N-Match Plug Model: TM185-HWDepth and fast-response water-temperature sensor 1 kW with a maximum depth of 152 m (500')
Which mix and match cable useful for this product?
What is the transducer functions of the product?
In which country this product made in?
How to define housing of Airmar TM185C-HW-MM CHIRP Transducer Transom Mount Needs Mix & Match Cable?
What is the frequency band of the product?
What's the Airmar TM185C-HW-MM CHIRP Transducer Transom Mount Needs Mix & Match Cable package dimensions and weight?
What is the sensor connector of the product?
Is this product single or dual frequency?
How to mount or what is the mounting style of Airmar TM185C-HW-MM CHIRP Transducer Transom Mount Needs Mix & Match Cable?
What is the common use place of the product?
What is the display connector of the product?
What is the length of cable?
What is the connector type of the product?
Is this product supporting CHIRP and what's the type?
What is the housing material of the product?
What is the max depth of the product?
What is the maximum boat length for this product?
What is the transom angle of the product?
What is the high-wide beamwidth of the product?
This product has tilted element?
What is the manufacturer notes about Airmar TM185C-HW-MM CHIRP Transducer Transom Mount Needs Mix & Match Cable?
1 kW
Get more coverage under your boat with Airmar's unique, wide-beam, high-frequency, Chirp-ready TM185HW. The high-frequency band operates across a range of 150 to 250 kHz and has a fixed 25° beam. The high-frequency band yields superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500').
Buy with the best price Airmar TM185C-HW-MM CHIRP Transducer Transom Mount Needs Mix & Match Cable for only $1364 from NVN Marine! Same day shipping before 3pm.
Airmar TM185C-HW-MM CHIRP Transducer Transom Mount Needs Mix & Match Cable Technical Specifications
| Type: |
Marine Navigation & Instruments | Transducers |
|---|---|
| Vendor: |
Airmar |
| Weight: |
8.07 lb |
| Chirp: |
High Wide |
| User Guide: |
Download PDF |
| Product Manual: |
Download PDF |
| Product Brochure: |
Download PDF |
| Product Installation: |
Download PDF |
