Airmar TM260-14HB TM260 W/V2 BRACKET, HUMMINBIRD 14-PIN
Write a Review
Write a Review
AIRMAR
Airmar TM260-14HB TM260 W/V2 BRACKET, HUMMINBIRD 14-PIN
$1,499.00
- Brand
- AIRMAR
- SKU:
- TM260-14HB
- Condition:
- New

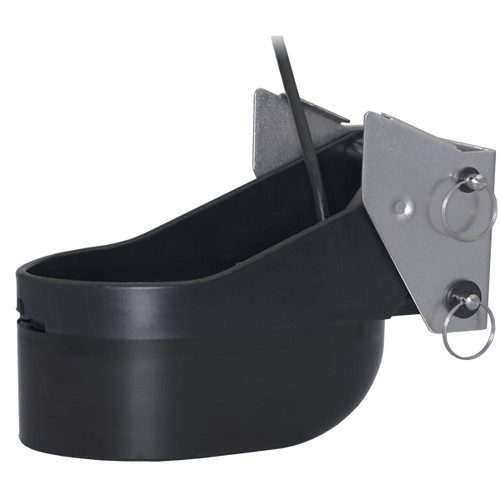

Airmar TM260 1kW Transom Mount Transducer w/Humminbird 14-Pin Plug Product Description
The TM260 comes with a rugged stainless-steel mounting bracket that is easy to install and has a streamlined shape. The performance of Airmar's "1 kW, 260 family" of transducers is legendary. The combination of power and sensitivity has made this the high-performing transducer of choice with conventional fishfinders. Operating at 50 and 200 kHz, the narrow, 6° beam at 200 kHz provides excellent target resolution and crisp images of fish holding tight to wrecks and reefs. The 50 kHz is excellent at deep-water detection, and the wide, 19° beam yields broad coverage under the boat.TM260 1kW Transom Mount Transducer w/Humminbird 14-Pin Plug
Powerful, Yet Sensitive! The TM260 takes the legendary performance of the B260 to your vessel's transom. This top-of-the-line, broadband, transom-mount brings crystal clear imaging to any of today's fishfinders. The large, 200 kHz element and the seven-element, 50 kHz array are excellent for bait and game fish separation along with detecting ground fish holding tight to the bottom. The TM260's rugged mounting bracket is easy-to-install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH).
Features:
- Top-of-the-line narrow-beam transom-mount
- Designed for bottom fishing
- Wide 19° beam at 50 kHz
- Narrow 6° beam at 200 kHz
- Interfaces to any 600W or 1 kW sounder
- Depth and fast-response water-temperature sensor
- Kick-up assembly locks in the "up" position and will not damage the transom
- Accommodates transom angles between 3° and 21°
- Urethane housing
- Boat Size: Up to 12M (40')
Specifications:
- Weight: 4 kg (8.9 lb)
- Hull Deadrise: Up to 28°
- Acoustic Window: Urethane
Powerful and sensitive! TM260 brings the legendary performance of the B260 to the stern of your ship. This top-of-the-line broadband beam mount makes crystal clear...
Airmar TM260 1kW Transom Mount Transducer w/Humminbird 14-Pin Plug Related Products
Sudbury Elastomeric Marine Sealant - 10oz Cartridge - WhiteSudbury Elastomeric Marine Sealant - 10oz Cartridge - Black
Sudbury Elastomeric Marine Sealant - 10oz Cartridge - Clear
Sudbury Elastomeric 3 oz (89ml) Sealant Tube - White
Sudbury Elastomeric 3 oz (89ml) Sealant Tube - Clear
Sudbury Elastometric 3 oz (89ml) Sealant Tube - Black
BoatLIFE Life-Calk Sealant Tube - Non-Shrinking - 2.8 FL. Oz - White
BoatLIFE Life-Calk Sealant Tube - Non-Shrinking - 2.8 FL. Oz - Black
BoatLIFE Life-Calk Sealant Tube - Non-Shrinking - 2.8 FL. Oz - Mahogany
BoatLIFE Life-Calk Cartridge - White
Frequently Asked Questions (FAQ) About Airmar TM260 1kW Transom Mount Transducer w/Humminbird 14-Pin Plug
Who is the Airmar?How to describe Airmar TM260 1kW Transom Mount Transducer w/Humminbird 14-Pin Plug?
What is the power rating of the product?
Which mix and match cable useful for this product?
What is the transducer functions of the product?
In which country this product made in?
How many pins exists in the connector of the product?
How to define housing of Airmar TM260 1kW Transom Mount Transducer w/Humminbird 14-Pin Plug?
What is the frequency band of the product?
What's the Airmar TM260 1kW Transom Mount Transducer w/Humminbird 14-Pin Plug package dimensions and weight?
What is the sensor connector of the product?
Is this product single or dual frequency?
This product can read the temprature?
How to mount or what is the mounting style of Airmar TM260 1kW Transom Mount Transducer w/Humminbird 14-Pin Plug?
What is the display connector of the product?
What is the common use place of the product?
What is the length of cable?
What is the connector type of the product?
What is the housing material of the product?
What is the max depth of the product?
What is the transom angle of the product?
This product has tilted element?
What is the max deadrise of the product?
What is the max deadrise angle of the product?
What is the manufacturer notes about Airmar TM260 1kW Transom Mount Transducer w/Humminbird 14-Pin Plug?
Who is the Airmar?
The right transducer enhances the performance of any echosounder, no matter what the power level or price. From small jet-ski sensors to large steel-tank transducers, Airmar's depth, speed, and temperature sensors are the most responsive in the market. Airmar prides themself on the little extras that are added to products that make a big difference in performance and customer satisfaction.
How to describe Airmar TM260 1kW Transom Mount Transducer w/Humminbird 14-Pin Plug?
The TM260 comes with a rugged stainless-steel mounting bracket that is easy to install and has a streamlined shape. The performance of Airmar's "1 kW, 260 family" of transducers is legendary. The combination of power and sensitivity has made this the high-performing transducer of choice with conventional fishfinders. Operating at 50 and 200 kHz, the narrow, 6° beam at 200 kHz provides excellent target resolution and crisp images of fish holding tight to wrecks and reefs. The 50 kHz is excellent at deep-water detection, and the wide, 19° beam yields broad coverage under the boat.
What is the power rating of the product?
1 kW
Which mix and match cable useful for this product?
9-Pin 1000 Watt
What is the transducer functions of the product?
Depth, Temperature
In which country this product made in?
USA
How many pins exists in the connector of the product?
14
How to define housing of Airmar TM260 1kW Transom Mount Transducer w/Humminbird 14-Pin Plug?
Urethane/Stainless Bracket
What is the frequency band of the product?
50/200 kHz
What's the Airmar TM260 1kW Transom Mount Transducer w/Humminbird 14-Pin Plug package dimensions and weight?
10 (w) X 8 (h) X 12 (l) inches and the weight is: 10.2 lb.
What is the sensor connector of the product?
MM1
Is this product single or dual frequency?
Conventional Dual Frequency
This product can read the temprature?
Yes
How to mount or what is the mounting style of Airmar TM260 1kW Transom Mount Transducer w/Humminbird 14-Pin Plug?
Transom
What is the display connector of the product?
14HB
What is the common use place of the product?
Leisure/Yachting, Fishing
What is the length of cable?
10 m (33')
What is the connector type of the product?
Humminbird 14-Pin
What is the housing material of the product?
Urethane
What is the max depth of the product?
Low frequency- 800 m (2600'), High frequency- 294 m (1000)
What is the transom angle of the product?
up to 28°
This product has tilted element?
No
What is the max deadrise of the product?
Up to 28°
What is the max deadrise angle of the product?
28°
What is the manufacturer notes about Airmar TM260 1kW Transom Mount Transducer w/Humminbird 14-Pin Plug?
The TM260 comes with a rugged stainless-steel mounting bracket that is easy to install and has a streamlined shape. The performance of Airmar's "1 kW, 260 family" of transducers is legendary. The combination of power and sensitivity has made this the high-performing transducer of choice with conventional fishfinders. Operating at 50 and 200 kHz, the narrow, 6° beam at 200 kHz provides excellent target resolution and crisp images of fish holding tight to wrecks and reefs. The 50 kHz is excellent at deep-water detection, and the wide, 19° beam yields broad coverage under the boat.
Buy with the best price Airmar TM260 1kW Transom Mount Transducer w/Humminbird 14-Pin Plug for only $1499 from NVN Marine! Same day shipping before 3pm.
Airmar TM260 1kW Transom Mount Transducer w/Humminbird 14-Pin Plug Technical Specifications
| Type: |
Marine Navigation & Instruments | Transducers |
|---|---|
| Vendor: |
Airmar |
| Weight: |
10.2 lb |
| Temperature: |
Yes |
| Pins: |
14 |
| Mounting Style: |
Transom |
| User Guide: |
Download PDF |
| Product Manual: |
Download PDF |
| Product Brochure: |
Download PDF |
| Product Installation: |
Download PDF |
