Airmar TM265C-LH-MM TM265 BROADBAND CHIRP MM TRANSDUCER, DT
Write a Review
AIRMAR
Airmar TM265C-LH-MM TM265 BROADBAND CHIRP MM TRANSDUCER, DT
- Brand
- AIRMAR
- SKU:
- TM265C-LH-MM
- Condition:
- New
Airmar TM265C-LH Transom Mount CHIRP - 1kW Transducer - Requires Mix and Match Cable Product Description
1 kW
We know that specific frequencies excel at detecting certain species of fish: Bluefin Tunaâ60 kHz, squidâ133 kHz, and codâ175 kHz. The TM265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.
Airmar's TM265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10° to 6°, beamâperfect for picking apart structure and pinpointing tight-holding fish in structure.
TM265C-LH Transom Mount CHIRP - 1kW Transducer
Transom-mounted 1kW dual-band CHIRP fishfinder transducer.
The TM265 is available in the Low/Medium and Low/High bands. A Low/High widebeam model exists with the designation TM275.
Specifications:
- Low/High Bands
- 1000 Watts
- Transom Mount
- Housing: Urethane
- Requires Mix and Match Cable for the Sounder its going into
Airmar TM265C low/high CHIRP tail mount sensor with mixed N matching plug Model: TM265C-LH-MM 8 Internal broadband ceramic depth and fast response water temperature sensor...
- Depth and fast-response water-temperature sensing
- 1 kW of power for great deep-water performance
- Low frequency: 42 to 65 kHz
- 25° to 16° port-starboard beamwidth
- Maximum depth of 914 m (3000')
- High frequency: 130 to 210 kHz
- 10° to 6° beamwidth
- Maximum depth of 304 m (1000')
- 103 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
- Transom mount, stainless steel bracket for installation on boats of all propulsion types
- SEALCAST, seamless, urethane housing for long life in the water
- Also available as cavity/welded-tank (CM265LH), thru-hull (B265LH), in-hull (M265LH), and pocket (PM265LH) mounts
- Patented Xducer ID technology
Airmar TM265C-LH Transom Mount CHIRP - 1kW Transducer - Requires Mix and Match Cable Related Products
Sea-Dog Stainless Steel Midget Vent - MediumSika Sikaflex® 291 Fast Cure - White - 3oz Tube
Sika Sikaflex® 291 Fast Cure - Black - 3oz Tube
Frequently Asked Questions (FAQ) About Airmar TM265C-LH Transom Mount CHIRP - 1kW Transducer - Requires Mix and Match Cable
Who is the Airmar?How to describe Airmar TM265C-LH Transom Mount CHIRP - 1kW Transducer - Requires Mix and Match Cable?
What is the power rating of the product?
Which mix and match cable useful for this product?
What is the transducer functions of the product?
In which country this product made in?
How to define housing of Airmar TM265C-LH Transom Mount CHIRP - 1kW Transducer - Requires Mix and Match Cable?
What is the frequency band of the product?
What's the Airmar TM265C-LH Transom Mount CHIRP - 1kW Transducer - Requires Mix and Match Cable package dimensions and weight?
What is the sensor connector of the product?
Speed feature included to the product?
Is this product single or dual frequency?
This product can read the temprature?
How to mount or what is the mounting style of Airmar TM265C-LH Transom Mount CHIRP - 1kW Transducer - Requires Mix and Match Cable?
What is the common use place of the product?
What is the display connector of the product?
What is the length of cable?
What is the length of cable (feet)?
What is the connector type of the product?
Is this product supporting CHIRP and what's the type?
What is the housing material of the product?
What is the max depth of the product?
What is the transom angle of the product?
What is the high frequency level of the product?
What is the high frequency beamwidth of the product?
What is the low frequency level of the product?
What is the low frequency beamwidth of the product?
This product has tilted element?
What is the manufacturer notes about Airmar TM265C-LH Transom Mount CHIRP - 1kW Transducer - Requires Mix and Match Cable?
Who is the Airmar?
How to describe Airmar TM265C-LH Transom Mount CHIRP - 1kW Transducer - Requires Mix and Match Cable?
1 kW
We know that specific frequencies excel at detecting certain species of fish: Bluefin Tunaâ60 kHz, squidâ133 kHz, and codâ175 kHz. The TM265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.
Airmar's TM265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10° to 6°, beamâperfect for picking apart structure and pinpointing tight-holding fish in structure.
What is the power rating of the product?
Which mix and match cable useful for this product?
What is the transducer functions of the product?
In which country this product made in?
How to define housing of Airmar TM265C-LH Transom Mount CHIRP - 1kW Transducer - Requires Mix and Match Cable?
What is the frequency band of the product?
What's the Airmar TM265C-LH Transom Mount CHIRP - 1kW Transducer - Requires Mix and Match Cable package dimensions and weight?
What is the sensor connector of the product?
Speed feature included to the product?
Is this product single or dual frequency?
This product can read the temprature?
How to mount or what is the mounting style of Airmar TM265C-LH Transom Mount CHIRP - 1kW Transducer - Requires Mix and Match Cable?
What is the common use place of the product?
What is the display connector of the product?
What is the length of cable?
What is the length of cable (feet)?
What is the connector type of the product?
Is this product supporting CHIRP and what's the type?
What is the housing material of the product?
What is the max depth of the product?
What is the transom angle of the product?
What is the high frequency level of the product?
What is the high frequency beamwidth of the product?
What is the low frequency level of the product?
What is the low frequency beamwidth of the product?
This product has tilted element?
What is the manufacturer notes about Airmar TM265C-LH Transom Mount CHIRP - 1kW Transducer - Requires Mix and Match Cable?
1 kW
We know that specific frequencies excel at detecting certain species of fish: Bluefin Tunaâ60 kHz, squidâ133 kHz, and codâ175 kHz. The TM265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.
Airmar's TM265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10° to 6°, beamâperfect for picking apart structure and pinpointing tight-holding fish in structure.
Buy with the best price Airmar TM265C-LH Transom Mount CHIRP - 1kW Transducer - Requires Mix and Match Cable for only $1644 from NVN Marine! Same day free shipping before 3pm.
Airmar TM265C-LH Transom Mount CHIRP - 1kW Transducer - Requires Mix and Match Cable Technical Specifications
| Type: |
Marine Navigation & Instruments | Transducers |
|---|---|
| Vendor: |
Airmar |
| Weight: |
11.0 lb |
| Speed Included: |
No |
| Temperature: |
Yes |
| Mounting Style: |
Transom |
| Chirp: |
Low/High |
| Cable Length (Feet): |
10m |
| User Guide: |
Download PDF |
| Product Manual: |
Download PDF |
| Product Brochure: |
Download PDF |
| Product Installation: |
Download PDF |
0 Reviews Hide Reviews Show Reviews
AIRMAR
Airmar TM265C-LM-MM TM265 BROADBAND CHIRP MM TRANSDUCER, DT
AIRMAR
Airmar TM265C-LH-0 TM265 BROADBAND CHIRP, NO CONNECTOR, DT
AIRMAR
Airmar TM265C-LH-12G TM265 BROADBAND CHIRP, GARMIN 12-PIN, DT
AIRMAR

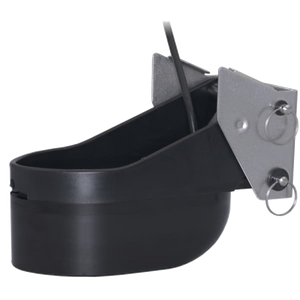

Airmar TM265C-LH-12F TM265 BROADBAND CHIRP, FURUNO 12-PIN, DT
