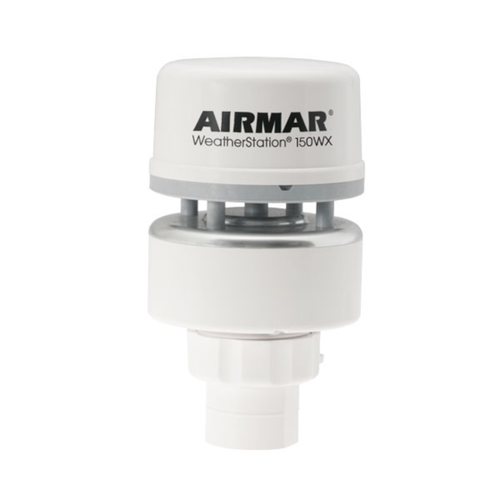

Airmar WS-150WX NMEA0183/2000 WEATHERSTATION (NO RH)

Airmar WS-150WX - 150WX NMEA 0183 / NMEA 2000® WeatherStation®, no Relative Humidity Product Description

Land-based, Mobile Component

The WeatherStation 150WX is designed for land-based weather monitoring—particularly mobile applications. With a built-in GPS and electronic compass, it is the model of choice for portable or mobile situations. This is based on its GPS position and time-stamping functionality and a compass which self-aligns to north. Orienting the sensor to north is not required.

Theoretical wind speed and direction are important for many applications and often mission-critical. On moving vehicles the 150WX calculates the theoretical wind speed and direction based upon the apparent wind, speed of the vehicle, and vehicle heading.

Packed with features and encased in a durable, rugged, small-footprint housing that is IPX6 rated, the 150WX can be deployed as an integral component of a larger system. It has been successfully used with the JBTDS HazMat program and on OEM’s mobile agricultural platforms.

Land-based, Mobile Component

The WeatherStation 150WX is designed for land-based weather monitoring—particularly mobile applications. With a built-in GPS and electronic compass, it is the model of choice for portable or mobile situations. This is based on its GPS position and time-stamping functionality and a compass which self-aligns to north. Orienting the sensor to north is not required.

Theoretical wind speed and direction are important for many applications and often mission-critical. On moving vehicles the 150WX calculates the theoretical wind speed and direction based upon the apparent wind, speed of the vehicle, and vehicle heading.

Packed with features and encased in a durable, rugged, small-footprint housing that is IPX6 rated, the 150WX can be deployed as an integral component of a larger system. It has been successfully used with the JBTDS HazMat program and on OEM’s mobile agricultural platforms.

• Ultrasonic measurement of apparent and theoretical wind speed and direction
• Barometric pressure
• Air and wind chill temperature
• GPS position, speed over ground, course over ground
• Two-axis solid-state compass provides heading data
• Three-axis accelerometer for best-in-class pitch and roll information
• Housing IPX6 rated for water-ingress protection
• Data output via a single cable (various lengths available)
  • NMEA 0183/ASCII serial protocol over RS-232 interface
  • NMEA 2000 protocol over CAN

Options

• Relative humidity module
  • Enables dew-point and heat-index calculations
  • Field serviceable
  • WeatherStation housing rated IPX4
