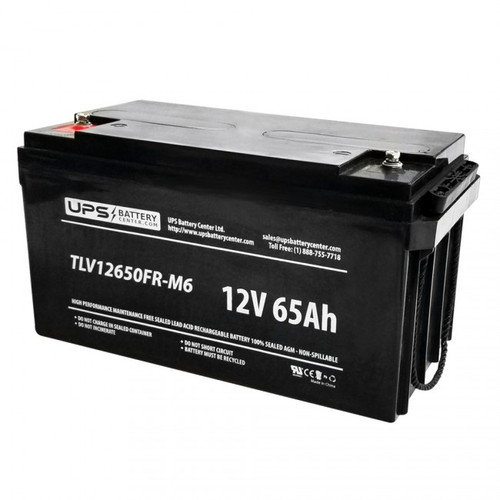

Features of the TLV12650FR-M5 - 12V 65Ah Sealed Lead Acid Battery with Insert Terminals

• Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding
• Not restricted for air transport-complies with IATA/ICAO Special Provision A67
• UL-recognized component
• Can be mounted in any orientation
• Computer designed lead, calcium tin alloy grid for high power density
• Long service life in float or cyclic applications
• Non-Spillable, Maintenance-free operation
• Low self discharge

Applications

• UPS Standby Power Applications
• Hospitals & Medical Applications
• Emergency Lighting
• Fire Panels, Fire Detection and Alarm Devices
• Solar systems

Product Specifications

Dimensions
Terminal Type: M6
Length (mm/inch): 350 / 13.8
Width (mm/inch): 167 / 6.57
Height (mm/inch): 179 / 7.05
Total Height (mm/inch): 179 / 7.05
Approx. Weight (kg/lbs): 23.6/52lbs

Performance Characteristics

Nominal Voltage: 12V

Number of Cell: 6

Design Life: 5 years

Nominal Capacity 77ºF (25ºC)
20HR (10.8V): 68Ah
10HR (10.8V): 65Ah
5HR (10.5V): 55Ah
1HR (9.6V): 45.1Ah

Internal Resistance
Fully Charged battery 77ºF(25ºC): Approx. 6.8mΩ

Self-Discharge (25°C):
3% of capacity declined per month at 20°C (average)

Operating Temperature Range
Discharge: -20~60°C
Charge: -10~60°C
Storage: -20~60°C

Maximum Discharge Current: 650A (5 sec)

Short Circuit Current: 1700A

Charge Methods: Constant Voltage Charge 77°F(25°C)
Cycle Use: 2.40-2.45VPC
Maximum Charging Current: 26A
Temperature Compensation: -30mV/°C

Standby Use: 2.20-2.28VPC
Temperature Compensation: -20mV/°C
