Comnav 10340023 System - Driveset - Linear 2012LAR12 45mm

Write a Review

$4,223.60

Brand: Comnav
SKU:: 10340023
UPC:
Condition:: New
Availability:: Within 2 Days Shipping

Current Stock:

Quantity:

Adding to cart… The item has been added

Description
0 Reviews

Description

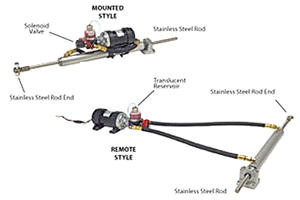

The Linear Actuator is for use with the existing mechanical steering systems and consists of a hydraulic steering cylinder, a reversing pump set, a lockup solenoid valve (electrical by-pass valve). It is economic; easy to install and even comes pre-filled with hydraulic oil. The Linear Actuator engages automatically when the autopilot is in use. It also offers the additional benefit of being an independent steering system providing a safety backup if the mechanical steering fails. For 1001/22001 Autopilots add a CT2 P/N 20350001.

Highlights of the Linear Actuator include:

Self contained unit
Sealed ball bearings
Lockup solenoid valve included
Fully reversible DC motor drive
No extra check valves necessary
Solid state motor control

Models available:

LINEAR DRIVE, 12V 1012LAM7, 7" STROKE
LINEAR DRIVE, 24V 1024LAM7, 7" STROKE
LINEAR DRIVE, 12V 1212LAM12, 12" STROKE
LINEAR DRIVE, 24V 1224LAM12, 12" STROKE
LINEAR DRIVE, 12V 1212LAR12, 12" STROKE
LINEAR DRIVE, 24V 1224LAR12, 12" STROKE
LINEAR DRIVE, 12V 2012LAR12, 12" STROKE
LINEAR DRIVE, 24V 2024LAR12, 12" STROKE
