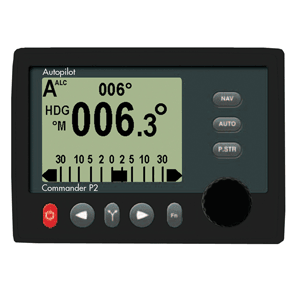

Comnav S10110001 Commander P2 Mono Display Autopilot with Fluxgate Compass & Rotary Feedback 10110001

• SUNLIGHT VIEWABLE  LCD - high contrast crystal clear LCD; QVGA (320 x 240) high resolution TFT display
• UNIVERSAL MOUNT - fixed station autopilot, either surface, flush or bracket mounted
• IST - Intelligent Steering Technology designed with automatic self learning attributes that work continually to improve steering while underway
• AUTO SETUP - select boat type from menu, and ComPilot's automatic drive detection, automatic compass detection and compensation routine automatically calibrates for immediate results
• AUTO SEA STATE - automatic sea state adjustment with manual override
• QUICK TURN SELECTION - continuous CIRCLE, U-TURN, Emergency MOB whic steers the all-important Williamson Recovery turn & FISH ZAG to allow the sport fisher to mimic the actions of live prey more closely
• WATERPROOF Control Head to commercial grade IP67 standards
• SIMPLE touch 8 button illuminated keypad
• ADVANCED POWER FEATURES include automatic helm bias, automatic leeway control for minimizing course errors due to wind and tide and automatic thruster assist for dead-ahead slow or station keeping
• PRC proportional rate control feature provides gentle smooth response at fast cruising speeds
• WORK MODE - superbly suited for professional performance on vessels requiring ultimate rudder response; adjustments can be made "on the fly"
• Multiple selections of steering parameters for Fast, Slow and Work modes
• Easy to install
• Simple to use course change knob with mechanical detent
• Multi-station capability with security station lock
• 8 level backlit LCD display for comfortable viewing in all conditions
• Optional full function Remotes both fixed and hand held (hand held remote available in February 2006)
• Unique center amplified digital Rudder Angle display
• "Hands Off" automatic trim
• Adjustable yaw, turn rate and rudder settings
• NAV mode provides adaptive precise track steering; dual navigation NMEA 0183 input ports
• Standard NMEA 0183 outputs Heading and Autopilot status info
• Power steering feature for ease of maneuvering
• PORT and STBD dodge buttons for collision avoidance
• Fully compatible with your onboard instruments and steering system
• Built-in diagnostics and self tests plus visual and audible alarms
• Output for optional analog rudder angle indicator, up to 4 stations
• Reliable in all weather conditions
• Auto steering selection of parameters with manual override
• Multi language capability
• Extended 3 year warranty
• Fully compatible with the ComNet advanced marine electronics network protocol for connection to all industry standard marine electronics
• CE certified

Commander

Specifications


Operating Voltage: 10 to 40 VDC
Power Consumption: Average 0.5 Amps, 3 Amps Peak (Lower consumption capability with low backlight setting)
Drive Output: 20 Amps
Navigational Interface: Dual NMEA 0183 inputs
NMEA 0183 Output: Heading (10x per sec), Autopilot Status (1x per sec)
Heading Reference: Fluxgate, Magnetic Compass, Standard Gyro or NMEA input
Course Resolution: 1?
Course Detection: 0.1?
Control Head: Sunlight viewable high contrast LCD is available in color or monochrome version; QVGA (320 x 240) high resolution TFT display

DIMENSIONS
Control Head (surface mount w/o knob): 155 x 113 x 29 mm / 6.1 x 4.5 x 1.2 inches
Distribution Unit: 257 x 184 x 73 mm / 10.2 x 7.3 x 2.9 inches
Fluxgate Compass: 142 x 107 x 76 mm / 5.6 x 4.2 x 3.0 inches

Manual

Options


Wide range of fixed and full function Remotes
Wide range of specialty drives and interfaces
GPS Antenna, boat position / speed sensor, NMEA 0183, WAAS capable
Non-Follow-up jog switches
Rudder Angle Indicator, easy-to-read analog display
Rate stabilized Fluxgate Compass
Wind Transducer
45? Fluid Damped Fluxgate Compass
