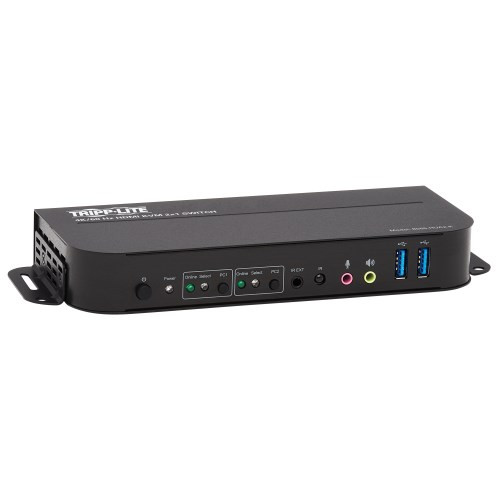

Eaton B005-HUA2-K - 2PT HDMI KVM,4K60HZ W CABLES
$186.88
- Brand
- Eaton
- SKU:
- B005-HUA2-K
- Availability:
- Within 2 Days Shipping
Features
Connects 2 HDMI-Enabled Devices to a Single HDMI Monitor, Keyboard and Mouse
This KVM switch lets you access, control, boot and reboot two computers with HDMI ports and switch between them. In addition to desktop and notebook computers, the switch also connects up to two media centers, video game systems, Blu-ray and DVD players, cable and satellite boxes, DVRs and other HDMI-enabled devices. Both computers share one HDMI monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.
Switching Between Computers Is Fast and Easy
Use the front-panel push buttons, hotkey commands, mouse movement or the included IR remote control for quick and easy toggling between computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. LEDs indicate which computer is currently selected. Please note: Mouse Traversal is a permanent feature and cannot be disabled
USB Cables Are Included to Facilitate a Simple Setup
Use the included USB 3.0 cables to connect your computers to the KVM switch. The plug-and-play B005-HUA2-K requires no drivers, so you can connect and use it immediately. It works with all major operating systems, including Windows, macOS and Linux.
USB Hub Lets You Share Peripherals between Computers
Two USB 3.0 hub ports allow you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between all connected computers. The hub is backward compatible with USB 1.1 devices.
Transmits True 4K Video with HDR and 4:4:4 Color
The B005-HUA2-K supports Ultra HD resolutions up to 4096 x 2160 (4K x 2K) at 60 Hz, as well as 7.1-channel surround sound and HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This KVM switch also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Designed for Convenient Mounting with Included Brackets
The heavy-duty metal housing comes with mounting brackets for permanent installation on a wall or beneath a desk with user-supplied hardware. The included DC power supply connects to any standard AC power source.
Composition
- B005-HUA2-K 2-Port HDMI/USB KVM Switch
- IR extender
- IR remote control
- (2) USB 3.0 A-to-B cables (M/M)
- External power supply (Input: 100?40V, 50/60 Hz, 0.5A; Output: 5V 3A). Includes Interchangeable Plug Adapters (US, UK, EU & Australia).
- Mounting brackets
- Owner? manual
Specifications
OVERVIEW
UPC Code | 037332254894 |
Technology | HDMI; USB 2.0 (High Speed) |
VIDEO
Max Supported Video Resolution | 4K x 2K (4096 x 2160) @ 60 Hz |
Max Supported Color Depth | 36-bit Deep Color |
HDR Support | Yes |
3D Video Supported | Yes |
Chroma Sub Sampling | 4:2:0; 4:2:2; 4:4:4 |
AUDIO
Audio Specification | 7.1 Surround Sound |
INPUT
AC Power Adapter Plug(s) | AS/NZS 3112 Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 5-15P North America |
AC Power Adapter Input Specs (V / Hz / A) | 100-240V / 50/60Hz / 0.6A |
AC Power Adapter Output Specs (V / A) | 5V / 3A |
AC Power Adapter Cord Length (ft.) | 4 |
AC Power Adapter Cord Length (m) | 1.2 |
Voltage Compatibility (VAC) | 100; 110; 120; 125; 127; 200; 208; 220; 230; 240 |
POWER
Power Source Type | AC Adapter |
DC Barrel Plug | OD: 5.5 x 2.5 x 16.5mm, Positive Pin, Negative Sleeve |
Power Consumption (Watts) | 11.75 |
USER INTERFACE, ALERTS & CONTROLS
LED Indicators | Red (Connection to Power), Green (Online), Blue (Selected Port) |
PHYSICAL
Color | Black |
Material of Construction | Metal |
Cable Jacket Color | Black |
Rackmountable | No |
Shipping Dimensions (hwd / cm) | 6.50 x 23.01 x 20.04 |
Shipping Weight (kg) | 0.55 |
Unit Dimensions (hwd / mm) | 26 x 243 x 75 |
Unit Packaging Type | Box |
Unit Weight (kg) | 0.50 |
ENVIRONMENTAL
Operating Temperature Range | 32? to 113?F (0? to 45?C) |
Storage Temperature Range | 14? to 176?F (-10? to 80?C) |
Operating Humidity Range | 10% to 85% RH (No Condensation) |
Storage Humidity Range | 5% to 95% RH (No Condendsation) |
ESD Protection | +/- 8kV (air-gap discharge); +/- 4kV (contact discharge) |
COMMUNICATIONS
Hotkey | Yes |
IP Remote Access | No |
IR Remote Extension Support | Yes |
CONNECTIONS
Number of Ports | 2 |
PC/Server Connections | HDMI |
Side A - Connector 1 | (3) 3.5MM (FEMALE) |
Side A - Connector 2 | (2) USB 3.0 A (FEMALE) |
Side B - Connector 1 | (2) USB A (FEMALE) |
Side B - Connector 2 | (3) HDMI (FEMALE) |
Side B - Connector 3 | (6) 3.5MM (FEMALE) |
Side B - Connector 4 | (2) USB 3.0 B (FEMALE) |
Side B - Connector 5 | 3.5mm x 1.35mm (5V DC Barrel) |
Computer Keyboard and Mouse Interface | USB |
Computer Monitor Interface | HDMI |
Console Keyboard and Mouse Interface | USB |
Console Monitor Interface | HDMI |
FEATURES & SPECIFICATIONS
USB Hub Ports | Yes |
Number of USB Hub Ports | 4 |
USB Specification | USB 2.0 (up to 480 Mbps); USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
NIAP-Certified Secure | No |
Number of Users | 1 |
Autoscan (Y,N) | Y |
Port Selection | Hotkey; Mouse; Pushbutton; Remote Selector |
HDCP Specification | 1.4; 2.2 |
Driver Required | No |
Autoscan Duration | 5 to 999 seconds |
Common Access Card (CAC) Support | No |
STANDARDS & COMPLIANCE
External Power Supply Certifications | CCC; UL; cUL |
Product Compliance | RoHS; CE (Europe); REACH; FCC (USA) |
WARRANTY & SUPPORT
Product Warranty Period (Worldwide) | 3-year limited warranty |
