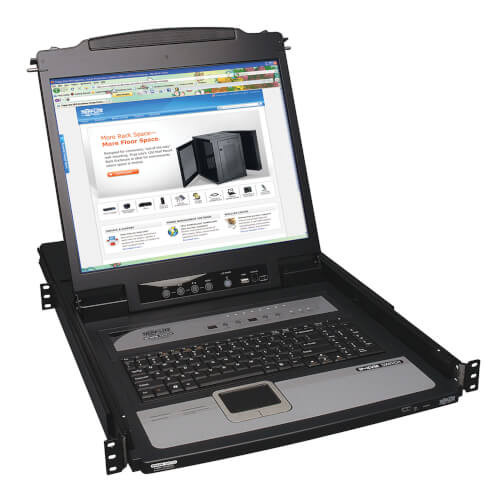

Eaton B020-U08-19-IP - 8PT CONSOLE IP KVM W 19" LCD
Write a Review
Write a Review
Eaton
Eaton B020-U08-19-IP - 8PT CONSOLE IP KVM W 19" LCD
$3,380.00
- Brand
- Eaton
- SKU:
- B020-U08-19-IP
- Availability:
- Within 2 Days Shipping
Features
Saves Space and Money
IP Remote Access for Fewer Trips to the Server Room
Simplifies IT Tasks
Large 19?LCD
Advanced Security Features
Expandability and Long-Lasting Reliability
- Combines 8-port KVM switch, 19-in. LCD screen, keyboard and touchpad in a 1U rack-mountable drawer ?ideal when rack space is at a premium
- Mounts into 19?wide rack, 26?38?deep
- Flip-up/fold-down screen keeps console from blocking access to rack equipment when not in use
IP Remote Access for Fewer Trips to the Server Room
- Remote access offers convenience of controlling servers from anywhere?o need to travel to the server room or network closet
- Supports both IPv4 and IPv6 and network interfaces TCP/IP, HTTP, HTTPS, RADIUS, DHCP, SSL, ARP, DNS, 10Base-T/100Base-TX, Auto Sense and Ping
Simplifies IT Tasks
- Switch easily between the 8 ports via on-console buttons, on-screen display or hot keys; OSD can be set to English, Spanish, French, German or Japanese
- Panel array mode lets you monitor multiple ports at same time
- Supports RADIUS and LDAP/S authentication
- Auto-scan mode automatically sequences through all active ports accessible to the user
- Includes USB port for an external mouse and a USB 1.1 port for sharing a peripheral across the installation
- Log server tracks events on your installation
Large 19?LCD
- Extra-wide display makes multitasking easier
- Supports video resolutions up to 1280 x 1024; remote monitor resolutions up to 1600 x 1200
- DDC emulation allows for optimal output to the LCD
Advanced Security Features
- Includes password protection and advanced encryption: 512-bit RSA, 256-bit AES, 56-bit DES, 168-bit 3DES, 128-bit RC4 and 128-bit SSL
- Allows up to 64 user accounts, with 3 levels of access
Expandability and Long-Lasting Reliability
- Increase the number of connected computers up to 256 by daisy-chaining up to 31 B022-U08 KVM switches
- Compatible with all major operating systems for easy integration into existing structure
- Firmware is upgradable so your software remains up-to-date
- Heavy-duty steel housing stands up to frequent use
Composition
- B020-U08-19-IP 8-Port console KVM switch with 19?LCD and built-in IP access
- (x2) P778-Series 6-ft. (1.83 m) USB/PS2 combo KVM Cable Kits
- USB/PS2 combo external console Cable Kit
- Grounding wire
- RJ11 to DB9 firmware upgrade cable
- Rackmount hardware
- C13 to 5-15P power cord
- CD with owner's manual, quick start guide, and device files
Specifications
OVERVIEW
| UPC Code | 037332152886 |
| Max CPU | 8 |
| Technology | PS/2; VGA/SVGA |
VIDEO
| Number of Monitors Supported | 1 |
| Max Supported Video Resolution | 1280 x 1024 @75HZ, DDC2B and 1920 x 1080 @ 60 Hz (remote console). |
| Max Number of Ports (Entire Chain) | 64 |
| Extended Mode | No |
| Mirror Mode | No |
INPUT
| AC Power Adapter Plug(s) | NEMA 1-15P North America |
| AC Power Adapter Input Specs (V / Hz / A) | 100-240V / 50/60Hz / 1A |
| AC Power Adapter Cord Length (ft.) | 6 |
| AC Power Adapter Cord Length (m) | 1.8 |
| Maximum Input Amps | 1 |
| Voltage Compatibility (VAC) | 100; 110; 120; 125; 220; 230; 240 |
| Input Cord Details | C13 to 5-15P |
| Input Current | 120V (0.8A) / 230V (0.4A) |
PHYSICAL
| Color | Black |
| Material of Construction | Metal; Plastic |
| LCD Monitor (cm) | 48.26 |
| Rackmountable | No |
| Shipping Dimensions (hwd / cm) | 13.00 x 66.50 x 83.01 |
| Shipping Weight (kg) | 18.14 |
| Unit Dimensions (hwd / cm) | 4.39 x 48.00 x 68.58 |
| Unit Weight (kg) | 14.06 |
ENVIRONMENTAL
| Operating Temperature Range | 32? to 122?F (0? to 50?C) |
| Storage Temperature Range | -4? to 140?F (-20? to 60?C) |
| Relative Humidity | 0% to 80% RH, Non-Condensing |
| Operating Temperature | 32? to 122?F (0? to 50?C) |
COMMUNICATIONS
| Hotkey | Yes |
| Port Control | Push Buttons, Hotkeys, OSD, Remote Toolbar |
| IP Remote Access | Yes |
| Network Compatibility | 1000 Mbps |
CONNECTIONS
| Number of Ports | 8 |
| Computer/Server Ports | SPHD-18 (VGA, PS/2, USB) |
| Daisy-Chain Port | Yes |
| Firmware Upgrade Port | Yes |
| PC/Server Connections | PS/2; USB; VGA |
| Side A - Connector 1 | (8) HD18 (FEMALE) |
| Side B - Connector 1 | (1) HD18 (MALE) |
| Side B - Connector 2 | (1) DB25 (MALE) |
| Side B - Connector 3 | (1) RJ11 (FEMALE) |
| Side B - Connector 4 | (1) RJ45 (FEMALE) |
| Side B - Connector 5 | (2) USB A (FEMALE) |
| Computer Keyboard and Mouse Interface | PS/2; USB |
| Computer Monitor Interface | VGA |
| Console Keyboard and Mouse Interface | PS/2 |
| Console Monitor Interface | VGA |
FEATURES & SPECIFICATIONS
| NIAP-Certified Secure | No |
| Number of Users | 1 |
| Autoscan (Y,N) | Y |
| Autoscan Duration | 1 - 255 seconds |
STANDARDS & COMPLIANCE
| Product Certifications | EN 60950-1; CAN/CSA C22.2; UL 60950-1 |
| Product Compliance | RoHS; CE (Europe); FCC Part 15 Class A (USA); Trade Agreements Act (TAA) |
WARRANTY & SUPPORT
| Product Warranty Period (Worldwide) | 1-year limited warranty |
