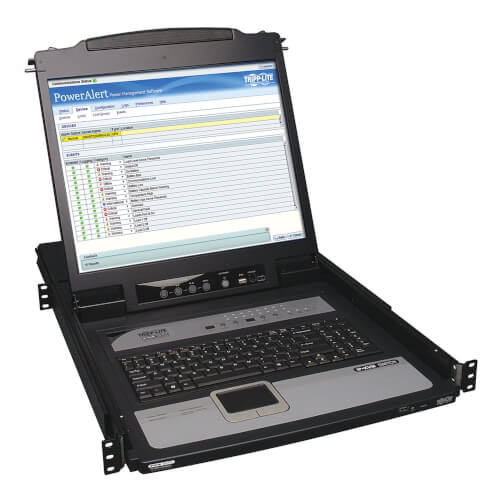

Eaton B020-U16-19-IP - 16PT CONSOLE IP KVM W 19" LCD
Write a Review
Write a Review
![Eaton B020-U16-19-IP - 16PT CONSOLE IP KVM W 19" LCD Eaton B020-U16-19-IP - 16PT CONSOLE IP KVM W 19" LCD](https://cdn11.bigcommerce.com/s-x1sv5q2jxe/images/stencil/500x659/products/9140/13480/b020u1619ip-front-l__85244__32149.1712328701.jpg?c=1)
Eaton
Eaton B020-U16-19-IP - 16PT CONSOLE IP KVM W 19" LCD
MSRP:
Now:
$4,160.00
Was:
(You save
)
- Brand
- Eaton
- SKU:
- B020-U16-19-IP
- UPC:
- Availability:
- Within 2 Days Shipping
Features
Complete Control from Anywhere
- Built-in IP access lets you control up to 16 computers directly from the next room, next d
Features
Complete Control from Anywhere
Built-In Security to Keep Your Data Safe
Versatile to Meet Your Specific Needs
Keep Your Colleagues in the Loop
Rack-Mounted Convenience
- Built-in IP access lets you control up to 16 computers directly from the next room, next door, or the next continent
- Remotely access computers via LAN, WAN or the Internet via Windows or Java
- Panel Array Mode allows remote monitoring of multiple ports at the same time
- Windows- and Java-based applications provide access without a browser
- Advanced on-screen display supports video resolutions up to 1280 x 1024 (@ 75 Hz) at the built-in 19-inch monitor and up to 1600 x 1200 (@ 60 Hz) at the remote console
Built-In Security to Keep Your Data Safe
- 3 levels of security (Admin, User and Select) allow you to delegate proper access
- Create up to 64 separate user accounts
- Features advanced encryption technologies, such as 512-bit RSA, 256-bit AES, 56-bit DES, 168-bit 3DES, 128-bit RC4 and 128-bit SSL
- Supports RADIUS and LDAP/S remote authentication
- LEDs indicate when a computer is connected, powered on and selected
- Included firmware upgrade cable keeps the software up to date
Versatile to Meet Your Specific Needs
- Increase the number of connected computers up to 264 by daisy-chaining up to 31 B022-U08 KVM switches.
- Compatible with all major operating systems
- User-friendly web management interface can be displayed in English, Spanish, French, German or Italian
- Included P778-Series cable kits let you use either USB or PS/2 keyboards and mice
- Supports both IPv4 and IPv6, as well as Link Local IPv6 Address and IPv6 Stateless Auto Configuration protocol
- External USB 1.1 port lets you add a flash drive or card reader to share external data among connected computers
Keep Your Colleagues in the Loop
- Windows-based log server records events and saves them to a searchable database
- Users who are logged in simultaneously can communicate via message board and manage port access
Rack-Mounted Convenience
- LCD folds down so the unit mounts into just 1U of rack space
- Mounts in racks from 26 in. to 38 in. deep
- Rugged steel housing and premium connectors built to last
- Console locks into place when not in use to prevent sliding out of the rack
Composition
- B020-U16-19-IP NetDirector 16-Port 1U Rack-Mount Console IP KVM Switch
- (2) P778-Series USB/PS2 combo KVM cable kits, 6-ft. (1.83 m)
- USB/PS2 combo external console cable kit
- Grounding wire
- RJ11 to DB9 firmware upgrade cable
- C13 to NEMA 5-15P power cord
- Mounting hardware
- CD with Owner's Manuals and device files
Specifications
OVERVIEW
UPC Code | 037332188052 |
Max CPU | 16 |
Technology | PS/2; VGA/SVGA |
VIDEO
Number of Monitors Supported | 1 |
Max Supported Video Resolution | Up to 1280 x 1024 (@75 Hz) at the built-in 19-inch monitor and up to 1600 x 1200 (@ 60 Hz) at the remote console. |
Max Number of Ports (Entire Chain) | 128 |
Extended Mode | No |
Mirror Mode | No |
INPUT
AC Power Adapter Plug(s) | NEMA 1-15P North America |
AC Power Adapter Input Specs (V / Hz / A) | 100-240V / 50/60Hz / 1A |
AC Power Adapter Cord Length (ft.) | 6 |
AC Power Adapter Cord Length (m) | 1.8 |
Nominal Input Voltage(s) Supported | 100V AC; 110V AC; 115V AC; 120V AC; 127V AC; 140V AC; 200V AC; 208V AC; 220V AC; 230V AC; 240V AC |
Recommended Electrical Service | 100-250V |
Maximum Input Amps | 1 |
Input Frequency | 50/60Hz |
Input Current | 120V (0.8A) / 230V (0.4A) |
PHYSICAL
Color | Black |
Material of Construction | Metal; Plastic |
LCD Monitor (cm) | 48.26 |
Rackmountable | No |
Shipping Dimensions (hwd / cm) | 13.72 x 67.94 x 83.18 |
Shipping Weight (kg) | 18.28 |
Unit Dimensions (hwd / cm) | 4.39 x 48.00 x 68.58 |
Unit Weight (kg) | 14.06 |
ENVIRONMENTAL
Operating Temperature Range | 32? to 122?F (0? to 50?C) |
Storage Temperature Range | -4? to 140?F (-20? to 60?C) |
Relative Humidity | 0% to 80% RH, Non-Condensing |
Operating Temperature | 32? to 122?F (0? to 50?C) |
BTUs | 30.8 BTUs at 120Vac/ 31.8 BTUs at 220Vac |
COMMUNICATIONS
Hotkey | Yes |
Port Control | Push Buttons, Hotkeys, OSD, Remote Toolbar |
IP Remote Access | Yes |
Network Compatibility | 1000 Mbps |
CONNECTIONS
Number of Ports | 16 |
Computer/Server Ports | SPHD-18 (VGA, PS/2, USB) |
Daisy-Chain Port | Yes |
Firmware Upgrade Port | Yes |
PC/Server Connections | PS/2; USB; VGA |
Side A - Connector 1 | (16) HD18 (FEMALE) |
Side B - Connector 1 | (1) HD18 (MALE) |
Side B - Connector 2 | (1) DB25 (MALE) |
Side B - Connector 3 | (2) RJ45 (FEMALE) |
Side B - Connector 4 | (2) USB A (FEMALE) |
Side B - Connector 5 | (1) RJ11 (FEMALE) |
FEATURES & SPECIFICATIONS
USB Specification | USB 2.0 (up to 480 Mbps) |
NIAP-Certified Secure | No |
Number of Users | 1 |
Autoscan (Y,N) | Y |
Autoscan Duration | 1 - 255 seconds |
STANDARDS & COMPLIANCE
Product Certifications | EN 60950-1; CAN/CSA C22.2; UL 60950-1 |
Product Compliance | RoHS; CE (Europe); FCC Part 15 Class A (USA); Trade Agreements Act (TAA) |
WARRANTY & SUPPORT
Product Warranty Period (Worldwide) | 1-year limited warranty |
