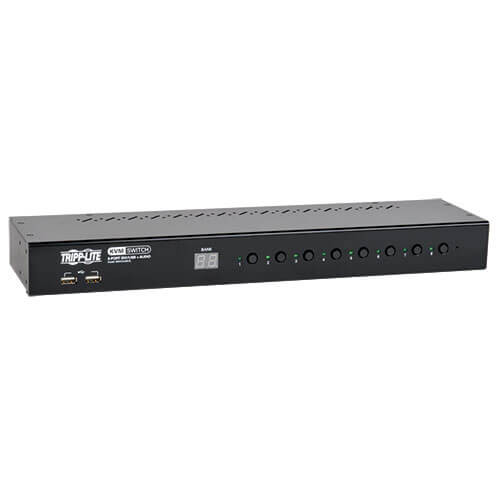

Eaton B043-DUA8-SL - 8PT DVI NTCNTRLR KVM W/AUD

Write a Review

$1,185.00

Brand

Eaton

SKU:

B043-DUA8-SL

Condition:

New

Description
0 Reviews

The B043-DUA8-SL NetController 8-Port, 1U rack-mount DVI/USB/Audio KVM Switch is a highly-flexible enterprise-class KVM Switch. Control up to eight directly connected computers, or expand the number of connected computers to 64 by cascading up to eight additional B043-DUA8-SL KVM switches. Switch between connected computers via push buttons or keyboard hotkey commands. Other features include: Audio Support, 2-port USB hub for peripheral sharing among switched computers and DVI Single-Link resolutions at 1920 x 1200. Mounts easily in a standard 19-inch rack/cabinet and includes all necessary mounting hardware. Compatible with all major operating systems. Constructed of heavy-duty steel housing.

Features

Directly connect up to 8 computers with DVI, USB, and audio.
Expand the number of connected computers by cascading an additional level of KVM switches.
Supports 2.1 Channel Stereo Audio and microphone.
(x2) USB 2.0 ports for sharing peripherals among connected computers.
USB hub functionality can be unbinded from the KVM, allowing users to access one computer while the USB hub focus remains on another computer.
Switch between connected computers via pushbuttons or hotkey commands.
DVI-I Single-Link supports digital video resolutions up to 1920 x 1200, and analog video resolutions up to 2048 x 1536.
Auto Scan mode lets users scan connected computers without having to manually switch between them.
Multi-platform support ?compatible with all major operating systems.
Plug and play setup ?no software installation required.
Supports EDID (Extended Display Identification Data) transmission to connected computers for optimal display performance.
Supports HDMI and VGA monitors with appropriate adapters...see "System Requirements"
Includes mounting hardware for 19?rackmount installations.
Power supply includes international plug adapters (North America, Europe, U.K. and Australia)

Composition

B043-DUA8-SL KVM Switch
External Power Supply (Input: 100-240V, 50/60Hz, 0.8A; Output: 9V, 2A)
International plug adapters (North America, Europe, U.K. and Australia)
Rackmount Hardware
Owner? Manual

Specifications

OVERVIEW

UPC Code	037332182395
Max CPU	64
Technology	DVI; Stereo Audio; USB 2.0 (High Speed)

VIDEO

Max Supported Video Resolution	1920 x 1200 @60Hz
Max. Distance (Between any 2 Units)	15ft (4.6m)
Max Number of Ports (Entire Chain)	64

AUDIO

Audio Specification

Stereo Audio

INPUT

AC Power Adapter Plug(s)	NEMA 1-15P North America; CEE 7/16 Schuko; BS 1363 UK; AS/NZS 3112 Australia
AC Power Adapter Input Specs (V / Hz / A)	100-240V / 50/60Hz / 1A
AC Power Adapter Output Specs (V / A)	9V / 2A
AC Power Adapter Cord Length (ft.)	5
AC Power Adapter Cord Length (m)	1.5
Voltage Compatibility (VAC)	100; 110; 120; 127; 200; 208; 220; 230; 240

POWER

Power Source Type	AC Adapter
AC Adapter	Input: 100-240V, 50/60Hz, 0.8A / Output: 9V, 2A
DC Barrel Plug	OD: 5.5 x 2.1 x 9.5mm, Positive Pin, Negative Sleeve
Power Consumption (Watts)	8.7

USER INTERFACE, ALERTS & CONTROLS

LED Indicators

Green (Selected PC)

PHYSICAL

Color	Black
Material of Construction	Steel
Rackmountable	Yes
Shipping Dimensions (hwd / cm)	7.11 x 43.94 x 29.21
Shipping Weight (kg)	2.22
Unit Packaging Type	Box
Unit Weight (kg)	1.80

ENVIRONMENTAL

Operating Temperature Range	32? to 104?F (0? to 40?C)
Storage Temperature Range	-4? to 140?F (-20? to 60?C)
Relative Humidity	0%-90% RH, Non-Condensing
BTUs	29.7 BTU/Hr
ESD Protection	Yes

COMMUNICATIONS

Hotkey	Yes
IP Remote Access	No
EDID Compatible	Yes

CONNECTIONS

Number of Ports	8
Daisy-Chain Port	No
Firmware Upgrade Port	Yes
PC/Server Connections	DVI; USB
Side A - Connector 1	(8) DVI-I (FEMALE)
Side A - Connector 2	(8) USB B (FEMALE)
Side A - Connector 3	(16) 3.5MM (FEMALE)
Side B - Connector 1	DVI-I (FEMALE)
Side B - Connector 2	(2) USB A (FEMALE)
Side B - Connector 3	(2) 3.5MM (FEMALE)
Included Cable (Side A) - Connector 1	No
Computer Keyboard and Mouse Interface	USB
Computer Monitor Interface	DVI-I Single-Link
Console Keyboard and Mouse Interface	USB
Console Monitor Interface	DVI-I Single-Link
Connector Plating	Nickel

PORT EXPANSION

Daisy-chainable or Cascadable

Cascadeable

FEATURES & SPECIFICATIONS

USB Hub Ports	Yes
Number of USB Hub Ports	2
USB Specification	USB 2.0 (up to 480 Mbps)
NIAP-Certified Secure	No
Number of Users	1
Autoscan (Y,N)	Y
On-Screen Display (OSD)	No
Port Selection	Pushbutton; Hotkey
Driver Required	No
Autoscan Duration	10 to 60 seconds

STANDARDS & COMPLIANCE

External Power Supply Certifications	CE; FCC; RoHS; TUV; UL
Product Compliance	RoHS; CE (Europe); REACH; FCC (USA)

WARRANTY & SUPPORT

Product Warranty Period (Worldwide)

3-year limited warranty
