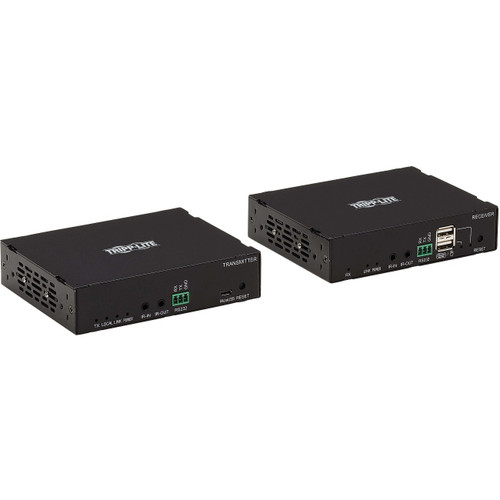

Eaton B127E-1A1-HH - HDMI EXTNDR KIT,4K 60HZ W/ POC

Write a Review

$655.00

Brand

Eaton

SKU:

B127E-1A1-HH

Condition:

New

Description
0 Reviews

Eaton B127E-1A1-HH - HDMI EXTNDR KIT,4K 60HZ W/ POC

Trionics Distributor of Tripp Lite By Eaton,

MPN: B127E-1A1-HH

Tech Specs

Specifications

Manufacturer Part Number	B127E-1A1-HH
Brand Name	Tripp Lite
Product Model	B127E-1A1-HH
Product Name	B127E-1A1-HH Video Extender Transmitter/Receiver
Marketing Information	Features HDMI Extender Ideal for Digital Signage or Displaying Video in Schools or Trade Show Booths This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127E-1A1-HH extends 4K video and stereo audio signals from an HDMI source device to an HDMI display up to 328 feet (100 meters) away via user-supplied Cat6 cabling. Transmits Crystal-Clear 4K HDMI Video with Multi-Channel Audio and 4:4:4 Color The B127-1A1-HH supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with full, rich 7.1-channel digital audio. HDCP 2.2 compliance allows you to stream iTunes and Netflix content with no complications. This extender kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Monitor your extended content locally by connecting an HDMI TV or display to the transmitter's local HDMI port. In addition, the B127E-1A1-HH supports multi-resolution giving you the flexibility of connecting a 1080p or 4K 30Hz local display without affecting the extended 4K 60Hz signal. While the receiver features built-in equalization, which automatically fine-tunes the image quality at the remote display with no time-consuming manual fiddling needed. Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks Built-in Power over Cable (PoC) technology powers the low-profile receiver over Cat6 cable. Green and orange LEDs on both the transmitter and receiver will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receiver away from an AC outlet. Start, Stop, Fast Forward, Pause, Rewind Video from More Than 300 ft. Away Use the included bi-directional IR cables or the included RS-232 adapters to control video and audio from the HDMI display's location. You can also connect a keyboard and mouse to the receiver's USB port to operate the video source device from up to 328 feet away from the transmitter. Plug-and-Play Operation for Quick Setup and Immediate Use The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls, poles or 19-inch racks. Connect the transmitter to the source and the receiver to the display with user-supplied HDMI cables (such as Tripp Lite's P568- or P569-Series). Then, connect the two units using Cat6 patch cable (such as Tripp Lite N202-Series cable). Connect an optional display to the transmitter's local HDMI output to monitor the image connected to the receiver up to 328 feet away. Plug-and-Play Operation for Quick Setup and Immediate Use The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls, poles or 19-inch racks. Connect the transmitter to the source and the receiver to the display with user-supplied HDMI cables (such as Tripp Lite's P568- or P569-Series). Then, connect the two units using Cat6 patch cable (such as Tripp Lite N202-Series cable). Connect an optional display to the transmitter's local HDMI output to monitor the image connected to the receiver up to 328 feet away.
Product Type	Video Extender Transmitter/Receiver

Technical Information

Connectivity Technology	Wired
Number of Input Devices Supported	2
Number of Output Devices Supported	1
Maximum Operating Distance	328 ft

Video

Graphics Modes	4K
Maximum Video Resolution	3840 x 2160

Interfaces/Ports

Network (RJ-45)	Yes
HDMI In	Yes
HDMI Out	Yes
USB	Yes
Number of Network (RJ-45) Ports	2
Number of USB Ports	3
Number of HDMI Inputs	1
Number of HDMI Outputs	2

Media & Performance

Media Type Supported	Twisted Pair
Twisted Pair Cable Standard	Category 6

Physical Characteristics

Product Color	Black
Transmitter Height	5.04"
Transmitter Width	3.94"
Transmitter Depth	1.17"
Receiver Height	5.04"
Receiver Width	3.94"
Receiver Depth	1.17"
Form Factor	Rack-mountable Pole-mountable Wall Mountable
Transmitter Weight (Approximate)	12.32 oz
Receiver Weight (Approximate)	12.32 oz

Miscellaneous

Package Contents	1 x Transmitter 1 x Receiver IR-OUT cable IR-IN cable 2 x RS-232 Adapters External Power Supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A) 4 x International Plug Adapters (North America, Europe, U.K., Australia) Mounting Hardware Owner's Manual
Environmentally Friendly	Yes
Environmental Certification	RoHS REACH
Country of Origin	Taiwan
TAA Compliant	Yes

Warranty

Limited Warranty

1 Year
