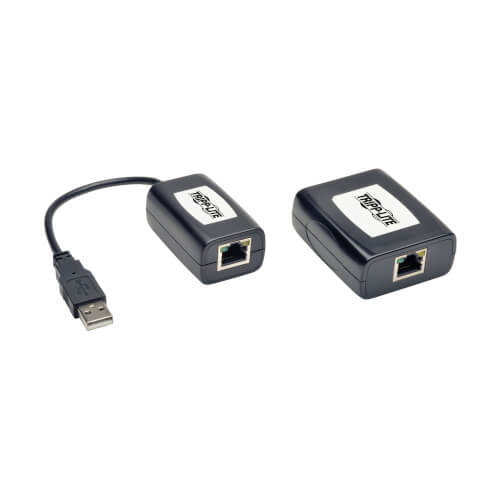

Eaton B203-101-PNPINT - 1PT USB 2.0 EXT KIT W/ INT PSU
- Brand
- Eaton
- SKU:
- B203-101-PNPINT
- Condition:
- New
Connects Your Computer or Laptop to a USB Device up to 164 ft. (50 m) Away
This plug-and-play extender kit is ideal for connecting your home or office computer? USB-A port to a printer, webcam, external hard drive or other USB peripheral located up to 164 feet (50 meters) away. The B203-101-PNPINT includes a local transmitter and a remote receiver. It sends USB signals over user-supplied Cat5e/6 cabling (such as N202-Series Cat6 Ethernet cables).
With Great Distance Comes Great Flexibility
By extending the USB connection beyond the standard 16-foot (4.9 meters) distance limitation to 164 feet (50 meters), the B203-101-PNPINT provides workstation flexibility to place your computer and its connected USB peripheral where they are best suited, even in separate rooms. This extender kit supports USB 2.0 data transfer rates up to 480 Mbps and is backward compatible with USB 1.1 technology, allowing you to connect legacy devices. No network connectivity is needed.
Built-In USB Cable Offers a Fast, Easy Plug-and-Play Connection
Just connect the transmitter? USB cable to your computer? USB-A port, connect a USB peripheral to the receiver? USB-A port, and connect the two units with Cat5e/6 cable (sold separately). No drivers or other software is needed. The included external power supply connects to the receiver. It comes with four international plug adapters (North America, United Kingdom, Europe, Australia), so you can connect to a wall outlet, UPS, PDU or surge protector almost anywhere.
TAA-Compliant for GSA Schedule Purchases
The B203-101-PNPINT is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- Transmitter
- Receiver
- External power supply (Input: 100?40V, 50/60 Hz, 0.35A; Output: 5V 2A)
- (4) International plug adapters (North America, U.K., Europe, Australia)
- Owner? manual
OVERVIEW
| UPC Code | 037332271563 |
| Technology | USB 2.0 (High Speed) |
INPUT
| AC Power Adapter Plug(s) | AS/NZS 3112 Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 1-15P North America |
| AC Power Adapter Input Specs (V / Hz / A) | 100-240V / 50/60Hz / 0.35A |
| AC Power Adapter Output Specs (V / A) | 5V / 2A |
| AC Power Adapter Cord Length (ft.) | 4.5 |
| AC Power Adapter Cord Length (m) | 1.38 |
| Voltage Compatibility (VAC) | 100; 110; 120; 125; 127; 200; 208; 220; 230; 240 |
| Input Frequency | 100-240V, 50/60Hz, 0.35A |
| Input Current | 5V 2A |
POWER
| Power Source Type | AC Adapter |
| DC Barrel Plug | OD: 5.5 x 2.1 x 7.5mm, Positive Pin, Negative Sleeve |
PHYSICAL
| Color | Black |
| Material of Construction | Plastic |
| Rackmountable | No |
| Receiver Unit Dimensions (hwd / cm.) | 2.4 x 6.1 x 5.18 |
| Receiver Unit Dimensions (hwd / in.) | 0.94 x 2.4 x 2.04 |
| Receiver Unit Weight (kg) | 0.08 |
| Receiver Unit Weight (lbs.) | 0.17 |
| Shipping Dimensions (hwd / cm) | 5.59 x 15.75 x 21.59 |
| Shipping Weight (kg) | 0.36 |
| Transmitter Unit Dimensions (hwd / cm.) | 2.4 x 5.5 x 3.45 |
| Transmitter Unit Dimensions (hwd / in.) | 0.94 x 2.17 x 1.36 |
| Transmitter Unit Weight (kg) | 0.08 |
| Transmitter Unit Weight (lbs.) | 0.17 |
ENVIRONMENTAL
| Operating Temperature Range | 32? to 122?F (0? to 50?C) |
| Storage Temperature Range | -4? to 158?F (-20? to 70?C) |
| Relative Humidity | 0 to 85% RH, Non-Condensing |
CONNECTIONS
| Number of Ports | 1 |
| Side A - Connector 1 | USB A (MALE) |
| Side A - Connector 2 | RJ45 (FEMALE) |
| Side B - Connector 1 | USB A (FEMALE) |
| Side B - Connector 2 | RJ45 (FEMALE) |
| Connector Plating | Nickel |
FEATURES & SPECIFICATIONS
| USB Specification | USB 2.0 (up to 480 Mbps) |
| Driver Required | No |
| Recommended Category Cable | Cat6 |
STANDARDS & COMPLIANCE
| External Power Supply Certifications | CCC; CE; DOE; FCC; GS; LPS; TUV; UL; cUL |
| Product Certifications | NOM (Mexico) |
| Product Compliance | RoHS; CE (Europe); REACH; FCC (USA); Trade Agreements Act (TAA) |
WARRANTY & SUPPORT
| Product Warranty Period (Worldwide) | 1-year limited warranty |
