Eaton BHDBT-K-E3SI-ER - HDBASET HDMI OVER CAT5 EXTENDE
$513.50
- Brand
- Eaton
- SKU:
- BHDBT-K-E3SI-ER
- Availability:
- Within 2 Days Shipping

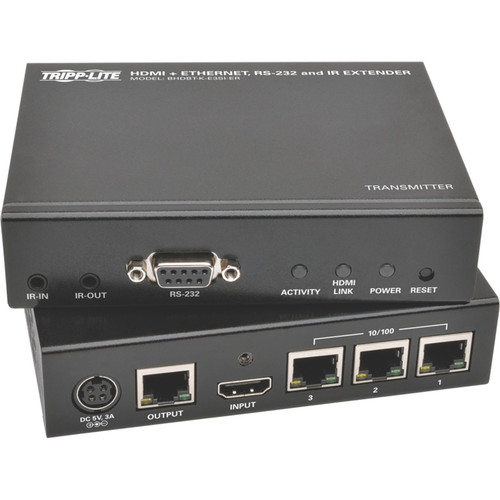

Eaton BHDBT-K-E3SI-ER - HDBASET HDMI OVER CAT5 EXTENDE
Trionics Distributor of Tripp Lite By Eaton,
MPN: BHDBT-K-E3SI-ER
Tech Specs
Specifications
Manufacturer Part Number | BHDBT-K-E3SI-ER |
Brand Name | Tripp Lite |
Product Model | BHDBT-K-E3SI-ER |
Product Name | BHDBT-K-E3SI-ER Video Console/Extender |
Marketing Information | The BHDBT-K-E3SI-ER HDBaseT HDMI over Cat5e/6/6a Extender Kit extends uncompressed HDMI audio and video, RS-232 serial and IR remote control signals up to 500 feet over a single Cat5e/6/6a cable, including a 1920 x 1080(1080p) signal @ 60 Hz. In addition to HDMI, RS-232 and IR signals, this extender kit features three built-in 10/100 Ethernet ports on both the transmitter and receiver units. This allows connected devices, such as a Blu-ray player, cable/satellite box, and HDTV, to communicate with each other and access online content via LAN. You can also control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The two-way IR remote control feature(@ 39 KHz) lets you control your Blu-ray player using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports(ideal for use with Tripp Lite's P569-006-LOCK high-speed HDMI cables with locking connectors) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal. The plug-and-play BHDBT-K-E3SI-ER supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. |
Product Type | Video Extender Transmitter/Receiver |
Technical Information
Connectivity Technology | Wired |
Number of Input Devices Supported | 1 |
Number of Output Devices Supported | 1 |
Maximum Operating Distance | 500 ft |
Video
Graphics Modes | Full HD |
Maximum Video Resolution | 1920 x 1080 |
Interfaces/Ports
Network (RJ-45) | Yes |
HDMI In | Yes |
HDMI Out | Yes |
Serial Port | Yes |
Number of HDMI Inputs | 1 |
Number of HDMI Outputs | 1 |
Media & Performance
Media Type Supported | Twisted Pair |
Twisted Pair Cable Standard | Category 6a |
Miscellaneous
Package Contents |
|
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
Country of Origin | Taiwan |
TAA Compliant | Yes |
Warranty
Limited Warranty | 1 Year |
