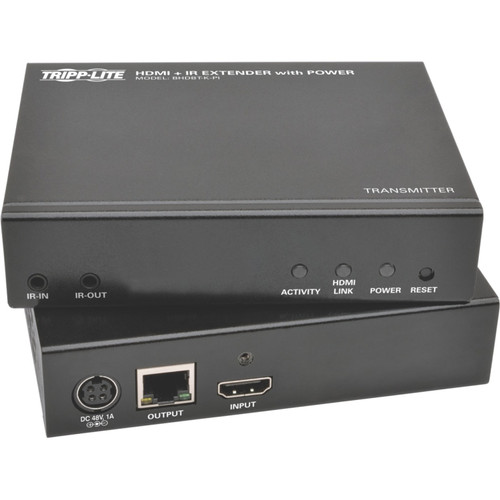

Eaton BHDBT-K-PI - EXTENDER KIT - 4K2K / 1080P
$566.40
- Brand
- Eaton
- SKU:
- BHDBT-K-PI
- Availability:
- Within 2 Days Shipping
Eaton BHDBT-K-PI - EXTENDER KIT - 4K2K / 1080P
Trionics Distributor of Tripp Lite By Eaton,
MPN: BHDBT-K-PI
Tech Specs
Specifications
Manufacturer Part Number | BHDBT-K-PI |
Brand Name | Tripp Lite |
Product Model | BHDBT-K-PI |
Product Name | BHDBT-K-PI Video Console/Extender |
Marketing Information | The BHDBT-K-PI HDBaseT Class B(HDBaseT-Lite) HDMI over Cat5e/6/6a Extender Kit extends uncompressed HDMI audio and video and IR remote control signals up to 230 feet over a single Cat5e/6/6a cable, including video resolutions up to 1920 x 1080(1080p). It also extends an Ultra High Definition(UHD) 3840 x 2160(4K x 2K) @ 24/30Hz signal up to 130 feet.In addition to HDMI and IR signals, this extender kit features built-in PoE technology, which powers the receiver over Cat5e/6/6a cable, eliminating the need for an external power source. The two-way IR remote control feature(@ 39 KHz) lets you control your Blu-ray player or other HDMI source using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports(ideal for use with Tripp Lite's P569-006-LOCK high-speed HDMI cables with locking connectors) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal. The plug-and-play BHDBT-K-PI supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Attach the transmitter and receiver units to a wall, rack or pole with the included mounting hardware. |
Product Type | Video Extender Transmitter/Receiver |
Technical Information
Connectivity Technology | Wired |
Number of Input Devices Supported | 1 |
Number of Output Devices Supported | 1 |
Maximum Operating Distance | 230 ft |
Video
Graphics Modes | 4K |
Maximum Video Resolution | 3840 x 2160 |
Interfaces/Ports
Network (RJ-45) | Yes |
HDMI In | Yes |
HDMI Out | Yes |
Number of Network (RJ-45) Ports | 2 |
Number of HDMI Inputs | 1 |
Number of HDMI Outputs | 1 |
Media & Performance
Media Type Supported | Twisted Pair |
Twisted Pair Cable Standard | Category 6a |
Physical Characteristics
Form Factor |
|
Miscellaneous
Package Contents |
|
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
Country of Origin | Taiwan |
TAA Compliant | Yes |
Warranty
Limited Warranty | 1 Year |
