Eaton BP36V42-3U - BP36V42-3U
Write a Review
Write a Review
Eaton
Eaton BP36V42-3U - BP36V42-3U
$2,520.00
- Brand
- Eaton
- SKU:
- BP36V42-3U
- Condition:
- New

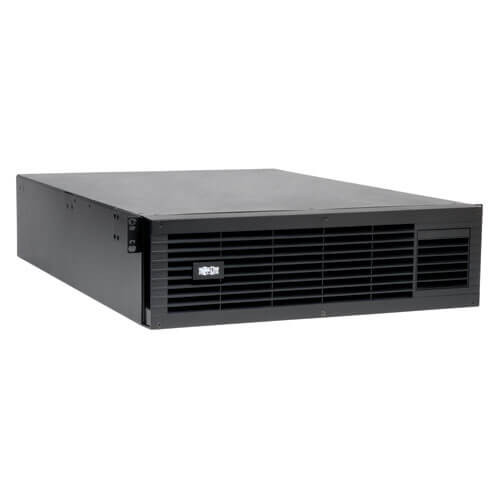

BP36V42-3U rack/tower external battery pack offers extended battery runtime when used in conjunction with expandable 36V rack-mount and tower UPS systems. Includes heavy-gauge cabling with high-current DC connector for safe, simple installation. Included daisy-chain connector enables the connection of additional compatible 36V external battery packs to the host UPS. Included mounting accessories support 3U rack-mount installation in 4-post racks. Options for 2-post center-mounting and upright tower installation available.
Compatible with SMART1000RMXL2U, SMART1200XLHG, SMART1500RMXL2UA, SMART1500RMXLN, SMART1500XL, SMX1200XLHG, SMX1500XLRT2U and other UPS systems that specify the use of this battery pack.
- Offers extended-run UPS operation when used in conjunction with compatible 36V DC UPS systems
- Includes heavy-gauge cabling with high-current DC connectors for simple installation
- Daisychain connector enables the connection of additional compatible 36V external battery packs to the host UPS
- Included mounting brackets support rack-mount installation in 4-post racks using only 3 rack spaces (3U)
- 2POSTRMKITHD option supports balanced two-point center-mounting in 2-post equipment racks
- 2-9USTAND option enables upright tower placement
- BP36V42-3U external battery pack with attached DC cabling
- 4 post compatible mounting hardware
- Owner's manual
OVERVIEW
| UPC Code | 037332123312 |
INPUT
| Input Phase | Single-Phase |
BATTERY
| Expandable Runtime | Yes |
| DC System Voltage (VDC) | 36 |
| UPS Connection | Detachable cable with UPS specific DC connector (36 in length, 6 gauge) |
| Typical Battery Lifespan | 4-6 years typical (North America) |
PHYSICAL
| Material of Construction | Steel |
| Rack Height | 3U |
| External Battery Pack Form Factor | Rack/Tower |
| Included Mounting Accessory Description | Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm) |
| Installation Form Factors Supported with Included Accessories | 4 post 19 inch rackmount |
| Installation Form Factors Supported with Optional Accessories | 2 post rackmount ( 2POSTRMKITWM ); Wallmount ( 2POSTRMKITWM ) |
| Minimum Required Rack Depth (cm) | 71.12 |
| Optional Mounting Accessory Notes | 2POSTRMKITWM enables wall-mount and 2-post rackmount installation |
| Shipping Dimensions (hwd / cm) | 30.48 x 58.42 x 83.82 |
| Shipping Weight (kg) | 83.91 |
| Unit Dimensions (hwd / cm) | 13.3 x 44.45 x 63.5 |
| Unit Weight (kg) | 78.97 |
STANDARDS & COMPLIANCE
| Product Compliance | RoHS; CE (Europe) |
WARRANTY & SUPPORT
| Product Warranty Period (International) | 1-year limited warranty |
