Eaton BP480V100-NIB - BP480V100-NIB
Write a Review
Write a Review
Eaton
Eaton BP480V100-NIB - BP480V100-NIB
$7,841.37
- Brand
- Eaton
- SKU:
- BP480V100-NIB
- Availability:
- Within 2 Days Shipping

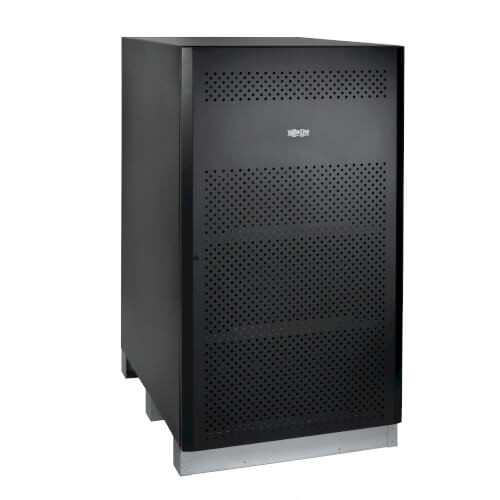

+/-240VDC Backup Battery Pack You Provide the Batteries
The BP480V100-NIB is compatible only with 3-phase S3M30KX-NIB, S3M40KX-NIB, S3M60KX, S3M80KX, S3M100KX, S3M120KX, S3M160KX, S3M200KX and other UPS systems that specify the use of this battery pack. The UPS battery pack includes the steel enclosure and all required internal wiring and accessories for a quantity of 40 user-supplied 100Ah internal batteries (batteries not included). For the same battery pack with internal batteries included, see BP480V100.
Daisy-Chain Multiple Cabinets for Even Longer Extended-Run Operation
Multiple battery pack cabinets may be connected in parallel to provide the 3-phase UPS system with more runtime. Up to three external battery packs may be connected to the S3M30KX-NIB, S3M40KX-NIB, S3M60KX and S3M80KX. The S3M100KX, S3M120KX, S3M160KX and S3M200KX units can handle as many as seven BP480V100-NIBs connected in parallel. Hardwire installation is safe and simple. Circuit breakers provide overcurrent protection. Internal disconnect for battery isolation is included.
One-Year Warranty
The BP480V100-NIB is backed by a one-year warranty, ensuring reliability and performance.
- BP480V100-NIB External Battery Pack - Batteries Not Included
- Cable for jack, 32 in. (81.3 cm), 1/0 AWG
- Attachment hardware for battery cable
- Owners manual
OVERVIEW
| UPC Code | 037332231123 |
INPUT
| Input Phase | 3-Phase |
BATTERY
| Expandable Runtime | Yes |
| DC System Voltage (VDC) | +/- 240VDC |
| UPS Connection | Hardwire (contractor supplies wiring - see Owner's Manual for gauge recommendations) |
| Typical Battery Lifespan | 10 year design lifespan |
PHYSICAL
| Material of Construction | Steel |
| External Battery Pack Form Factor | Tower |
| Installation Form Factors Supported with Included Accessories | Tower |
| Shipping Weight (kg) | 213.60 |
| Unit Dimensions (hwd / cm) | 149,9 x 82,6 x 113,5 |
| Unit Weight (kg) | 157.60 |
STANDARDS & COMPLIANCE
| Product Compliance | UKCA |
WARRANTY & SUPPORT
| Product Warranty Period (Worldwide) | 1-year limited warranty |
