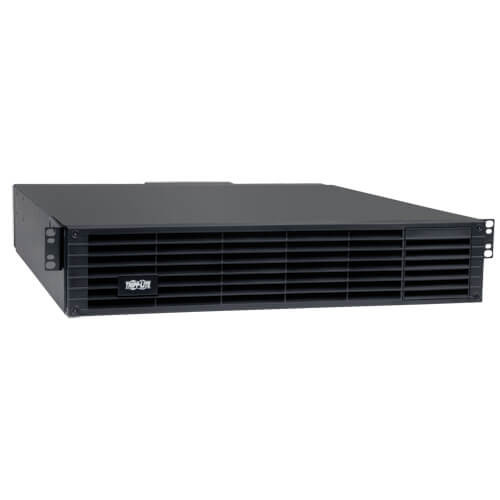

Eaton BP72V18-2US - BP72V18-2US
Write a Review
Eaton
Eaton BP72V18-2US - BP72V18-2US
- Brand
- Eaton
- SKU:
- BP72V18-2US
- Condition:
- New
BP72V18-2US rack/tower external battery pack offers extended battery runtime when used in conjunction with expandable 72V rack-mount or tower UPS systems. Includes heavy-gauge cabling with high-current DC connector for safe, simple installation. Included daisy-chain connector enables the connection of additional compatible 72V external battery packs to the host UPS. Included mounting accessories support 2U rack-mount installation in 4-post racks. Options for 2-point front-rail mounting, 2-post center-mounting, wall-mount and upright tower installation available.
Compatible with these UPS systems: SU3000RTXL2U, SU3000RTXL3U, SU3000RTXLCD2U, SU3000RTXLCD3U, SU3000RTXR3U, SU3000RTXR3UHW, SU3000XL, SU3000XLCD, SUINT3000RTXL2U, SUINT3000RTXL3U and other UPS systems that specify the use of this battery pack.
- Offers extended-run UPS operation when used in conjunction with compatible 72V DC UPS systems
- Includes heavy-gauge cabling with high-current DC connectors for simple installation
- Daisychain connector enables the connection of additional compatible 72V external battery packs to the host UPS
- Included mounting brackets support rack-mount installation in 4-post racks using only 2 rack spaces (2U)
- UPDHDEARKIT option supports two-point front-rail rack-mount installation without rear supports
- 2POSTRMKITWM option supports balanced two-point center-mounting in 2-post equipment racks
- 2POSTRMKITWM option also enables wallmount installation
- 2-9USTAND option enables upright tower placement
- BP72V18-2US external battery pack with attached DC cabling
- 4 post compatible mounting hardware
- Owner's manual
OVERVIEW
| UPC Code | 037332178008 |
INPUT
| Input Phase | Single-Phase |
BATTERY
| DC System Voltage (VDC) | 72 |
| UPS Connection | Attached cable with black 3-point DC connector |
| Typical Battery Lifespan | 4-6 years typical (North America) |
PHYSICAL
| Material of Construction | Steel |
| Rack Height | 2U |
| External Battery Pack Form Factor | Rack/Tower |
| Installation Form Factors Supported with Included Accessories | 4 post 19 inch rackmount |
| Installation Form Factors Supported with Optional Accessories | 2 post rackmount ( 2POSTRMKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM ) |
| Minimum Required Rack Depth (cm) | 60.96 |
| Shipping Dimensions (hwd / cm) | 22.86 x 71.12 x 66.04 |
| Shipping Weight (kg) | 57.15 |
| Unit Dimensions (hwd / cm) | 8,6 x 44 x 52,8 |
| Unit Weight (kg) | 40.01 |
STANDARDS & COMPLIANCE
| Product Compliance | RoHS; CE (Europe) |
WARRANTY & SUPPORT
| Product Warranty Period (International) | 1-year limited warranty |
| Optional Coverage | 3 year, 5 year, next day and on-site warranty coverage available |
