Eaton DWT1327S - DWT1327S
Write a Review
Write a Review
Eaton
Eaton DWT1327S - DWT1327S
$34.00
- Brand
- Eaton
- SKU:
- DWT1327S
- Condition:
- New

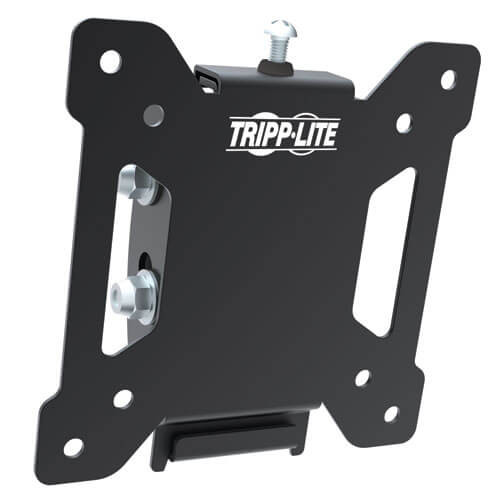

The VESA-compliant DWT1327S Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 13 to 27 inches. A -15° to +10° tilt capability minimizes glare and provides comfortable viewing from multiple angles. Low-profile mount is concealed behind the display to give a sleek, professional appearance. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 88 lbs (39.9 kgs). Comes fully assembled for quick mounting to the wall with included hardware. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 75 x 75 mm, 75 x 100 mm, 100 x 75 mm and 100 x 100 mm.
Features
Mounts Your TV or Monitor to the Wall
- Fits most flat-panel televisions, monitors and other displays from 13 to 27 in.
- Ideal for classrooms, boardrooms, hotels, bars and restaurants
- Mounts out of sight behind display for sleek, professional appearance
- Mounting hardware included
Convenient One-Touch Adjustment
- -15° to +10° tilt capability provides comfortable viewing from multiple angles
- Improves viewing angles in applications where audience is below the display
Durable Metal Construction
- Supports up to 88 lbs (39.9 kgs)
- Scratch-resistant powder-coated finish
- Fully assembled for immediate installation
VESA Compliance
- Supports the following VESA mounting hole patterns: 75 x 75 mm, 75 x 100 mm, 100 x 75 mm and 100 x 100 mm.
Composition
- DWT1327S Tilt Wall Mount for 13" to 27" TVs and Monitors
- (4) M4 screws
- (4) M5 screws
- (4) D5 washers
- (2) Anchor bolts
- (2) Concrete anchors
- Owners manual
Specifications
OVERVIEW
| UPC Code | 037332183576 |
| Device Compatibility | Monitor/HDTV |
PHYSICAL
| Color | Black |
| Material of Construction | Steel |
| VESA Pattern (mm) | 100x100; 100x75; 75x100; 75x75 |
| Motion | Tilt |
| Mounting Location | Wall |
| Degrees of Motion | -15/+10 Tilt |
| Minimum Screen Size (cm) | 33.02 |
| Maximum Screen Size (cm) | 68.58 |
| Maximum Weight Capacity (kg) | 40 |
| Number of Displays | 1 |
| Shipping Dimensions (hwd / cm) | 2.54 x 12.19 x 13.21 |
| Shipping Weight (kg) | 0.41 |
| Unit Dimensions (hwd / cm) | 12 x 19.6 x 4.1 |
| Unit Weight (kg) | 0.46 |
FEATURES & SPECIFICATIONS
| Cord Management | No |
| Tools Necessary | Yes |
STANDARDS & COMPLIANCE
| Product Compliance | RoHS; RoHS3; REACH |
WARRANTY & SUPPORT
| Product Warranty Period (Worldwide) | 5-year limited warranty |
