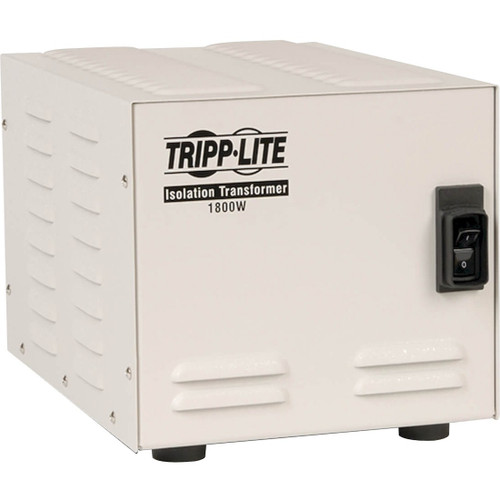

Eaton IS1800HG - IS1800HG

Isolator Series UL60601-1 Listed Medical Grade Isolation Transformers offer line isolation, continuous noise filtering and enhanced common mode surge suppression. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protection of sensitive electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral-to-ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment, and an inexpensive alternative to dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients and harmonics generated by other on-site loads and utility or lightning related surge conditions. Additional surge suppression components placed at the line input and output combined with full line isolation offer continuous filtering of a full range of power line noise in all modes. Active transformer filtering provides continuous common-mode noise rejection with no wearable parts. Unique ability to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEE

• Hospital Grade Outlets and Plug
• 20A circuit breaker
• Total Harmonic Distortion: Less than 1%
• Rugged all-metal unit housing
• Cooling Method: Convection
• Noise Suppression Rating: 35-65 DB
• Suppression Joule Rating: 1190 (1020 input / 170 output)
• Efficiency: 96%

• Isolator IS1800HG 6 outlets Transformer
• IS1800HG Isolation Transformer
• NEMA5-15P replacement plug
• User manual with warranty information

• UL
• cUL
