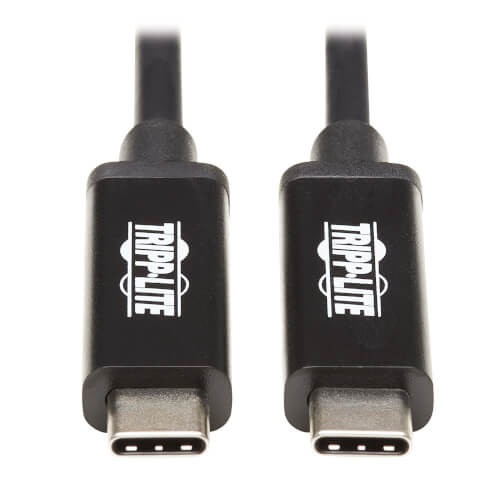

Eaton MTB3-02M-5A-AB - 2M TBT3 ACTIVE CABLE,40GBPS
$101.57
- Brand
- Eaton
- SKU:
- MTB3-02M-5A-AB
- Availability:
- Within 2 Days Shipping
Active Cable Connects Thunderbolt 3 Devices, Including MacBooks and Chromebooks
This Thunderbolt 3 cable allows you to connect one Thunderbolt 3-enabled device to another, including MacBooks, Ultrabooks, Chromebooks, external hard drives and docking stations. It transmits full 4K x 2K (3840 x 2160 at 60 Hz) DisplayPort video when used with Thunderbolt 3-enabled monitors. The cable? two-meter length makes it easy to carry in your briefcase or laptop bag for quick video connections and file transfers on the go.
Charges Devices and Transfers Data 4 Times Faster Than USB 3.1 Gen 2
The MTB3-02M-5A-AB supports bidirectional Thunderbolt 3 data transfer speeds up to a sizzling 40 Gbps, which is four times as fast as USB 3.1 Gen 2, making it an ideal cable for downloading 4K video files and transmitting them to a 4K monitor or television with a Thunderbolt 3-enabled input. Transceivers in each connector regulate the transfer of data throughout the entire length of the active cable. The PD Charging 2.0 cable also provides power output up to 5 amps (100 watts), which is sufficient for fast-charging, syncing and powering most large-capacity devices.
Reversible Thunderbolt 3 Connectors Attach in Either Direction
Unlike traditional USB cables that connect in only one direction, the reversible Thunderbolt 3 male connectors plug into a Thunderbolt 3 or USB-C port in either direction for a fumble-free connection every time. Note: both ends must be connected to a Thunderbolt 3 port to achieve 40 Gbps transfer speeds.
- MTB3-02M-5A-AB Thunderbolt 3 Cable, M/M, 2 m, Black
OVERVIEW
UPC Code | 037332242013 |
Technology | Thunderbolt |
POWER
Power Consumption (Watts) | 1.5 |
USB Power Delivery (PD) Charging Support | Yes |
USB Power Delivery (PD) Charging Specification | 2.0 |
PHYSICAL
Color | Black |
Cable Jacket Color | Black |
Cable Outer Diameter (OD) | +/- 4.75 mm |
Cable Length (m) | 2.01 |
Cable Length (cm) | 200 |
ENVIRONMENTAL
Operating Temperature Range | 32? to 122?F (0? to 50?C) |
Storage Temperature Range | -4? to 185?F (-20? to 85?C) |
Relative Humidity | 25% ~ 85% RH |
Power Provided to Connected Device(s) | 5A (100W) Power Delivery |
CONNECTIONS
Side A - Connector 1 | THUNDERBOLT 3 (Type-C MALE) |
Side B - Connector 1 | THUNDERBOLT 3 (Type-C MALE) |
Connector Plating | Nickel |
FEATURES & SPECIFICATIONS
Data Transfer Rate | 40 Gbps |
STANDARDS & COMPLIANCE
Product Certifications | UL Listed |
Product Compliance | RoHS; CE (Europe); REACH; FCC (USA) |
WARRANTY & SUPPORT
Product Warranty Period (Worldwide) | 3-year limited warranty |
