Eaton N237-F18N-WHSH - 18" SURFMNT RJ45 M/110 IDC
Write a Review
Write a Review
Eaton
Eaton N237-F18N-WHSH - 18" SURFMNT RJ45 M/110 IDC
$19.98
- Brand
- Eaton
- SKU:
- N237-F18N-WHSH
- Availability:
- Within 2 Days Shipping
Features
Specifically Designed for Use in Surveillance and Other PoE Applications
This Cat6 keystone jack assembly is recommended for above-ceiling applications where the use of wall plates is impractical or otherwise not ideal. The 18-inch cable connects your Cat6 premise wiring to an IP camera, wireless access point (WAP), LED lighting scheme, sound equipment or other PoE+ device installed high on a wall, ceiling or any other location far from a convenient power outlet.
Supports Power over Ethernet to Simplify Installation and Cut Down on Expenses
Because the N237-F18N-WHSH supplies up to 100W of power to the connected Type 4 PoE or PoE++ device, it saves you the expense and effort of purchasing, connecting and installing new electrical wiring, outlets and individual power supplies.
CMR-LP (0.5A) Certified for Cable Installations with Increased Power Levels
UL's Limited Power (LP) certification indicates the N237-F18N-WHSH has been evaluated to handle the marked current under installation scenarios without exceeding the temperature rating of the cable. This CMR-LP-certified cable provides a simple way to prepare installations for increased power levels without having to worry about susceptible issues caused by excessive heat.
Composition
- N237-F18N-WHSH Cat6 Keystone Jack Cable Assembly, RJ45 M/F, 18 in., Blue
Specifications
OVERVIEW
| UPC Code | 037332250551 |
| Accessory Type | Cable Assembly Kit |
| Technology | Cat6; PoE |
| Accessory Class | Networking Accessories |
PHYSICAL
| Color | Blue |
| Cable Jacket Color | Blue |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | CMR; CMR-LP; LP5 |
| Cable Shielding | UTP |
| Cable Outer Diameter (OD) | 6.5 +/- 0.3 mm |
| Cable Length (m) | 0.46 |
| Cable Length (cm) | 45.7 |
ENVIRONMENTAL
| Operating Temperature Range | 14? to 140?F (-10? to 60?C) |
| Storage Temperature Range | -4? to 158?F (-20? to 70?C) |
| Relative Humidity | 0% to 90% RH, Non-Condensing |
COMMUNICATIONS
| Network Compatibility | 1 Gbps (Gigabit) |
CONNECTIONS
| PoE Capability | 100W (802.3bt) |
| PoE Power Budget (Watts) | 24 |
| Side A - Connector 1 | RJ45 (MALE) |
| Side B - Connector 1 | RJ45 (FEMALE) |
| Contact Plating | Gold |
| PoE Type | Type 4 High-Power (100W, IEEE 802.3bt) |
STANDARDS & COMPLIANCE
| Product Compliance | Trade Agreements Act (TAA) |
WARRANTY & SUPPORT
| Product Warranty Period (Worldwide) | 3-year limited warranty |
0 Reviews Hide Reviews Show Reviews
Eaton
Eaton N237A-F18N-WHSH - 18" CAT6A STP RJ45 MF SURFMNT
$17.93
Features Specifically Designed for Use in Surveillance and Other PoE ApplicationsThis Cat6a keystone jack assembly is recommended for above-ceiling applications where the use of wall plates is...
Eaton
Eaton N237-P18N-WHSH - 18" CAT6 SURFMOUNT,RJ45-110IDC
$13.53
Features Specifically Designed for Use in Surveillance and Other PoE Applications This Cat6 surface-mount assembly is recommended for above-ceiling applications where the use of wall plates is...
Eaton
Eaton N237A-P18N-WHSH - CAT6A SHLD SMBOX,18" RJ45
$14.63
Features Specifically Designed for Use in Surveillance and Other PoE Applications This Cat6a surface-mount assembly is recommended for above-ceiling applications where the use of wall plates is...
Eaton

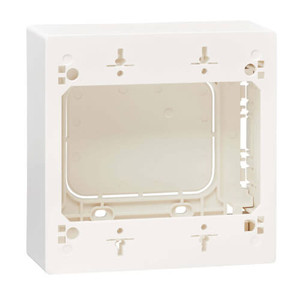

Eaton N080-SMB2-WH - DOUBLGANG SURFMNT BOX,WHITE
