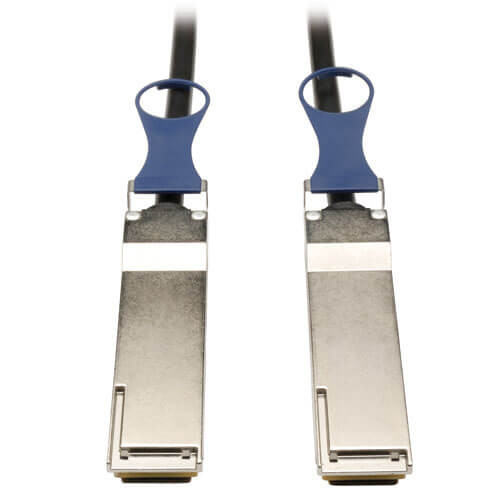

Eaton N282-02M-BK - 40GB QSFP+INFINBD CABLE,2M
Write a Review
Write a Review
Eaton
Eaton N282-02M-BK - 40GB QSFP+INFINBD CABLE,2M
$95.68
- Brand
- Eaton
- SKU:
- N282-02M-BK
- Availability:
- Within 2 Days Shipping
- 2 Meter QSFP+ tp QSFP+ 40Gb Passive DAC Copper Infiniband cable
- Meets or Exceeds strict 40-Gigabit Ethernet 40GBase-CR4 standards
- SDR, DDR, and QDR Compatible
- QSFP+ to QSFP+ 30AWG SFF-8436 compliant cable and connector
- Up to 10.3125 Gbps transfer rate per channel ( 40Gb aggregate )
- Multi-platform support for 40Gb, SAS, Fibre Channel, and SONET
- Zinc die-cast QSFP+ connectors with "Pull-to-Release" latching
- Fully compliant to latest QSFP+ MSA ( Multi Source Agreement )
- Lower port cost and reduced power budget vs Fiber Optics
- RoHS, SFF-8436, and IEEE 802.3ba Compliant
- BER better than 10¹²
- 2 Meter, QSFP+ to QSFP+ High Speed Passive Copper 40GB Cable
OVERVIEW
| UPC Code | 037332181558 |
| Cable Type | Passive |
| Compatible Brand | Cisco |
PHYSICAL
| Color | Black |
| Cable Jacket Color | Black |
| Cable Jacket Material | PVC |
| Cable Outer Diameter (OD) | 6.5mm |
| Cable Length (m) | 2.01 |
| Cable Length (cm) | 201.168 |
| Minimum Bend Radius | 38mm |
| Shipping Dimensions (hwd / cm) | 0.64 x 28.70 x 36.07 |
| Shipping Weight (kg) | 0.23 |
ENVIRONMENTAL
| Operating Temperature Range | 32° to 158°F (0° to 70°C) |
| Storage Temperature Range | -4° to 185°F (-20° to 85°C) |
| Operating Humidity Range | 5% to 85% RH |
| Storage Humidity Range | 5% to 85% RH |
COMMUNICATIONS
| Network Compatibility | 40 Gbps |
| IEEE Standards Supported | 802.3BA |
CONNECTIONS
| Side A - Connector 1 | QSFP+ (MALE) |
| Side B - Connector 1 | QSFP+ (MALE) |
STANDARDS & COMPLIANCE
| Product Compliance | MSA SFF-8436; RoHS |
WARRANTY & SUPPORT
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
