Eaton N366-02M-AP - 2M LCSC APC DUP SMF FIBER CABL
$48.04
- Brand
- Eaton
- SKU:
- N366-02M-AP
- Availability:
- Within 2 Days Shipping
- LC to SC/APC (Angle Physical Contact), 2 Meter Fiber Patch cable
- Manufactured from 9/125 duplex (zipcord) fiber
- PVC jacket
- Length: 1-meter. Connectors: 2 SC (Green ) and 2 LC connectors on each end
- Insertion loss testing performed on every connector (0.2db typical) and provided with cable
- Beveled edge on ends of glass makes insertion of plug a breeze
- Fiber made from glass (not a polymer)
- Fiber optic distributed data interface (FDDI) rated
- OFNR (riser rated)
- 2 Meter (6-ft.) Duplex SMF 9/125 Patch Cable, LC to SC/APC
OVERVIEW
| UPC Code | 037332150967 |
| Technology | Singlemode |
| Optical Mode | OS2 |
PHYSICAL
| Cable Jacket Color | Yellow |
| Connector Color | Green; Blue; White |
| Cable Jacket Material | LSZH |
| Cable Jacket Rating | OFNR |
| Clad Diameter (microns) | 125 |
| Core Diameter (microns) | 9 |
| Number of Fibers | 2 |
| Cable Length (m) | 2.01 |
| Minimum Bend Radius | 20 mm (Dynamic); 10 mm (Static) |
| Shipping Dimensions (hwd / cm) | 22.86 x 17.78 x 1.27 |
| Shipping Weight (kg) | 0.03 |
| Fiber Cable Length | 2M (6.6 ft) |
ENVIRONMENTAL
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
COMMUNICATIONS
| Network Compatibility | 1 Gbps (Gigabit); 10 Gbps; 25 Gbps; 40 Gbps; 100 Gbps; 400 Gbps |
| Attenuation @ 1310NM | 0.36 dB/km |
| Attenuation @ 1550NM | 0.22 dB/km |
| Insertion Loss | ? 0.30 dB |
CONNECTIONS
| Side A - Connector 1 | LC DUPLEX (MALE) |
| Side B - Connector 1 | SC DUPLEX (MALE) |
| Endface Polish | APC; UPC |
STANDARDS & COMPLIANCE
| Product Compliance | RoHS; REACH |
WARRANTY & SUPPORT
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
0 Reviews Hide Reviews Show Reviews
Eaton
Eaton N366-02M - 2M LCSC DUP SMF 8.3 FIBER
$17.94
Manufactured from 9/125 duplex (zipcord) fiberPVC jacketLength: 2-meter. Connectors: 2 SC and 2 LC connectors on each endInsertion loss testing performed on every connector (0...
Eaton
Eaton N366-03M-AP - 3M LCSC APC DUP SMF FIBER CABL
$50.05
LC to SC/APC (Angle Physical Contact), 3 Meter Fiber Patch cableManufactured from 9/125 duplex (zipcord) fiberPVC jacketLength: 1-meter. Connectors: 2 SC (Green ) and 2 LC...
Eaton

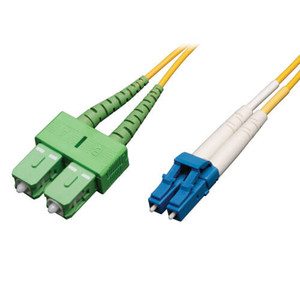

Eaton N366-01M-AP - 1M LCSC APC DUP SMF 8.3 FIBER
