Eaton N368-20M - 20M LCST DUP SMF 8.3 FIBER CAB
Write a Review
Write a Review
Eaton
Eaton N368-20M - 20M LCST DUP SMF 8.3 FIBER CAB
$42.25
- Brand
- Eaton
- SKU:
- N368-20M
- Availability:
- Within 2 Days Shipping
- Manufactured from 9/125 duplex (zipcord) fiber
- PVC jacket
- Length: 20-meter ( 66ft ) Connectors: 2 LC and 2 ST connectors on each end
- Beveled edge on ends of glass makes insertion of plug a breeze
- Fiber made from glass (not a polymer)
- Fiber optic distributed data interface (FDDI) rated
- OFNR (riser rated)
- 20-meter ( 66ft ) Duplex Singlemode Fiber Patch Cable, LC/ST
OVERVIEW
| UPC Code | 037332157959 |
| Technology | Singlemode |
| Optical Mode | OS2 |
PHYSICAL
| Cable Jacket Color | Yellow |
| Connector Color | Black; Blue; White |
| Cable Jacket Material | LSZH |
| Cable Jacket Rating | OFNR |
| Clad Diameter (microns) | 125 |
| Core Diameter (microns) | 9 |
| Number of Fibers | 2 |
| Cable Length (m) | 20.00 |
| Minimum Bend Radius | 20 mm (Dynamic); 10 mm (Static) |
| Shipping Dimensions (hwd / cm) | 22.86 x 17.78 x 1.27 |
| Shipping Weight (kg) | 0.15 |
| Fiber Cable Length | 20M (65.6 ft) |
ENVIRONMENTAL
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
COMMUNICATIONS
| Network Compatibility | 1 Gbps (Gigabit); 10 Gbps; 25 Gbps; 40 Gbps; 100 Gbps; 400 Gbps |
| Attenuation @ 1310NM | 0.36 dB/km |
| Attenuation @ 1550NM | 0.22 dB/km |
| Insertion Loss | ? 0.30 dB |
CONNECTIONS
| Side A - Connector 1 | LC DUPLEX (MALE) |
| Side B - Connector 1 | ST DUPLEX (MALE) |
| Endface Polish | UPC |
STANDARDS & COMPLIANCE
| Product Compliance | RoHS; REACH |
WARRANTY & SUPPORT
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
0 Reviews Hide Reviews Show Reviews
Eaton
Eaton N368-30M - 30M LCST DUP SMF 8.3 FIBER
$53.22
This singlemode duplex fiber optic LC/ST Ethernet cable is manufactured from 9/125 zipcord fiber. The cable has LC connectors on one end, ST connectors on the other, a PVC jacket, and is FDDI and...
Eaton
Eaton N368-07M - 7M LCST DUP SMF 8.3 FIBER
$33.32
Manufactured from 9/125 duplex (zipcord) fiberPVC jacketLength: 7-meters/Connectors: 2 LC and 2 ST connectors on each endInsertion loss testing performed on every connector (0...
Eaton
Eaton N368-25M - 25M LCST DUP SMF 8.3 FIBER
$47.53
Fast, Clear Data Transmission Through Your LANTwice the bandwidth throughput of multimode cableIdeal for network equipment that requires singlemode fiber optic patch...
Eaton
Eaton N368-10M - 10M LCST DUP SMF 8.3 FIBER
$28.03
Manufactured from 9/125 duplex (zipcord) fiberPVC jacketLength: 10-meter ( 33ft ) Connectors: 2 LC and 2 ST connectors on each endBeveled edge on ends of glass makes insertion...
Eaton
Eaton N368-01M - 1M LCST DUP SMF 8.3 FIBER
$21.94
Manufactured from 9/125 duplex (zipcord) fiberPVC jacketLength: 1-meter ( 3ft ). Connectors: 2 LC and 2 ST connectors on each endInsertion loss testing performed on every...
Eaton

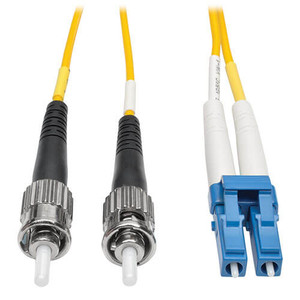

Eaton N368-50M - 50M LCST DUP SMF 8.3 FIBER
$75.40
Fast, Clear Data Transmission Through Your LANTwice the bandwidth throughput of multimode cableIdeal for network equipment that requires singlemode fiber optic patch...
Eaton

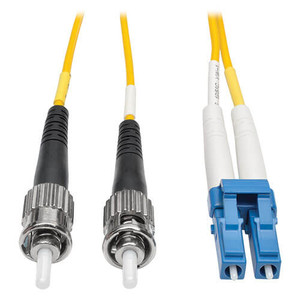

Eaton N368-05M - 5M LCST DUP SMF 8.3 FIBER
