Eaton N370-05M-T - 5M FIBER PATCH CBL W PUSH/PULL
Write a Review
Write a Review
Eaton
Eaton N370-05M-T - 5M FIBER PATCH CBL W PUSH/PULL
$49.00
- Brand
- Eaton
- SKU:
- N370-05M-T
- Condition:
- New
Fast, Clear Data Transmission Through Your LAN
LC Connectors with Push/Pull Tabs
Superior Construction for Error-Free Signal Transfer
- Data transfer speeds up to 10 Gbps
- Ideal for network equipment that requires singlemode fiber optic patch cables
- Attenuation loss meets or exceeds latest industry standards
LC Connectors with Push/Pull Tabs
- Push/pull tab connectors easy to install and remove with one hand
- Sturdy dual LC connectors tested to meet stringent insertion loss standards
Superior Construction for Error-Free Signal Transfer
- 9/125 duplex (zipcord) fiber made from glass
- Beveled edge on glass ends for easy plug insertion
- Yellow-colored for identification as singlemode
- FDDI- and OFNR-rated
- N370-05M-T Duplex Singlemode 9/125 Fiber Patch Cable, Push/Pull Tabs, 5 m
OVERVIEW
| UPC Code | 037332202789 |
| Technology | Singlemode |
| Optical Mode | OS2 |
PHYSICAL
| Cable Jacket Color | Yellow |
| Connector Color | Blue; White |
| Cable Jacket Material | LSZH |
| Cable Jacket Rating | OFNR |
| Clad Diameter (microns) | 125 |
| Core Diameter (microns) | 9 |
| Number of Fibers | 2 |
| Cable Length (m) | 5.00 |
| Minimum Bend Radius | 20 mm (Dynamic); 10 mm (Static) |
| Shipping Dimensions (hwd / cm) | 22.86 x 17.78 x 1.27 |
| Shipping Weight (kg) | 0.05 |
| Fiber Cable Length | 5M (16.4 ft) |
ENVIRONMENTAL
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
COMMUNICATIONS
| Network Compatibility | 1 Gbps (Gigabit); 10 Gbps; 25 Gbps; 40 Gbps; 100 Gbps; 400 Gbps |
| Attenuation @ 1310NM | 0.36 dB/km |
| Attenuation @ 1550NM | 0.22 dB/km |
| Insertion Loss | ? 0.30 dB |
CONNECTIONS
| Side A - Connector 1 | LC DUPLEX (MALE) |
| Side B - Connector 1 | LC DUPLEX (MALE) |
| Endface Polish | UPC |
FEATURES & SPECIFICATIONS
| Push/Pull Tabs | Yes |
STANDARDS & COMPLIANCE
| Product Compliance | RoHS; REACH |
WARRANTY & SUPPORT
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
0 Reviews Hide Reviews Show Reviews
Eaton
Eaton N370-01M-T - 1M FIBER PATCH CBL W PUSH/PULL
$43.00
Fast, Clear Data Transmission Through Your LANData transfer speeds up to 10 GbpsIdeal for network equipment that requires singlemode fiber optic patch cablesAttenuation loss...
Eaton
Eaton N370-03M-T - 3M FIBER PATCH CBL W PUSH/PULL
$51.00
Fast, Clear Data Transmission Through Your LANData transfer speeds up to 10 GbpsIdeal for network equipment that requires singlemode fiber optic patch cablesAttenuation loss...
Eaton
Eaton N370-02M-T - 2M FIBER PATCH CBL W PUSH/PULL
$49.00
Fast, Clear Data Transmission Through Your LANData transfer speeds up to 10 GbpsIdeal for network equipment that requires singlemode fiber optic patch cablesAttenuation loss...
Eaton
Eaton N820-05M-T - 5M,HI DENSITY 10GB PATCH CBL
$52.00
Eaton N820-05M-T - 5M,HI DENSITY 10GB PATCH CBLTrionics Distributor of Tripp Lite By Eaton,MPN: N820-05M-T Tech SpecsSpecificationsManufacturer Part NumberN820-05M-T
Eaton

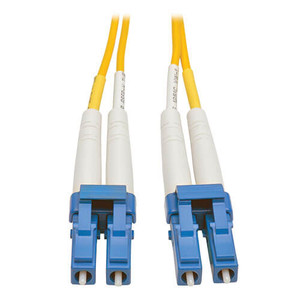

Eaton N370-05M - 5M LCLC DUP SMF 8.3 FIBER
