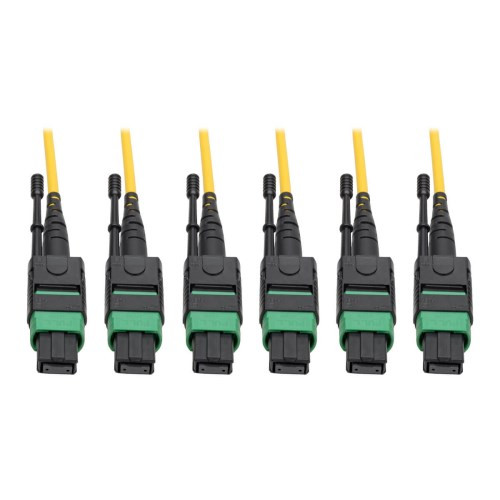

Eaton N392-45M-3X8-AP - 45M MTP 24STRAND SLIM TRUNK
Write a Review
Write a Review
Eaton
Eaton N392-45M-3X8-AP - 45M MTP 24STRAND SLIM TRUNK
$1,176.00
- Brand
- Eaton
- SKU:
- N392-45M-3X8-AP
- Condition:
- New
9/125 Rated Singlemode Cable for 40/100 Gb Ethernet Applications
Factory-Terminated MTP/MPO APC Connectors with Push/Pull Tabs
- Designed to extend high-density connections between network equipment in telecom rooms and data centers
- Recommended for patching between data center MDFs and IDFs
- Optimized for QSFP+ 40GBASE-PLR4 and QSFP28 100GBASE-PSM4 networks
- 6 mm dual plenum-rated jacket and bend-insensitive fiber perfect for ceilings, walls and ducts
- Yellow-colored for identification as a singlemode cable
Factory-Terminated MTP/MPO APC Connectors with Push/Pull Tabs
- 8-fiber female connectors 12 times denser than SC connectors
- Push/pull tab connectors easy to install and remove with one hand
- Angled connectors prevent light from reflecting back into laser
- 100% tested for low insertion loss and back reflection
- N392-45M-3X8-AP MTP/MPO Singlemode Slim Trunk Cable, Yellow, 45 m
OVERVIEW
| UPC Code | 037332205483 |
| Technology | Singlemode |
| Optical Mode | OS2 |
PHYSICAL
| Cable Jacket Color | Yellow |
| Connector Color | Green; Black |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | OFNP |
| Clad Diameter (microns) | 125 |
| Core Diameter (microns) | 9 |
| Number of Fibers | 24 |
| Cable Length (m) | 45.00 |
| Minimum Bend Radius | 20 mm (Dynamic); 10 mm (Static) |
| Shipping Dimensions (hwd / cm) | 11.99 x 26.01 x 26.01 |
| Shipping Weight (kg) | 1.90 |
| Fiber Cable Length | 45M (147.6 ft) |
ENVIRONMENTAL
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
COMMUNICATIONS
| Network Compatibility | 40 Gbps; 100 Gbps; 400 Gbps |
| Attenuation @ 1310NM | 0.36 dB/km |
| Attenuation @ 1550NM | 0.22 dB/km |
| Insertion Loss | ? 0.70 dB |
CONNECTIONS
| Side A - Connector 1 | (3) 8-STRAND MTP/MPO (FEMALE) |
| Side B - Connector 1 | (3) 8-STRAND MTP/MPO (FEMALE) |
| Endface Polish | APC |
FEATURES & SPECIFICATIONS
| Push/Pull Tabs | Yes |
| Breakout | Yes |
| Trunk | Yes |
STANDARDS & COMPLIANCE
| Product Compliance | RoHS; REACH |
WARRANTY & SUPPORT
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
