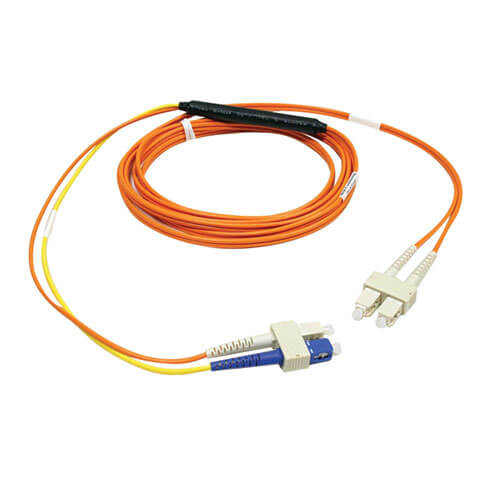

Eaton N426-03M - 3M SCSC DUP MD,COND FIBER
Write a Review
Write a Review
Eaton
Eaton N426-03M - 3M SCSC DUP MD,COND FIBER
$129.60
- Brand
- Eaton
- SKU:
- N426-03M
- Availability:
- Within 2 Days Shipping
- Use Singlemode Transceivers on Multimode Fiber Backbones
- 62.5/125 and 9/125
- Offsets the Singlemode Laser launch from the center of a Multimode fiber
- Available in a variety of connector combinations
- 3 Meter SC/SC Mode Conditioning Cable
OVERVIEW
| UPC Code | 037332127297 |
| Optical Mode | OM1 |
PHYSICAL
| Cable Jacket Color | Orange; Yellow |
| Connector Color | Gray; Blue |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | OFNP |
| Cable Outer Diameter (OD) | 2.85±0.1 mm x 5.85±0.2 mm |
| Clad Diameter (microns) | 125 |
| Core Diameter (microns) | 62.5 |
| Number of Fibers | 2 |
| Cable Length (m) | 2.99 |
| Minimum Bend Radius | 20 mm (Dynamic); 10 mm (Static) |
| Shipping Dimensions (hwd / cm) | 0.64 x 14.48 x 15.49 |
| Shipping Weight (kg) | 0.05 |
| Fiber Cable Length | 3M (9.8 ft) |
ENVIRONMENTAL
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
COMMUNICATIONS
| Attenuation @ 850NM | 3.0 dB/km |
| Insertion Loss | MM to MM ? 0.20 dB; MM to SM ? 0.30 dB |
CONNECTIONS
| Side A - Connector 1 | SC DUPLEX (MALE) |
| Side B - Connector 1 | SC DUPLEX (MALE) |
| Endface Polish | PC |
STANDARDS & COMPLIANCE
| Product Compliance | RoHS; REACH |
WARRANTY & SUPPORT
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
