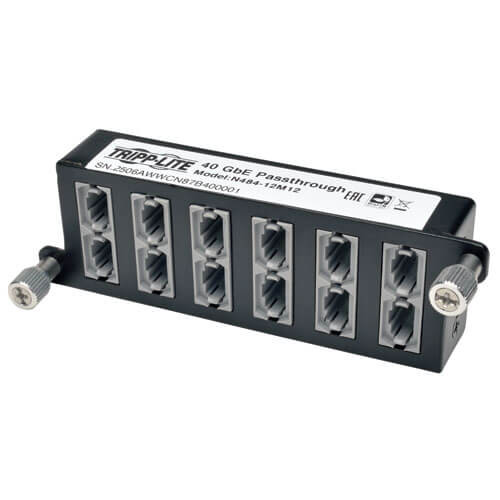

Eaton N484-12M12 - 40GBE PASS THROUGH CASSETTE
Write a Review
Write a Review
Eaton
Eaton N484-12M12 - 40GBE PASS THROUGH CASSETTE
$361.40
- Brand
- Eaton
- SKU:
- N484-12M12
- Availability:
- Within 2 Days Shipping
The N484-12M12 is a high-density 40 Gb pass-through cassette, with (x12) 12-Fiber MTP/MPO connections. Designed specifically for use with N484-00U and N484-01U chassis. Up to four cassettes per N484-01U or one cassette per N484-00U. Each MTP/MPO connector is rated for up to 40 GbE, with an extremely low insertion loss of 0.35db, well under the IEEE 802.3ae maximum channel loss spec of <25db. Guaranteed compatibility when used with recommended cabling. Designed specifically for use with N842-, N844- and N845-Series cables. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy-duty 1.0mm cold-rolled steel.
- High Density Fiber Cassette for use with N484-00U and N484-01U chassis'
- 40 Gb Pass-through Cassette, with (x12) 12-Fiber MTP/MPO connections
- Max insertion loss of 0.35dB falls well under the IEEE 802.3ae maximum channel loss spec of <25dB
- Guaranteed compatibility when used with recommended cabling
- Designed specifically for use with cables, such as the N842-, N844- and N845-Series cables
- Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required
- Factory terminated connectors reduce the time and labor required of field connector terminations
- Housing made of heavy duty, 1.0mm Cold Rolled Steel
- Includes dust caps for unused ports
- N484-12M12 40GbE Pass-Through Cassette - (x12) 12-Fiber MTP/MPO ( Female )
- Quick Start Guide
OVERVIEW
| UPC Code | 037332187215 |
| Technology | Fiber |
PHYSICAL
| Color | Black |
| Shipping Dimensions (hwd / cm) | 5.99 x 20.07 x 3.71 |
| Shipping Weight (kg) | 0.22 |
| Unit Weight (kg) | 0.14 |
ENVIRONMENTAL
| Operating Temperature Range | -4° to 122°F (-20° to 50°C) |
CONNECTIONS
| Number of Ports | 12 |
| Side A - Connector 1 | 12-STRAND MTP/MPO (FEMALE) |
| Side B - Connector 1 | 12-STRAND MTP/MPO (FEMALE) |
STANDARDS & COMPLIANCE
| Product Compliance | RoHS; REACH |
WARRANTY & SUPPORT
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
0 Reviews Hide Reviews Show Reviews
Eaton
Eaton N482-12M12-X2 - 40GBE PASS-THROUGH CASSETTE
$367.90
The N482-12M12-X2 40 GB Pass-Through Cassette works in tandem with N482-01U or N482-02U Fiber Enclosure Panels to create up to twelve 12-fiber MTP/MPO connections in high-density network applications...
Eaton
Eaton N484-3M8-LC12 - 40GBE/10GBE BREAKOUT CASSETTE
$598.00
The N484-3M8-LC12 40/100Gb to 10/25Gb Breakout Cassette works in tandem with N484-01U or N484-00U chassis to connect 12 LC duplex fiber cables with three 8-fiber MTP/MPO connections in high-density...
Eaton

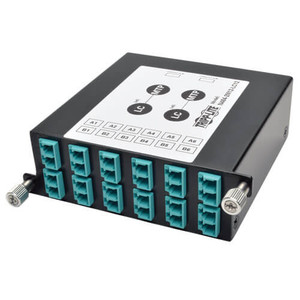

Eaton N484-2M12-LC12 - RCKMNT 40GBE-10GBE BRKOT CASS
$539.50
The N484-2M12-LC12 is a high-density 40 Gb to 10 Gb Breakout Cassette with (x12) LC connections to (x2) 12-Fiber, OM4, MTP/MPO connections. Designed specifically for use with N484-00U and N484-01U...
Eaton

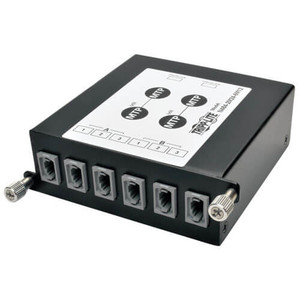

Eaton N484-2M24-6M12 - RCKMNT, 100/120GBE TO 40GBE BR
