Eaton N484-12M24 - RACKMOUNT, 100/120GBE PASS-THR
Write a Review
Write a Review
Eaton
Eaton N484-12M24 - RACKMOUNT, 100/120GBE PASS-THR
$327.60
- Brand
- Eaton
- SKU:
- N484-12M24
- Availability:
- Within 2 Days Shipping

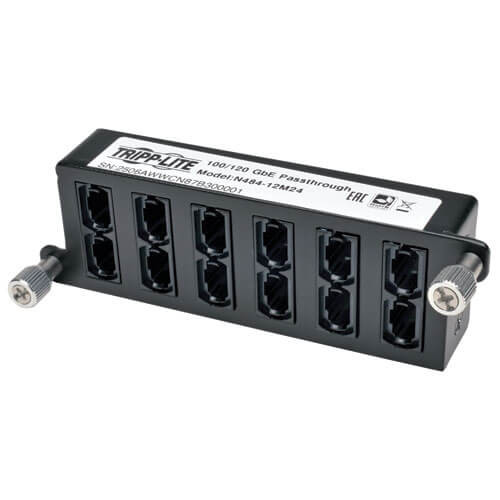

The N484-12M24 is a high-density 100/120 Gb Pass-Through Cassette with (x12) 24-Fiber MTP/MPO connections. Designed specifically for use with N484-00U and N484-01U chassis. Up to four cassettes per N484-01U or one cassette per N484-00U. Guaranteed compatibility when used with recommended cabling. Designed specifically for use with N846-Series cables. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy-duty 1.0mm cold-rolled steel.
- High Density Fiber Cassette for use with N484-00U and N484-01U chassis'
- 100/120Gb Pass-through Cassette, with (x12) 24-Fiber MTP/MPO connections
- Guaranteed compatibility when used with recommended cabling
- Designed specifically for use with N846-Series cables
- Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required
- Factory terminated connectors reduce the time and labor required of field connector terminations
- Housing made of heavy duty, 1.0mm Cold Rolled Steel
- Includes dust caps for unused ports
- N484-12M24 100/120GbE Pass-Through Cassette - (x12) 24-Fiber MTP/MPO ( Female )
- Quick Start Guide
OVERVIEW
| UPC Code | 037332187208 |
| Technology | Fiber |
PHYSICAL
| Color | Black |
| Shipping Dimensions (hwd / cm) | 5.99 x 13.00 x 3.71 |
| Shipping Weight (kg) | 0.22 |
| Unit Weight (kg) | 0.14 |
ENVIRONMENTAL
| Operating Temperature Range | -4° to 122°F (-20° to 50°C) |
CONNECTIONS
| Number of Ports | 12 |
| Side A - Connector 1 | 24-STRAND MTP/MPO (FEMALE) |
| Side B - Connector 1 | 24-STRAND MTP/MPO (FEMALE) |
STANDARDS & COMPLIANCE
| Product Compliance | RoHS; REACH |
WARRANTY & SUPPORT
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
