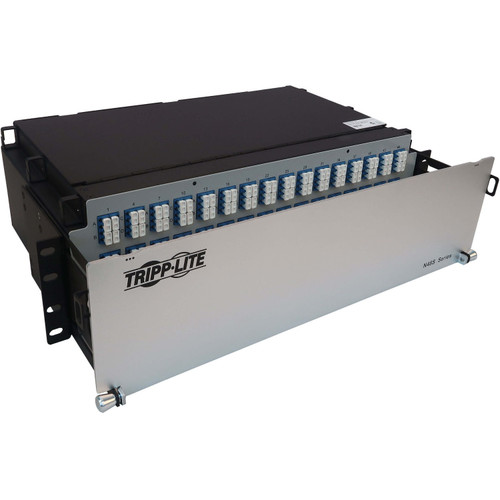

Eaton N48S-48M8L4-05 - X48 MTP/LCDPLX SNGLMDE PRLDPNL

3U patch panel comes preloaded with spools of singlemode fiber cable that allow you to extend the exact length required and store the excess out of sight.

Description
Preloaded Fiber Patch Panel, 3U - 48x (12F MTP/MPO-APC to 4x LC Duplex F/F) 8F Trunk Cables, OS2 Singlemode, 5 m (16.4 ft.)

Features

3U Panel Solution Comes with Cabling Preloaded to Cut Costs and Save Time
All necessary cabling is included with this preloaded fiber panel, coiled inside and ready for immediate use. The aluminum 3U chassis features 48 MTP/MPO-APC to LC Duplex 8-fiber singlemode trunk cables, all five meters (16.4 feet) in length to make management easy. The panel opens to provide easy access to stored cables. Use only as much cabling as you need. The remainder stores inside the chassis to eliminate cable clutter, allow better airflow through the rack and make equipment maintenance and replacement easier. The cables and panels have labels to help with organization. You also avoid the expense and effort of custom cabling. The flexibility in cable length lets you reuse the cables if equipment is moved.

Integrates Equipment to Meet Current Connectivity Needs
This preloaded slack-free panel helps integrate your 10 Gb equipment with 40 Gb networks or 25 Gb equipment with 100 Gb networks in a simple, elegant and flexible manner. The N48S-48M8L4-05 mounts in just 3U of space in an EIA-standard 19-inch rack.

• Aluminum
• PVC

• N48S-48M8L4-05 Preloaded Fiber Patch Panel
• 48 x MTP/MPO-APC to LC Duplex Trunk Cables, 5 m (16.4 ft.)
• Installation Guide

OVERVIEW

• Technology MTP/MPO; Singlemode
• Optical Mode OS2; SM
• Panel Cable Number 48
• Panel Cable Length (m) 5
• Fiber Panel Ports (192) LC Duplex; (48) MTP/MPO
• Mode Type Singlemode

Firmware / Software Docs

• Offset Ports No

PHYSICAL

• Cable Jacket Rating OFNP
• Cable Outer Diameter (OD) 2.9MM
• Clad Diameter (micron) 125
• Core Diameter (micron) 9
• Primary Coating Diameter (micron) 245
• Number of Fibers 24
• Cable Length (ft.) 16.4
• Cable Length (m) 5.00
• Cable Length (in.) 196.9
• Minimum Bend Radius 20MM (DYNAMIC); 10MM (STATIC)

COMMUNICATIONS

• Network Compatibility 10 Gbps; 40 Gbps; 100 Gbps; 400 Gbps
• Wavelength 1310nm; 1550nm
• Attenuation @ 1310NM 0.36 dB/KM
• Attenuation @ 1550NM 0.22 dB/KM
• Insertion Loss MTP/MPO: 0.70dB; LC: 0.30dB

• RoHS
• REACH
