Eaton N836-05M - 5M LC/MINI-LC 50/125 LSZH,10GB

$37.18

Current Stock:

Quantity:

Adding to cart… The item has been added

Trionics Distributor of Tripp Lite By Eaton,

MPN: N836-05M

Tech Specs

Specifications

Manufacturer Part Number	N836-05M
Brand Name	Tripp Lite
Product Model	N836-05M

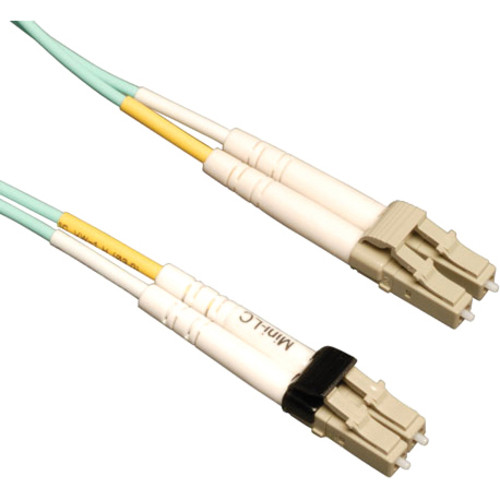

Product Name	N836-05M Fiber Optic Duplex Patch Cable
Marketing Information	Tripp Lite introduces it's new, Mini-LC to LC, OM3 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables, for use with 10Gb Ethernet applications, utilizing mini SFP transceivers, such as Brocade FC8-64 High Density 64-port Fibre Channel Blade. These new technology, 50/125um, mini-LC/LC Fiber Optic cables, provide nearly three times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Singlemode cable, at a much reduced cost. LOMMF cable allows 10Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers. Tripp Lite warrants this product to be free from defects in material and workmanship for Life.
Product Type	Network Cable

Technical Information

Cable Type	Fiber Optic
Cable Characteristic	Patch Cable
Fiber Optic Mode	Multi-mode
Core/Cladding Diameter	50/125 µm
Cable Length	16.40 ft
Connector Type on First End	LC Network - Male
Connector on First End Details	2 x LC Network - Male
Connector Type on Second End	Mini-LC Network - Male
Connector on Second End Details	2 x Mini-LC Network - Male
Jacket Type	LSZH
Device Supported	Network Device

Physical Characteristics

Product Color

Aqua

Miscellaneous

Compatibility	Brocade FC8-64 Blade
Environmentally Friendly	Yes
Environmental Certification	RoHS
Country of Origin	China

Warranty

Limited Warranty

Lifetime
