Eaton N844-05M-12-P - 5M,40GB,MTP/MTP,50/125,PLENUM

$215.28

Current Stock:

Quantity:

Adding to cart… The item has been added

Trionics Distributor of Tripp Lite By Eaton,

MPN: N844-05M-12-P

Tech Specs

Specifications

Manufacturer Part Number	N844-05M-12-P
Brand Name	Tripp Lite
Product Series	N844
Product Model	N844-05M-12-P

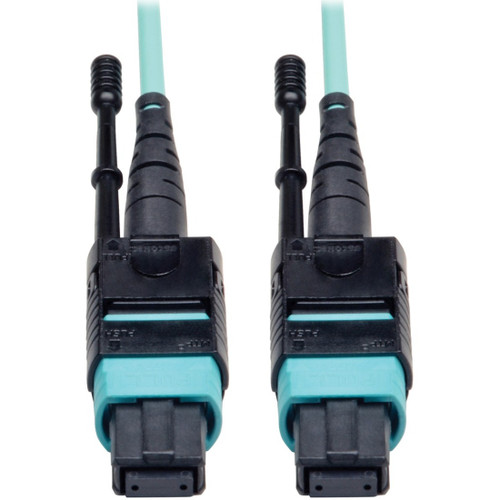

Product Name	5 Meter MTP / MPO Patch Cable, 12 Fiber, 40GbE Aqua OM3 Plenum
Marketing Information	Tripp Lite MTP/MPO to MTP/MPO fiber patch cables allow high-density connections between network equipment in telecommunication rooms. They use a simple push-pull latching mechanism for easy and intuitive insertion and removal. The MTP/MPO connector is approximately the same size of a SC connector but since it can accommodate 12 fibers, it provides up to 12 times the density, thereby offering savings in circuit card and rack space. N844 series cables are manufactured using laser-optimized, 50/125, OM3 multimode cable, and support speeds up to 40GbE.
Product Type	Network Cable

Technical Information

Cable Type	Fiber Optic
Cable Characteristic	Patch Cable
Fiber Optic Mode	Multi-mode
Core/Cladding Diameter	50/125 µm
Cable Length	16.40 ft
Connector Type on First End	MTP Network - Female
Connector on First End Details	1 x MTP Network - Female
Connector Type on Second End	MTP Network - Female
Connector on Second End Details	1 x MTP Network - Female
Jacket Type	Plenum
Device Supported	Network Device

Physical Characteristics

Product Color

Aqua

Miscellaneous

Environmentally Friendly	Yes
Environmental Certification	RoHS
Country of Origin	China

Warranty

Limited Warranty

Lifetime
