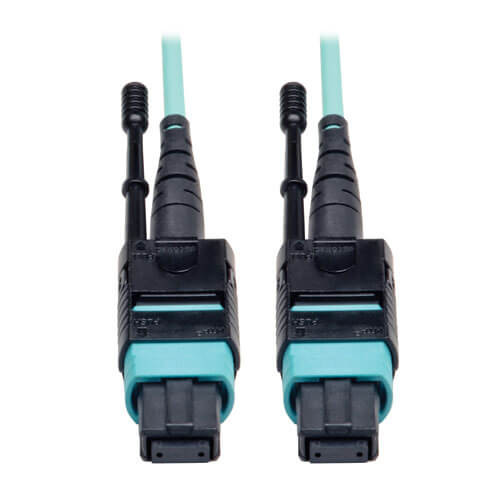

Eaton N844-10M-12-P - 10M,40GB,MTP/MTP,50/125,PLENUM

Eaton N844-10M-12-P - 10M,40GB,MTP/MTP,50/125,PLENUM

Write a Review

$294.22

Brand: Eaton
SKU:: N844-10M-12-P
UPC:
Availability:: Within 2 Days Shipping

Current Stock:

Quantity:

Adding to cart… The item has been added

Description
0 Reviews

MTP / MPO Push-Pull Connectors for Quick Fiber Optic connections
Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand
12 times the density of SC style connectors
High Density design cuts down on installation costs
50/125 OM3 Rated Multimode Fiber, 850nm
Plenum rated jacket
Unique cable ID label for Quality Control and Traceability
Each cable 100% tested for low insertion loss and back reflection
Test data supplied with each cable
Custom lengths available

10 Meter MTP / MPO Patch Cable, 12 Fiber, 40GbE Aqua OM3 Plenum

OVERVIEW

UPC Code	037332173751
Technology	Multimode
Optical Mode	OM3

PHYSICAL

Cable Jacket Color	Aqua
Connector Color	Aqua; Black
Cable Jacket Material	PVC
Cable Jacket Rating	OFNP
Clad Diameter (microns)	125
Core Diameter (microns)	50
Number of Fibers	12
Cable Length (m)	10.00
Minimum Bend Radius	20 mm (Dynamic); 10 mm (Static)
Shipping Dimensions (hwd / cm)	17.78 x 22.86 x 1.27
Shipping Weight (kg)	0.09
Fiber Cable Length	10M (32.8 ft)

ENVIRONMENTAL

Operating Temperature Range	-4° to 140°F (-20° to 60°C)
Storage Temperature Range	-4° to 140°F (-20° to 60°C)
Operating Humidity Range	5% to 85% RH, Non-Condensing
Storage Humidity Range	35% to 65% RH, Non-Condensing

COMMUNICATIONS

Network Compatibility	40 Gbps; 100 Gbps; 400 Gbps
Attenuation @ 850NM	3.0 dB/km
Insertion Loss	? 0.35 dB

CONNECTIONS

Side A - Connector 1	12-STRAND MTP/MPO (FEMALE)
Side B - Connector 1	12-STRAND MTP/MPO (FEMALE)
Endface Polish	PC

FEATURES & SPECIFICATIONS

Push/Pull Tabs

Yes

STANDARDS & COMPLIANCE

Product Compliance

RoHS; REACH

WARRANTY & SUPPORT

Product Warranty Period (Worldwide)

Lifetime limited warranty
