Eaton P036-L10 - 10FT C20 TO LOCKING C19 PWRCRD

Write a Review

$35.15

Brand: Eaton
SKU:: P036-L10
UPC:
Availability:: Within 2 Days Shipping

Current Stock:

Quantity:

Adding to cart… The item has been added

Description
0 Reviews

C20 to C19 Power Cable for Network Devices That Require a Heavy-Gauge Connection

This rugged cord features 12 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. It can be used to connect a server, router, switch, blade server enclosure or other network device to a UPS system or PDU. It is also an ideal replacement or upgrade from the standard power cord provided by the device's manufacturer. The 10-ft. (3.05 m) length allows you great flexibility in placing equipment with respect to the power outlet.

Locking C19 Connector Helps Prevent Accidental Disconnection and Expensive Downtime

Having a cable come loose accidentally can mean the loss of power and costly downtime. The locking C19 connector helps you avoid such danger, protecting critical equipment by maintaining a secure link without failure. The locking cable is also invaluable when moving equipment in a rack or removing equipment from tight areas, ensuring the power cord always stays connected.

Lifetime Warranty

The P036-L10 is backed by a lifetime warranty, ensuring reliability and performance.

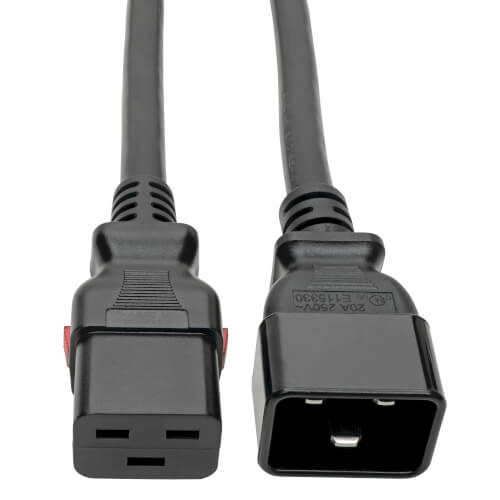

P036-L10 C20 to C19 Power Cable, Locking C19 Connector, 10-ft. (3.05 m), Black

OVERVIEW

UPC Code	037332218322
Device Compatibility	Server; Router; Network Switch; UPS; PDU
Country/Region	North America

INPUT

Maximum Input Amps	20
Voltage Compatibility (VAC)	100-250

PHYSICAL

Plug Color	Black
Cable Jacket Color	Black
Cable Jacket Material	PVC
Cable Jacket Rating	VW-1
Power Cord Jacket Type	SJT
Cable Outer Diameter (OD)	10.8mm
Number of Conductors	3
Wire Gauge (OD - mm²)	3.31
Cable Length (m)	3.05
Shipping Dimensions (hwd / cm)	32.51 x 21.82 x 1.27
Shipping Weight (kg)	0.68

ENVIRONMENTAL

Operating Temperature Range	-4° to 221°F (-20° to 105°C)
Storage Temperature Range	-4° to 221°F (-20° to 105°C)
Operating Humidity Range	0% to 65% RH
Storage Humidity Range	0% to 65% RH

CONNECTIONS

Side A - Connector 1	IEC-320-C20
Side B - Connector 1	IEC-320-C19 - LOCKING

FEATURES & SPECIFICATIONS

High Voltage	Yes
Locking Plug	Yes

STANDARDS & COMPLIANCE

Product Certifications	CSA (Canada); cUL Listed; UL Listed
Product Compliance	RoHS; REACH

WARRANTY & SUPPORT

Product Warranty Period (Worldwide)

Lifetime limited warranty
